SPECIFICATIONS

Brand Name: YSIDO

Choice: yes

ESC: 60A

For Vehicle Type: Cars

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

MOTOR: 3650//3660

Material: Metal

Origin: Mainland China

RC Parts & Accs: Motors

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Technical parameters: value 2

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

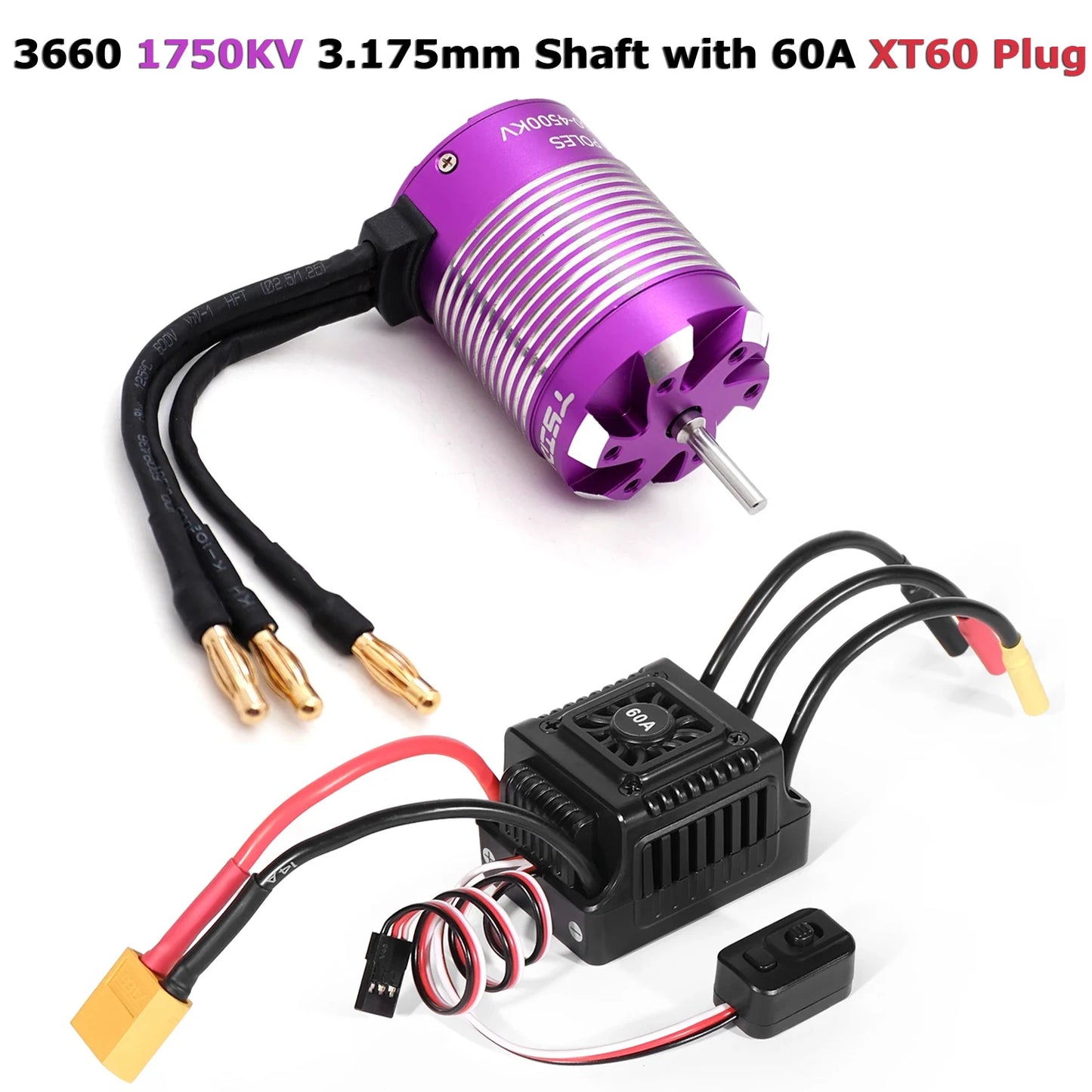

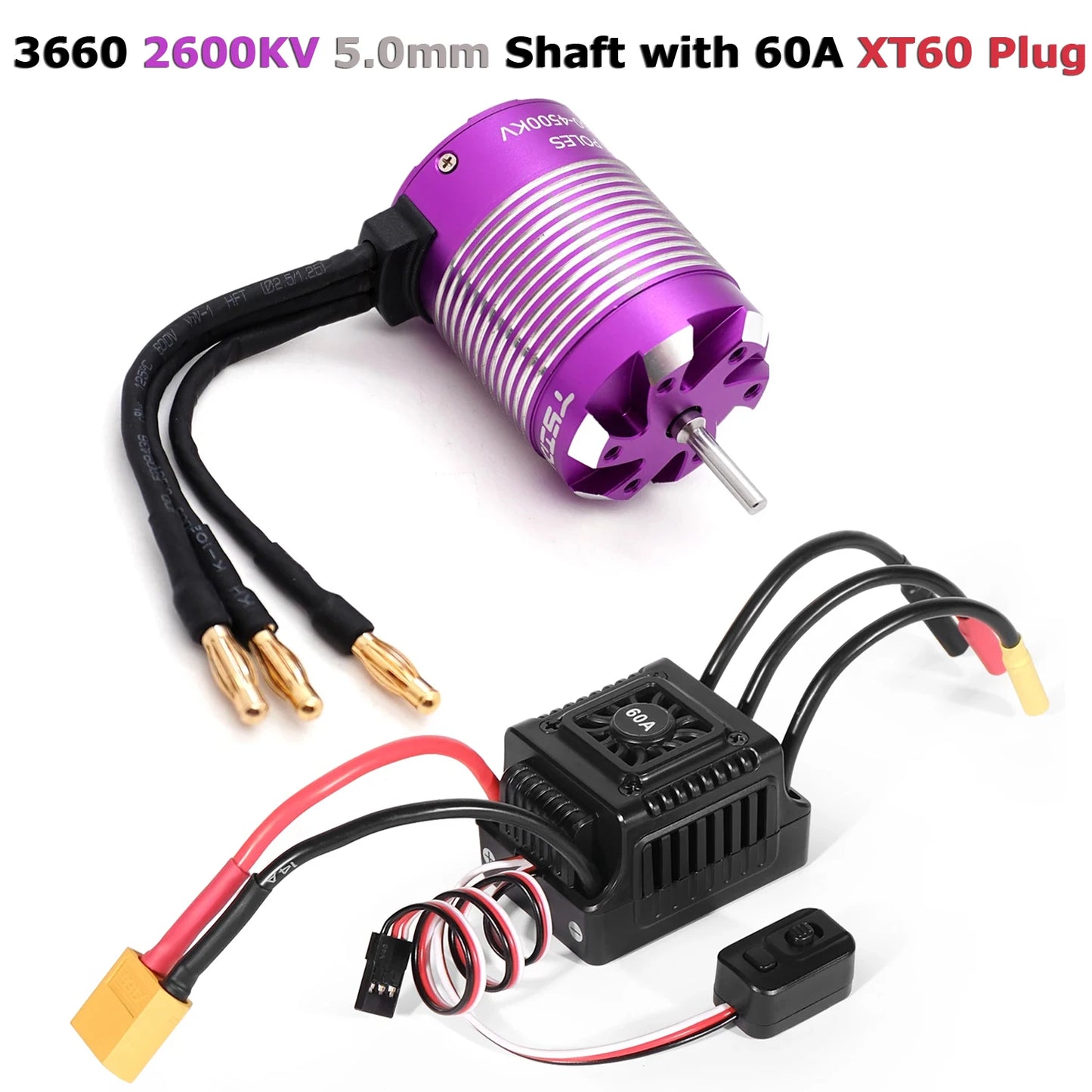

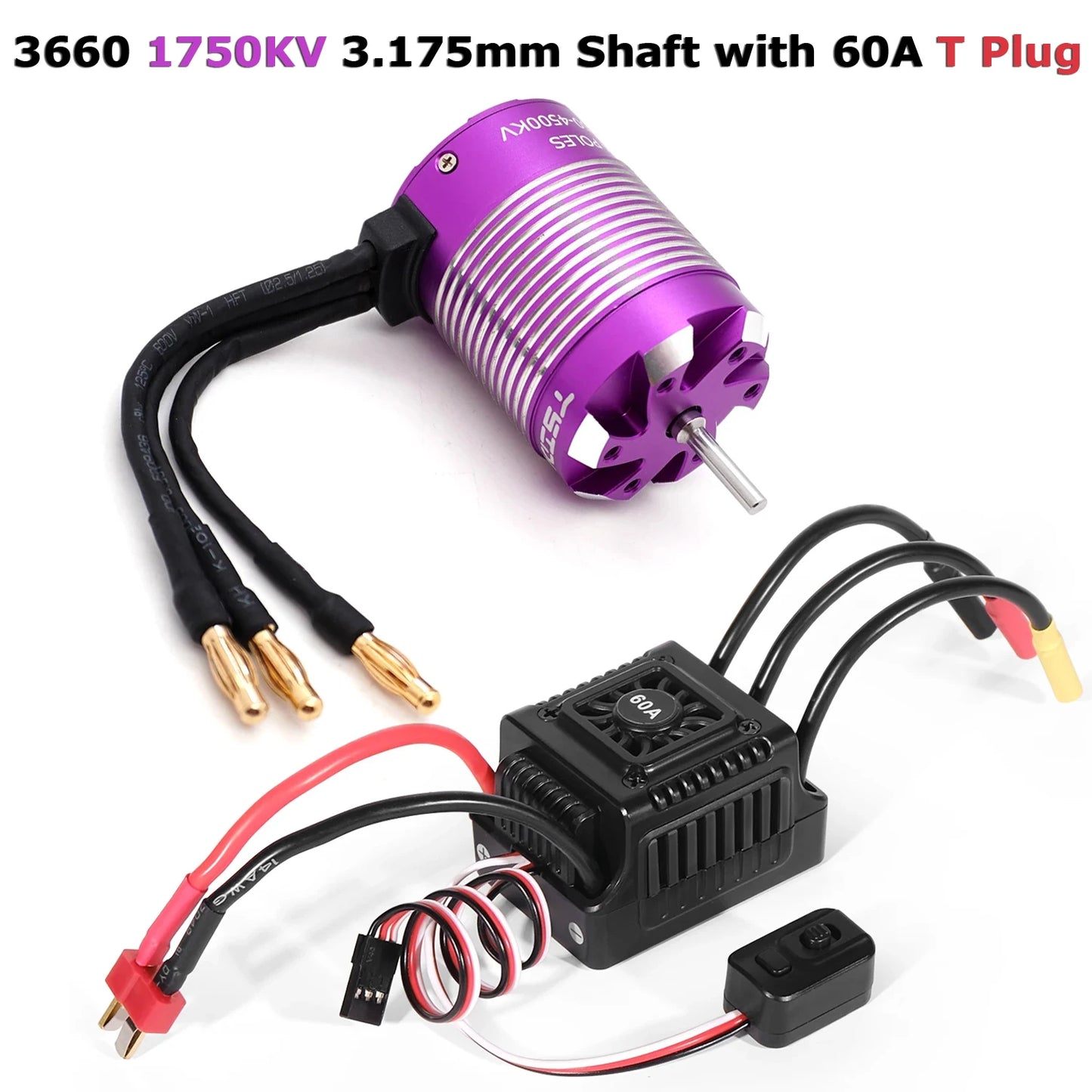

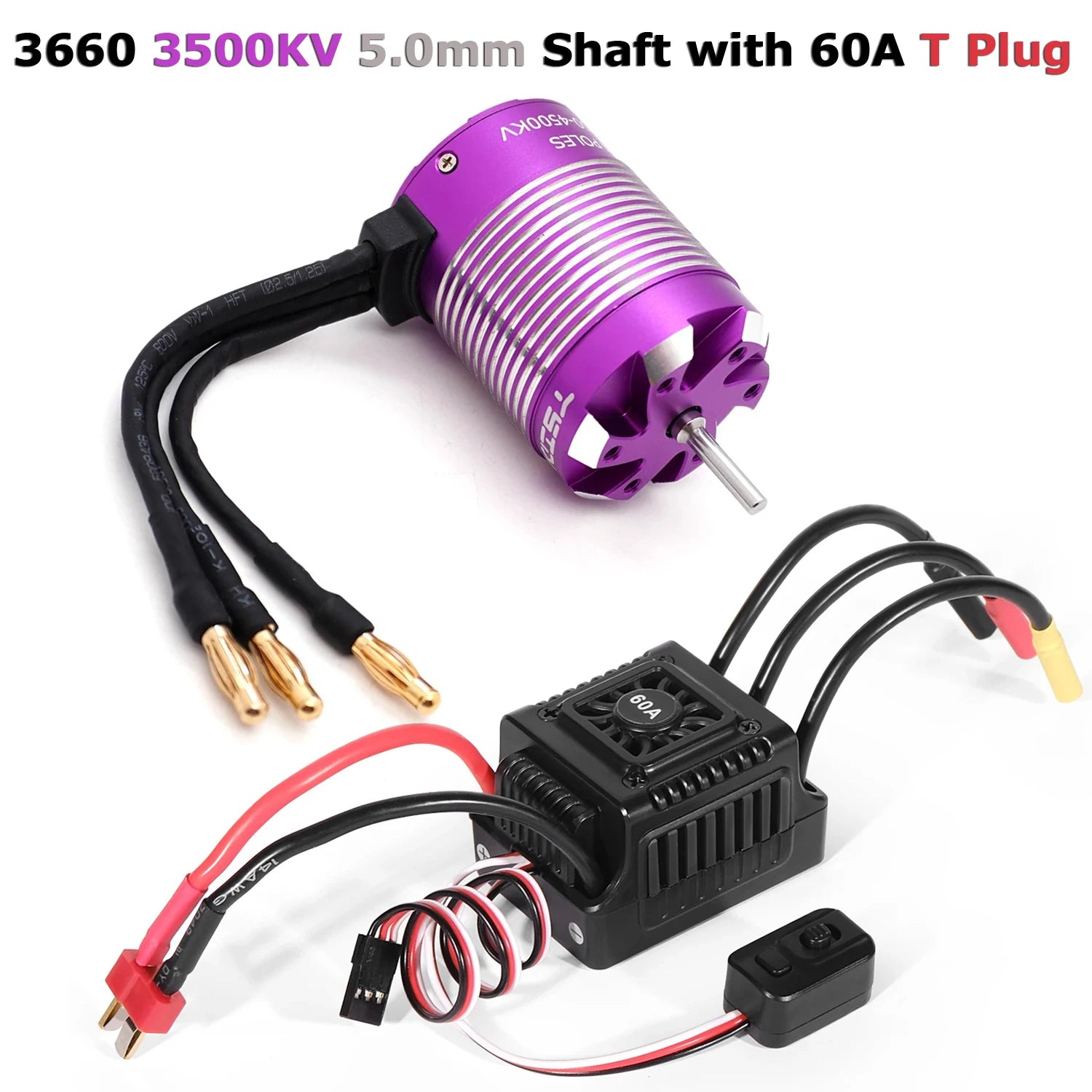

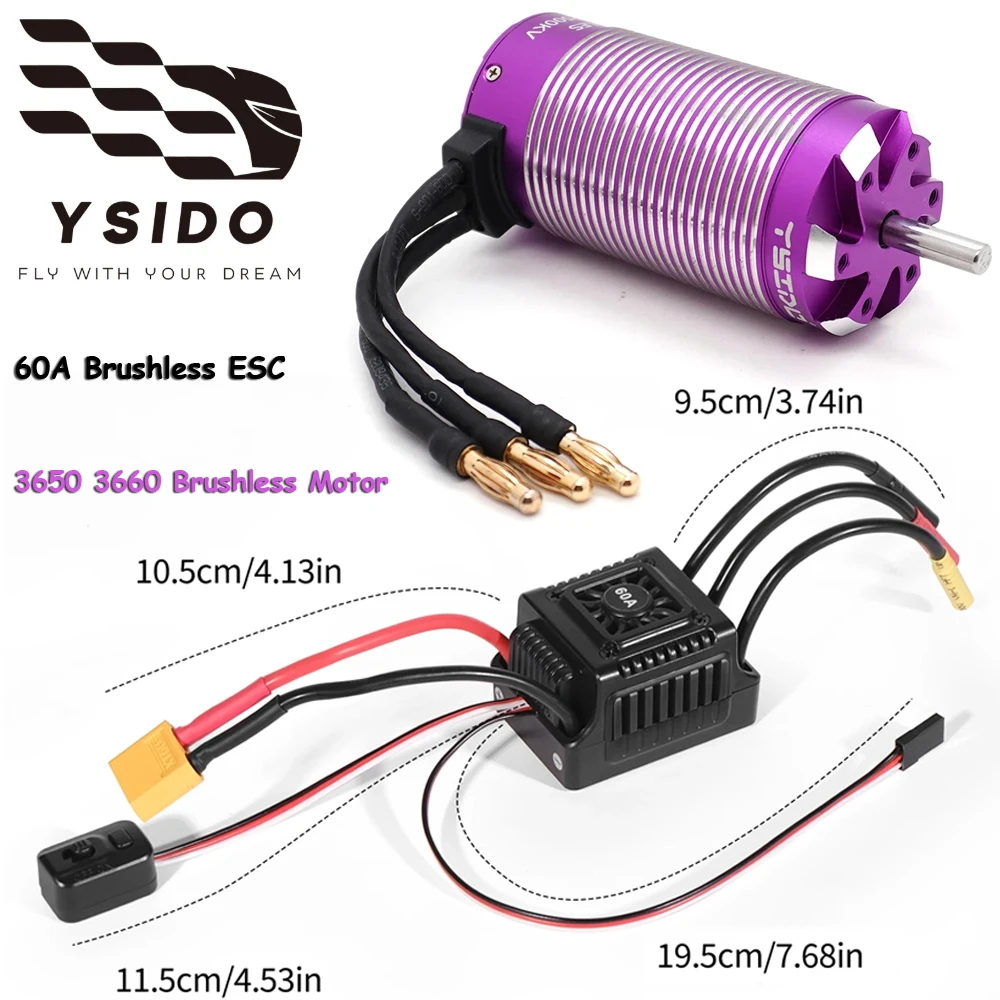

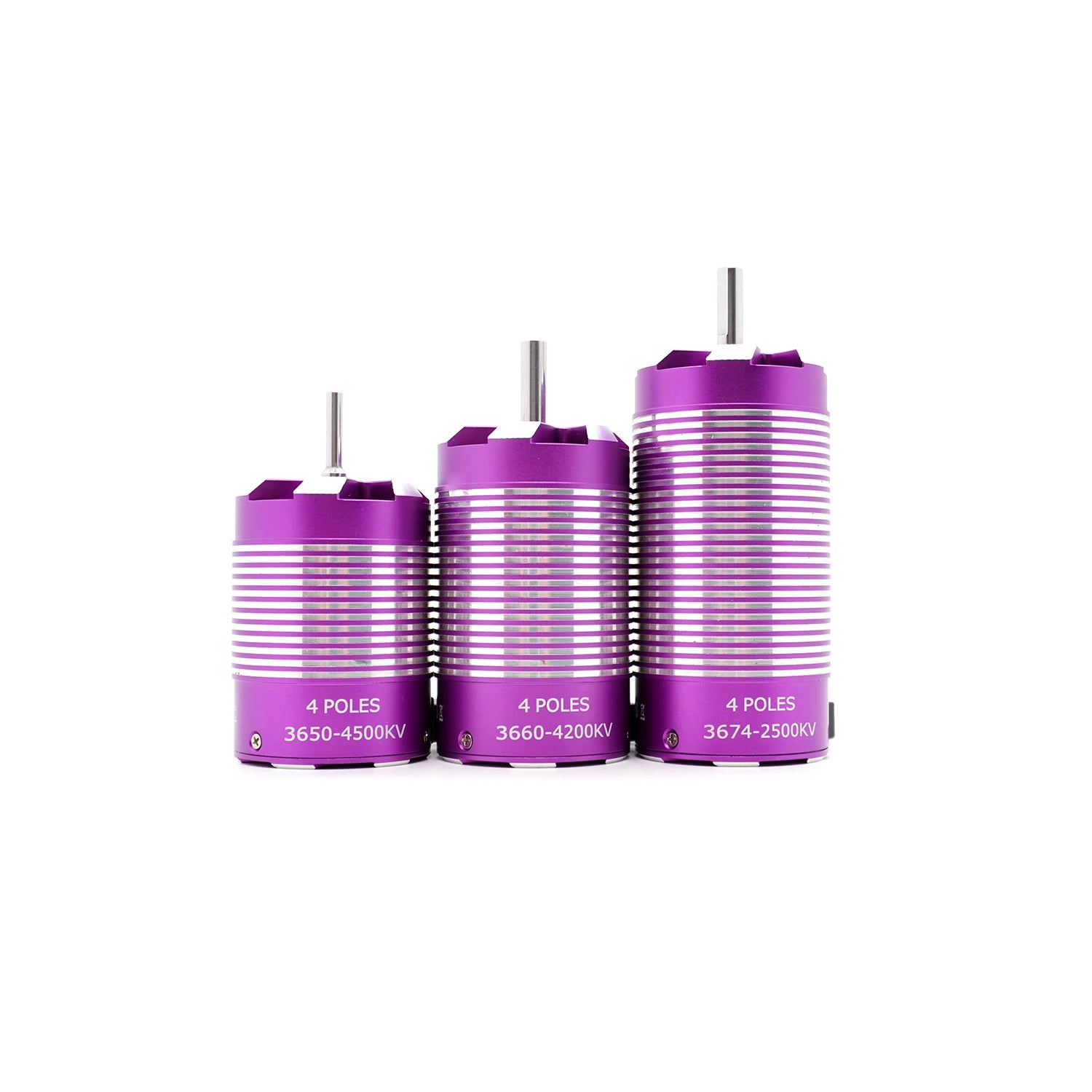

YSIDO 3650 3660 Brushless Motor with 60A ESC Combo 3.175/5.0mm Shaft For 1/10 Tamiya Traxxas Wltoys RC Racing Off-Road Truck Car

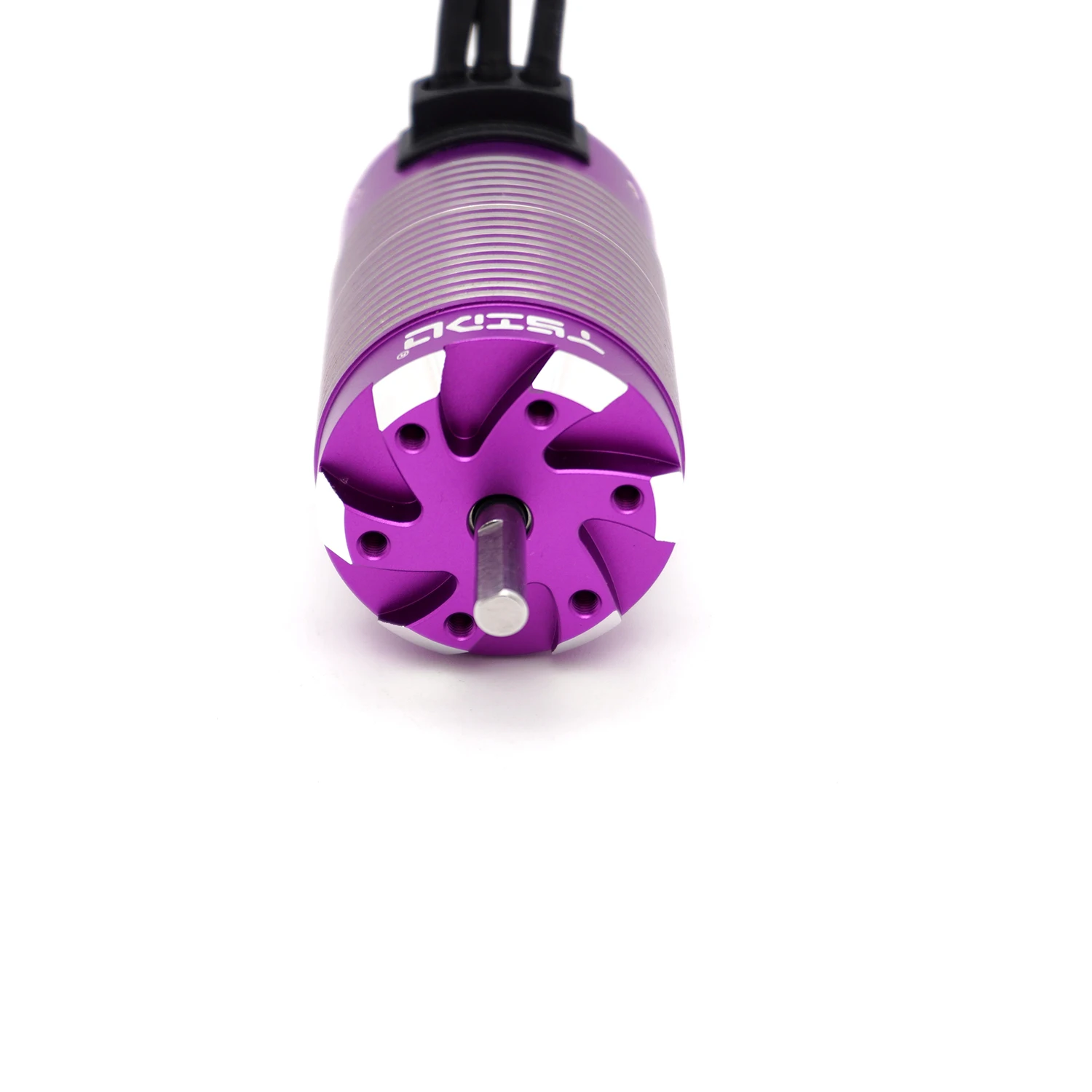

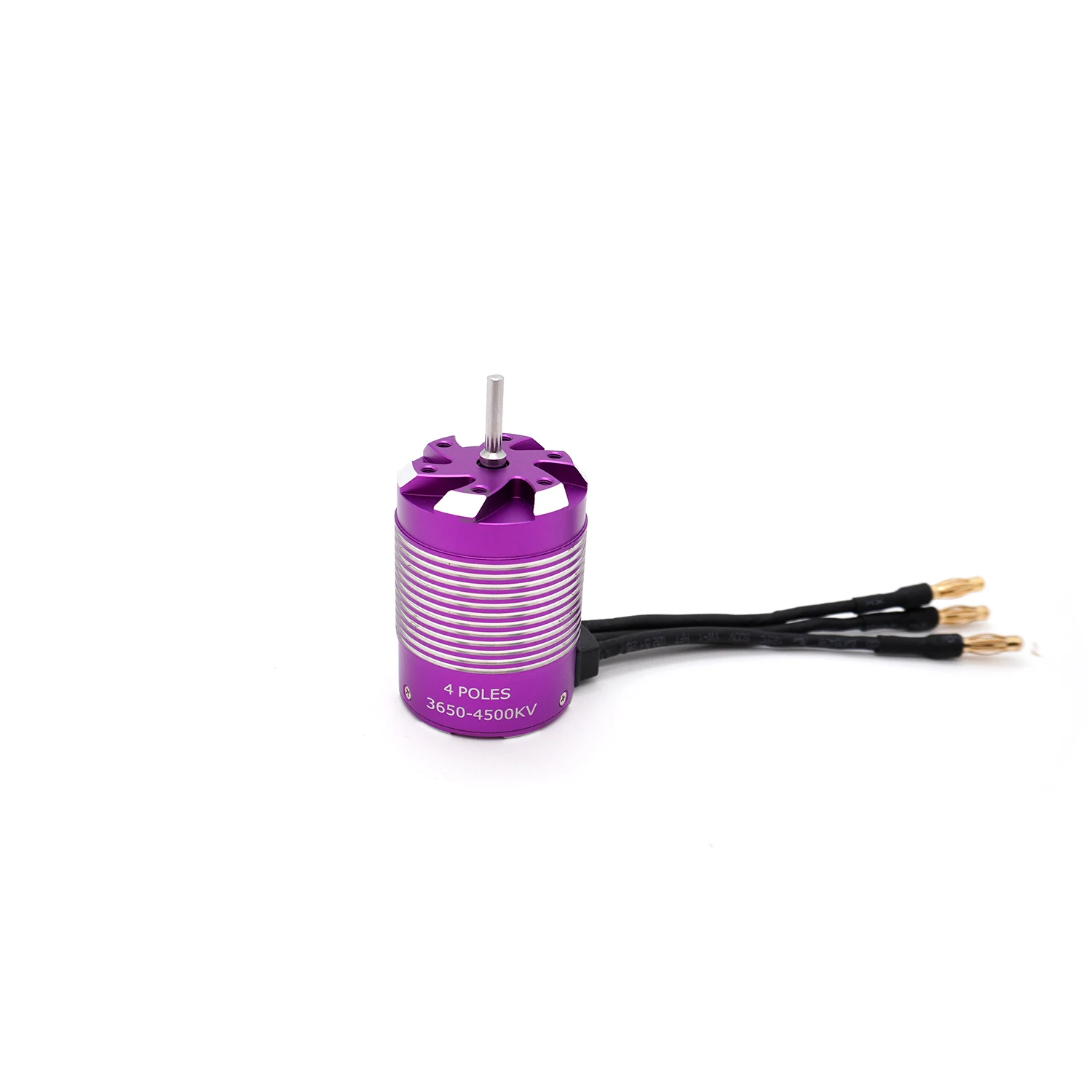

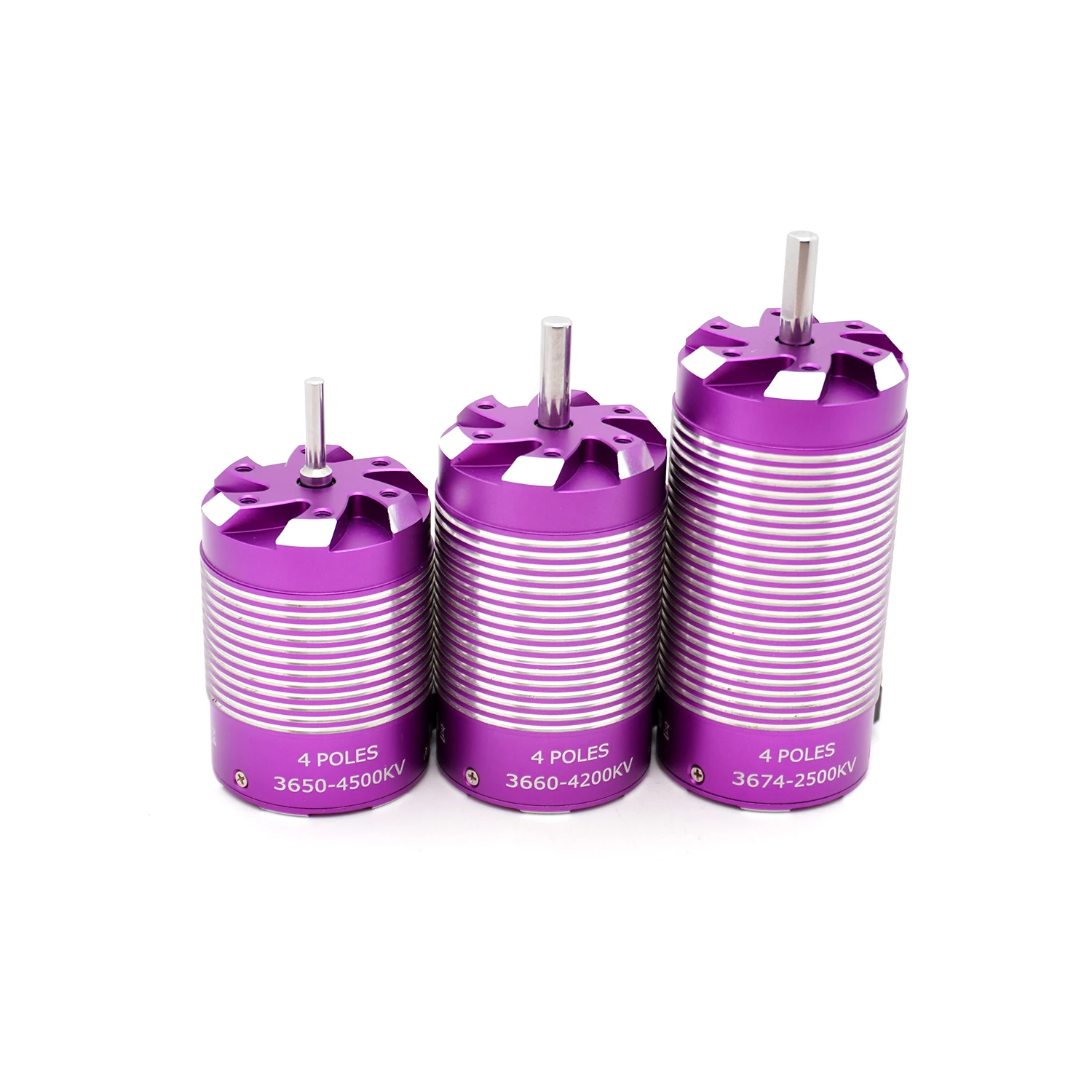

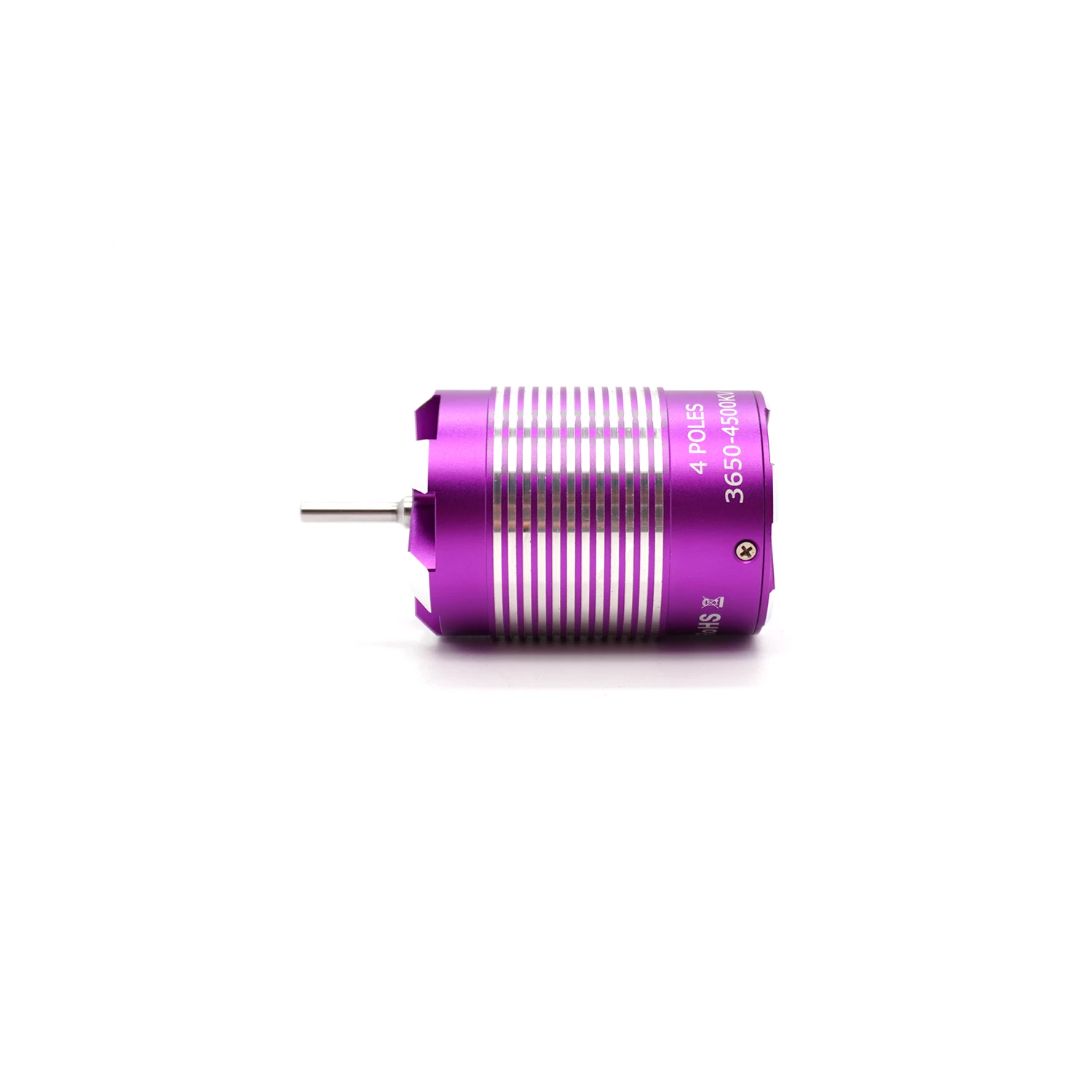

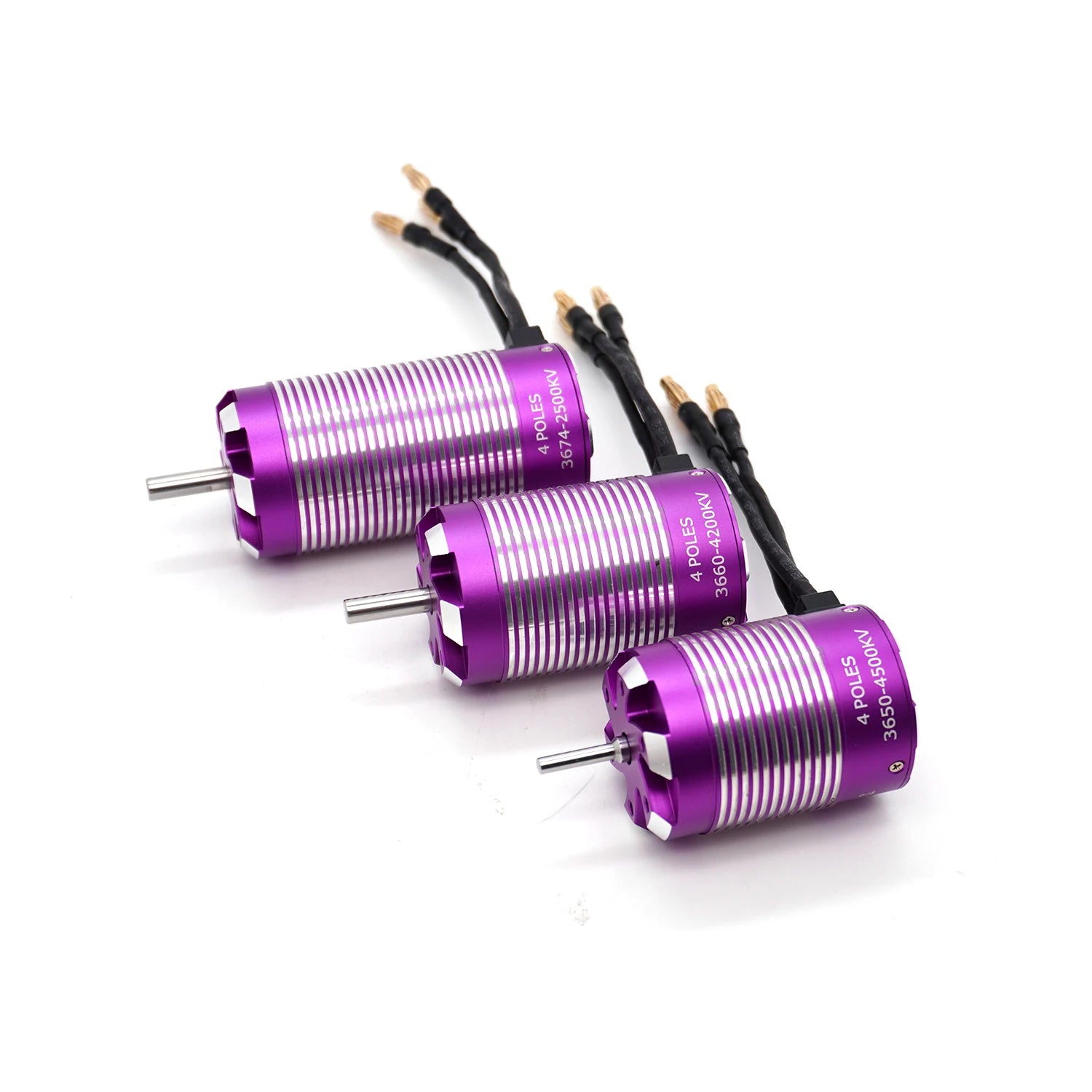

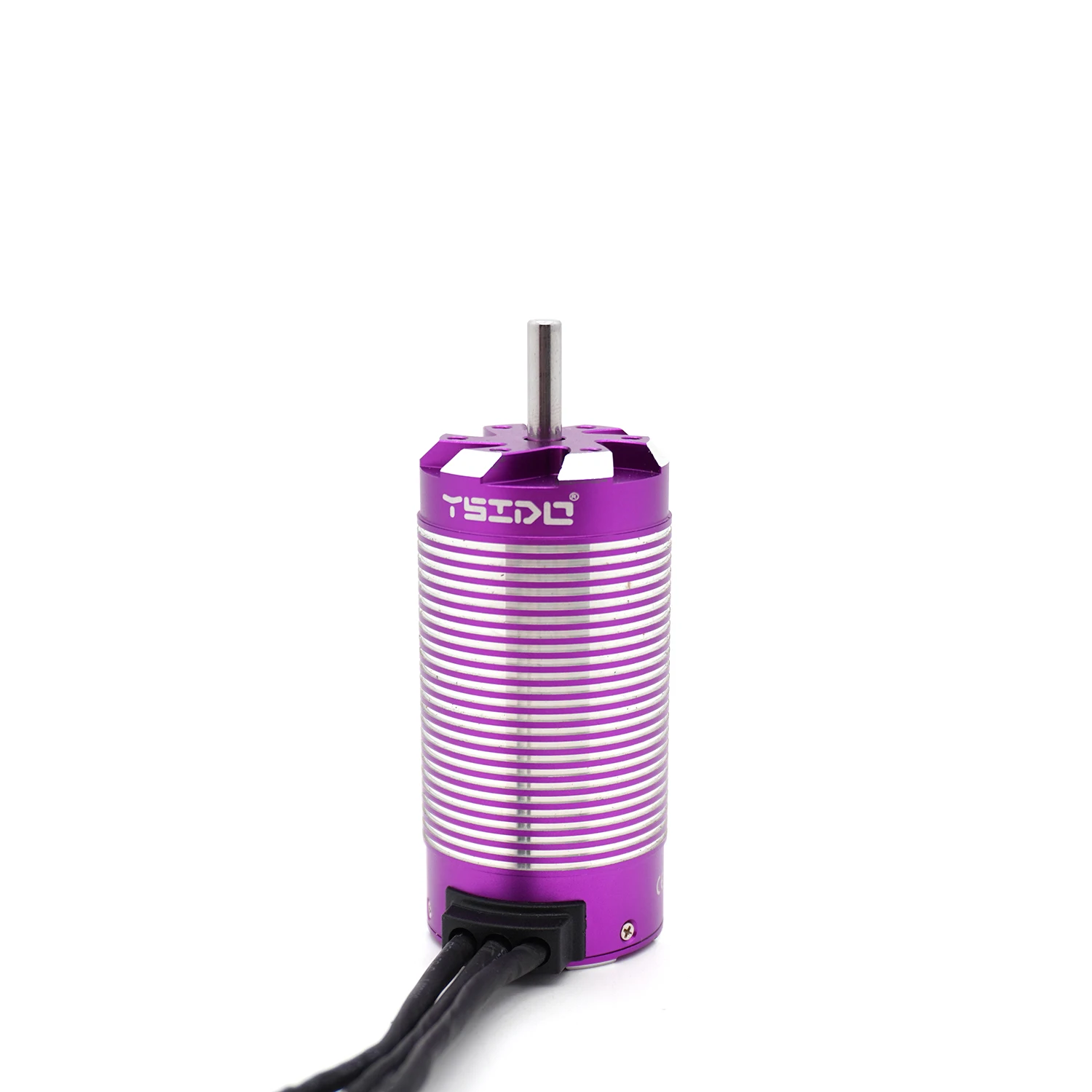

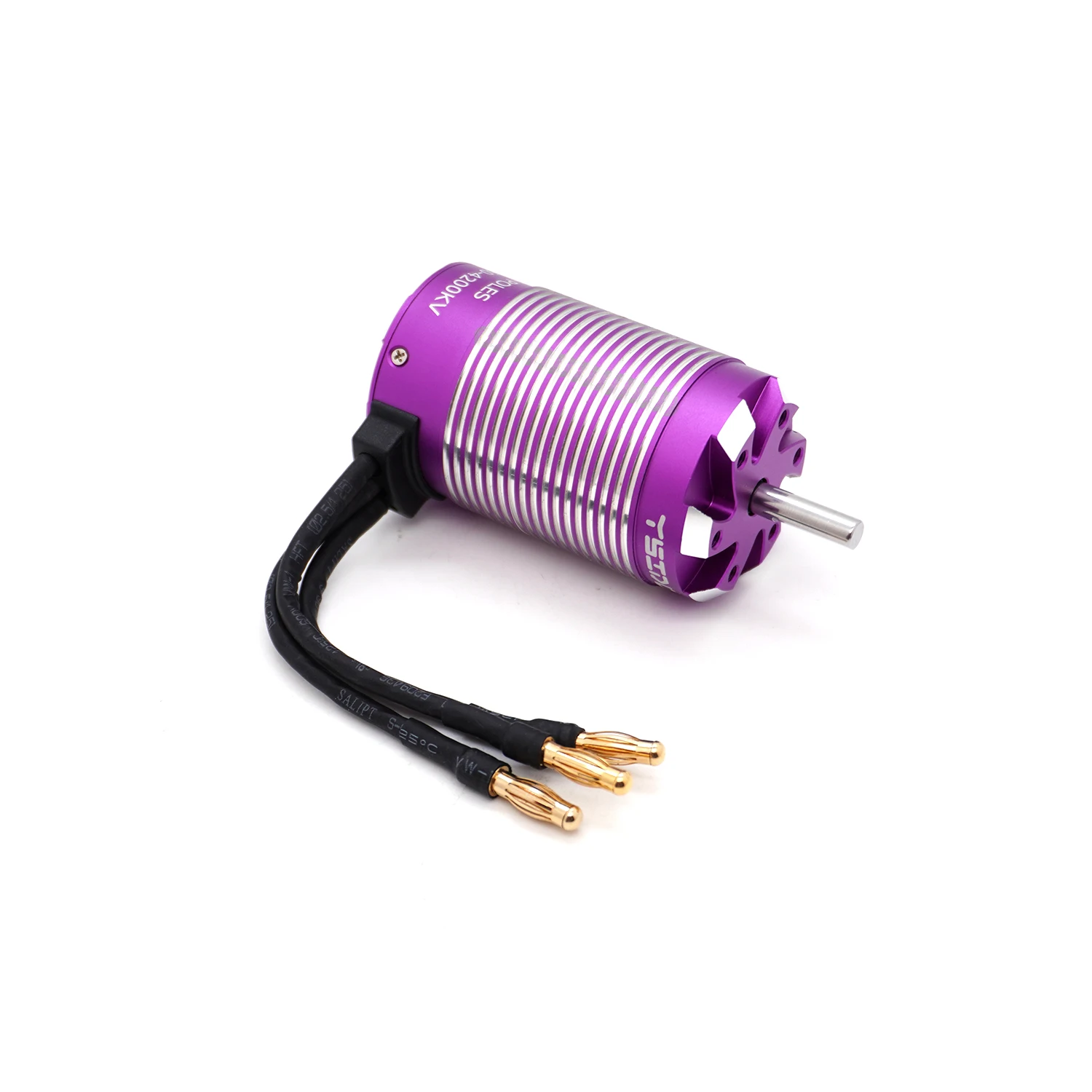

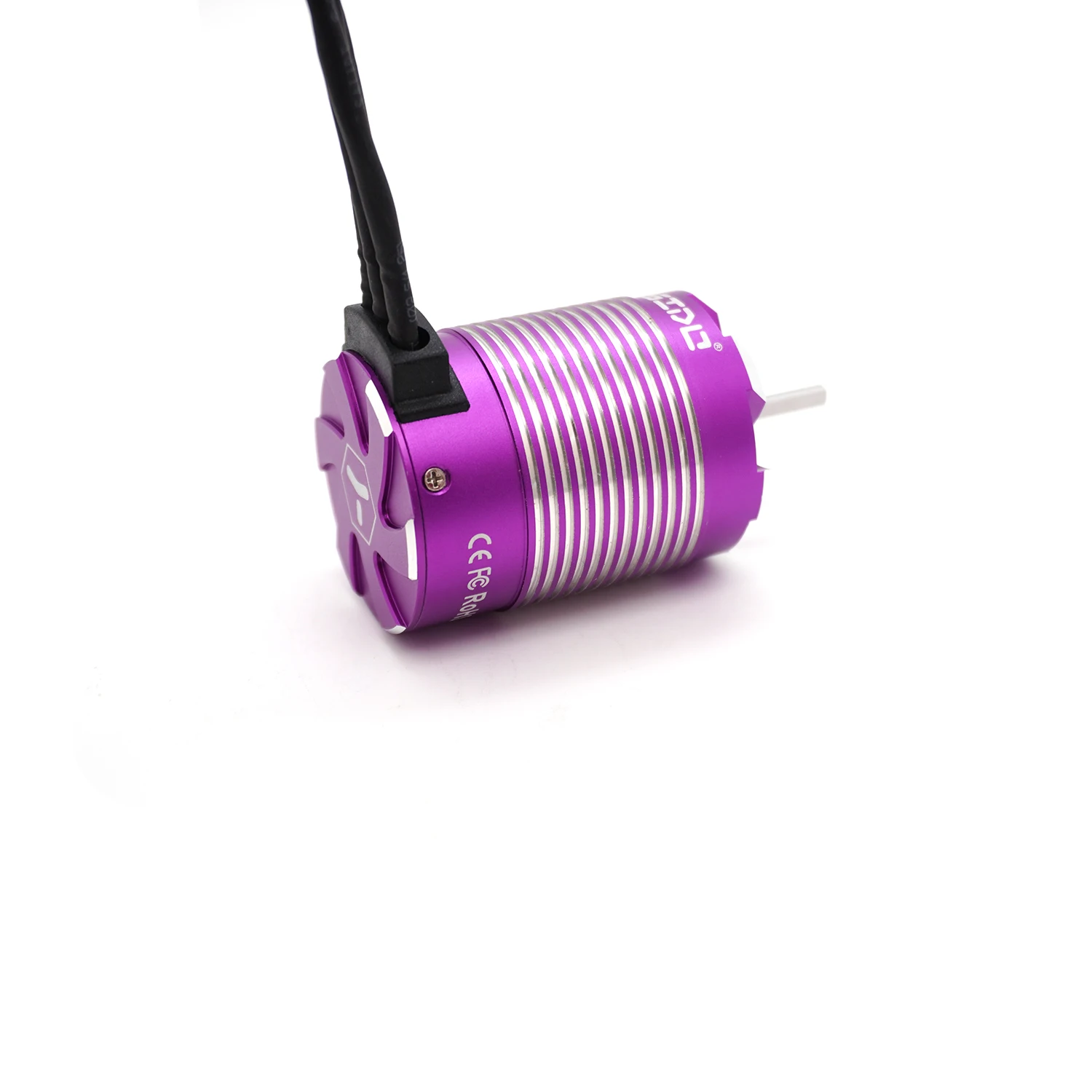

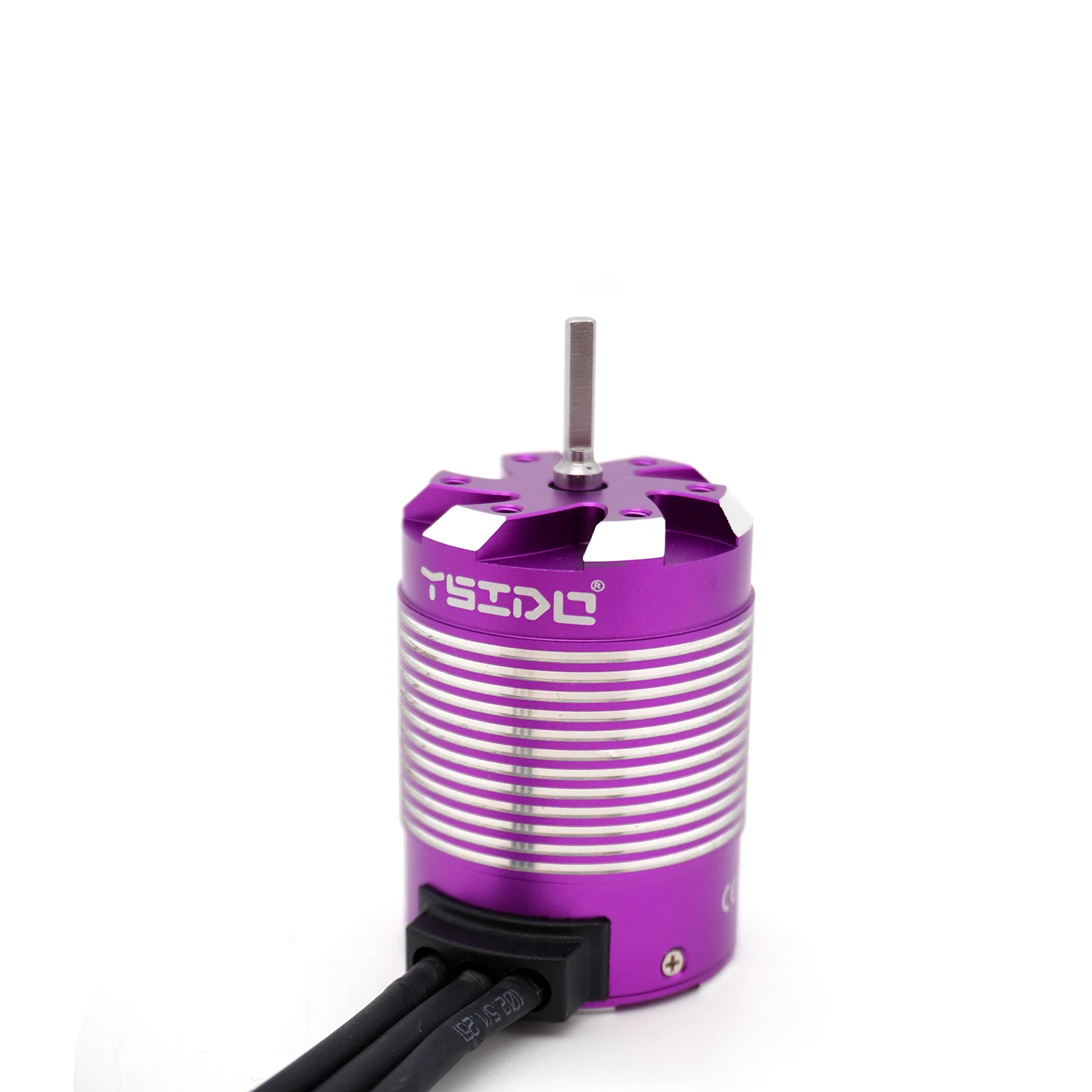

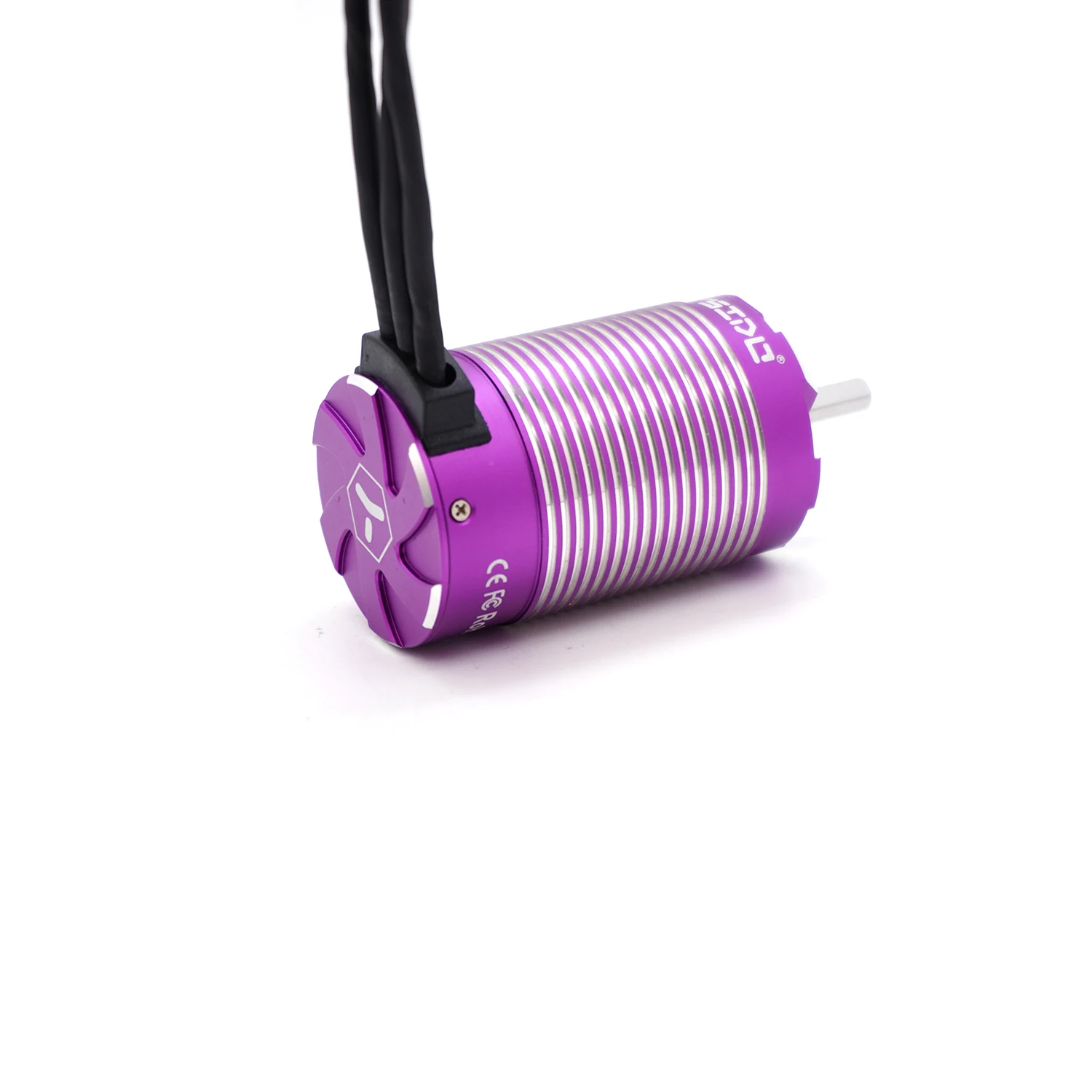

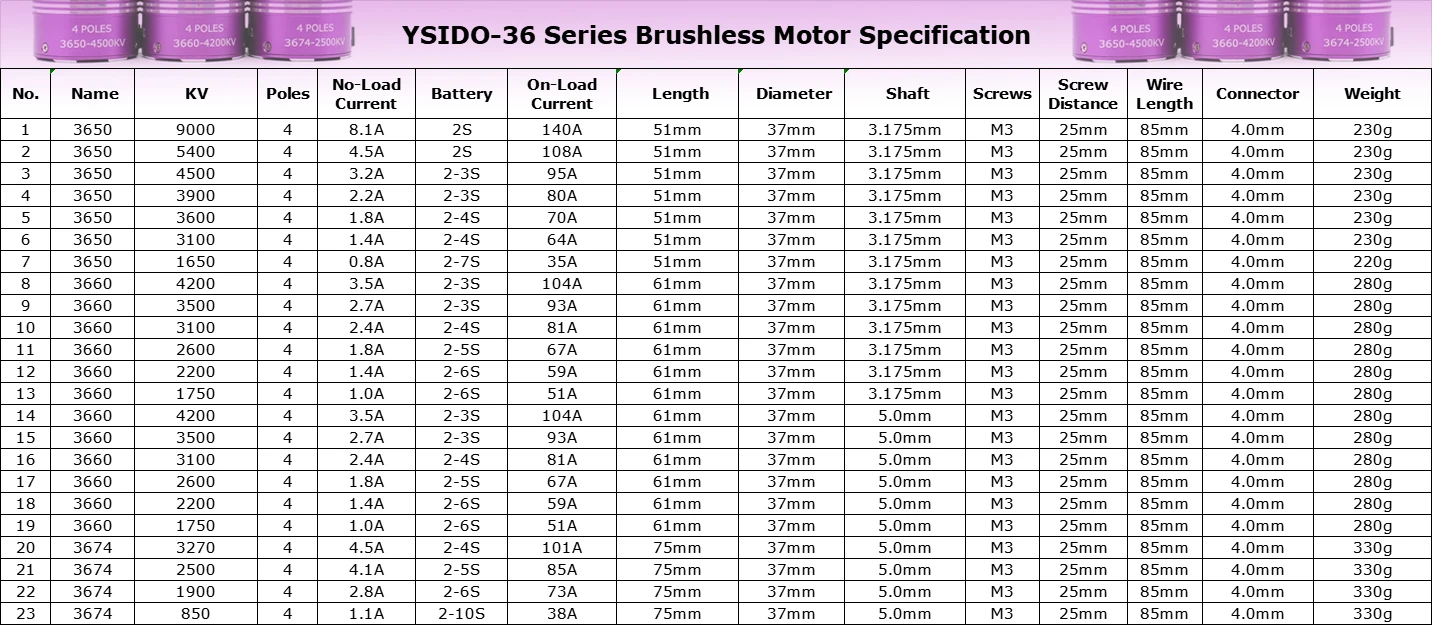

3650 Brushless Sensorless Motor

KV(RPM/Volt):3900KV /3600KV /3100KV /1650KV Optional

Rotor poles: 4

Battery: 2-7S

Diameter: 37mm

Length: 51mm

Shaft: 3.175mm

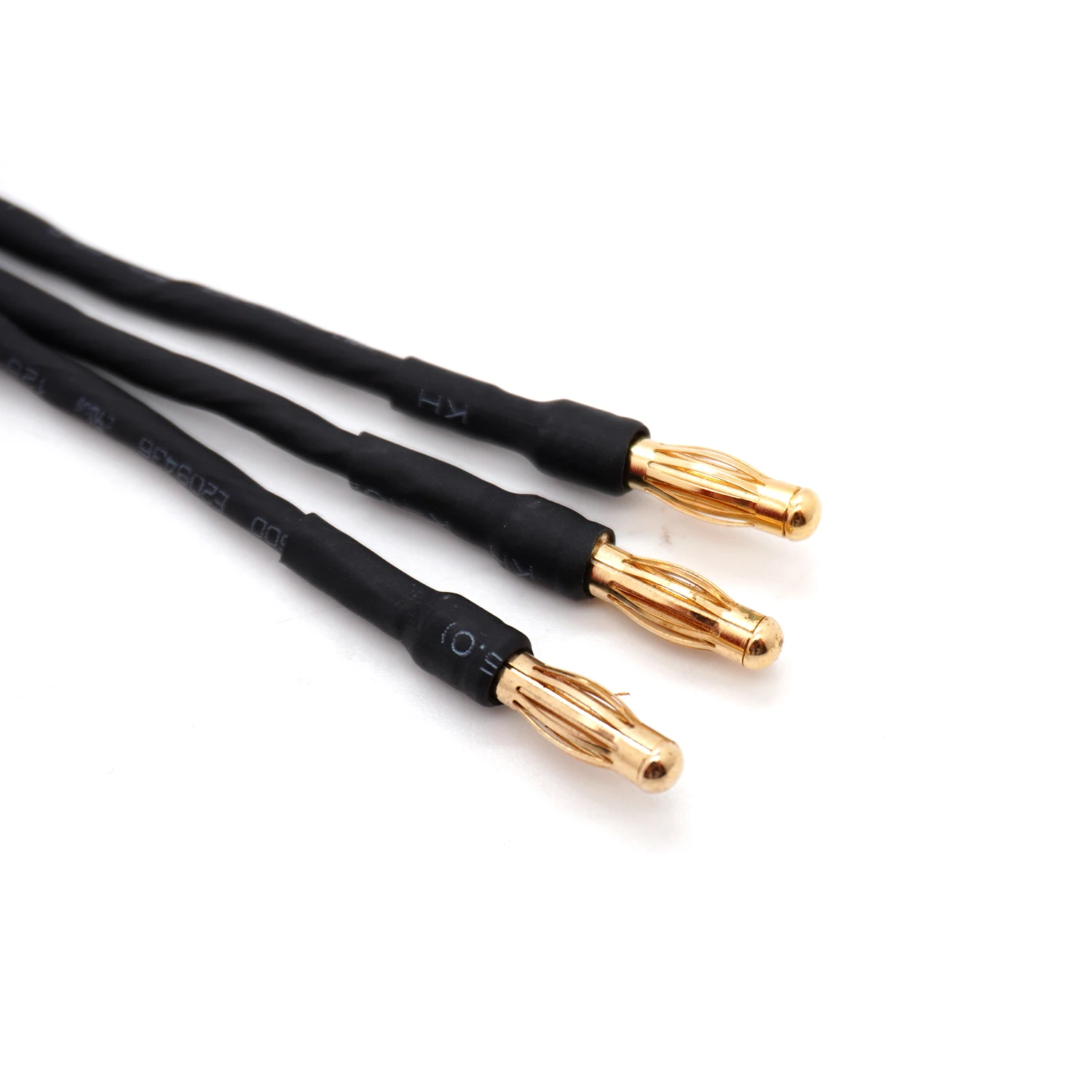

Connector: 4.0mm gold

Weight:230g

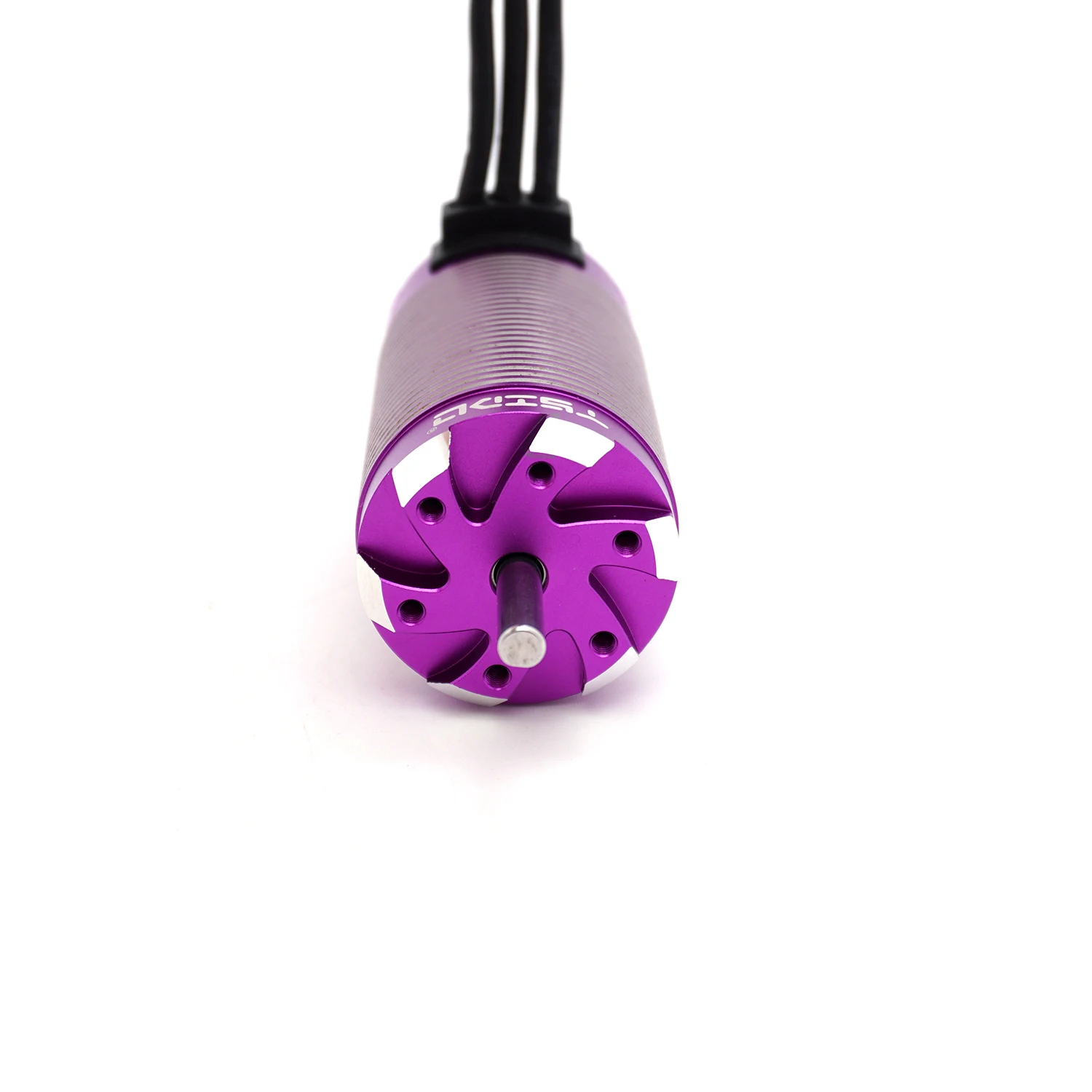

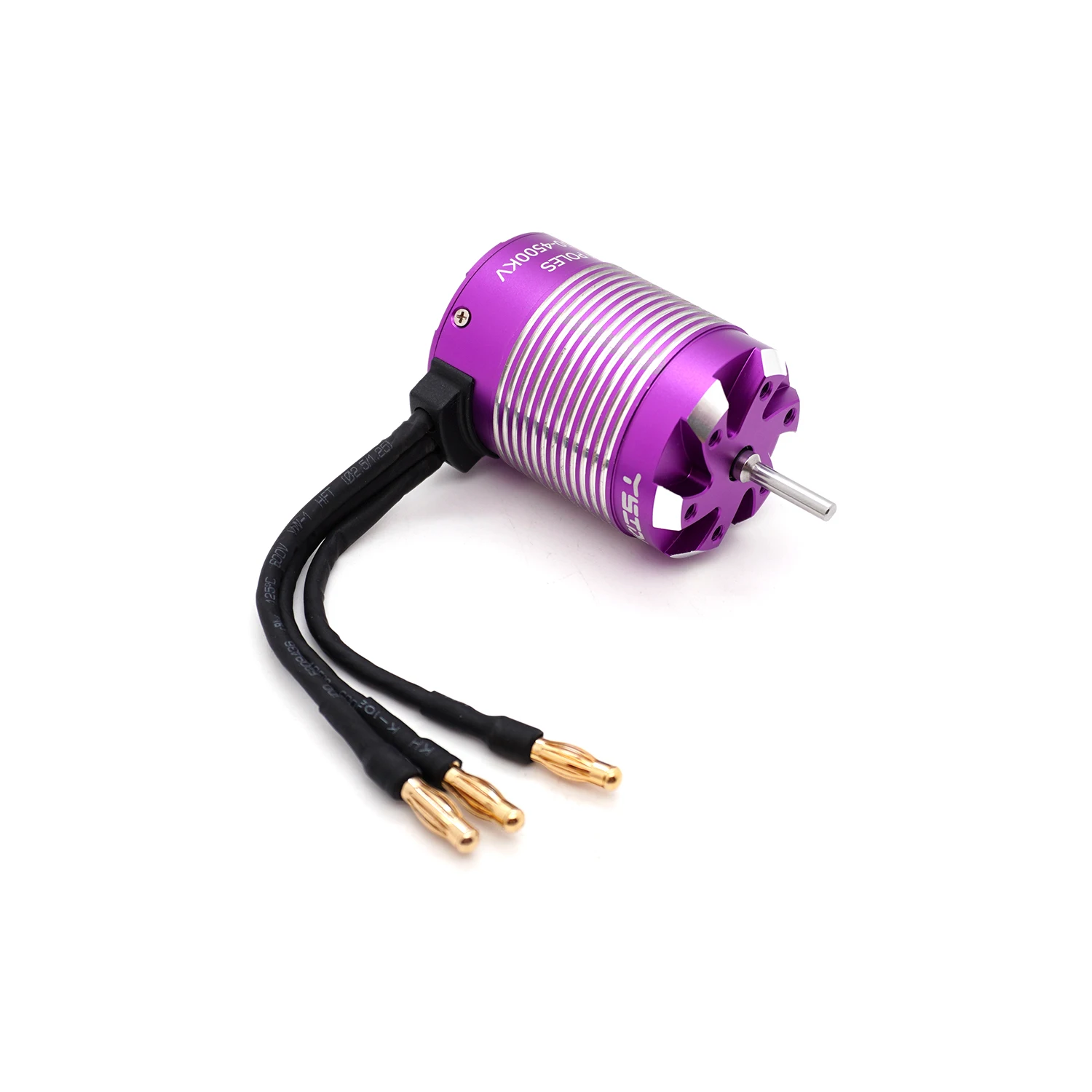

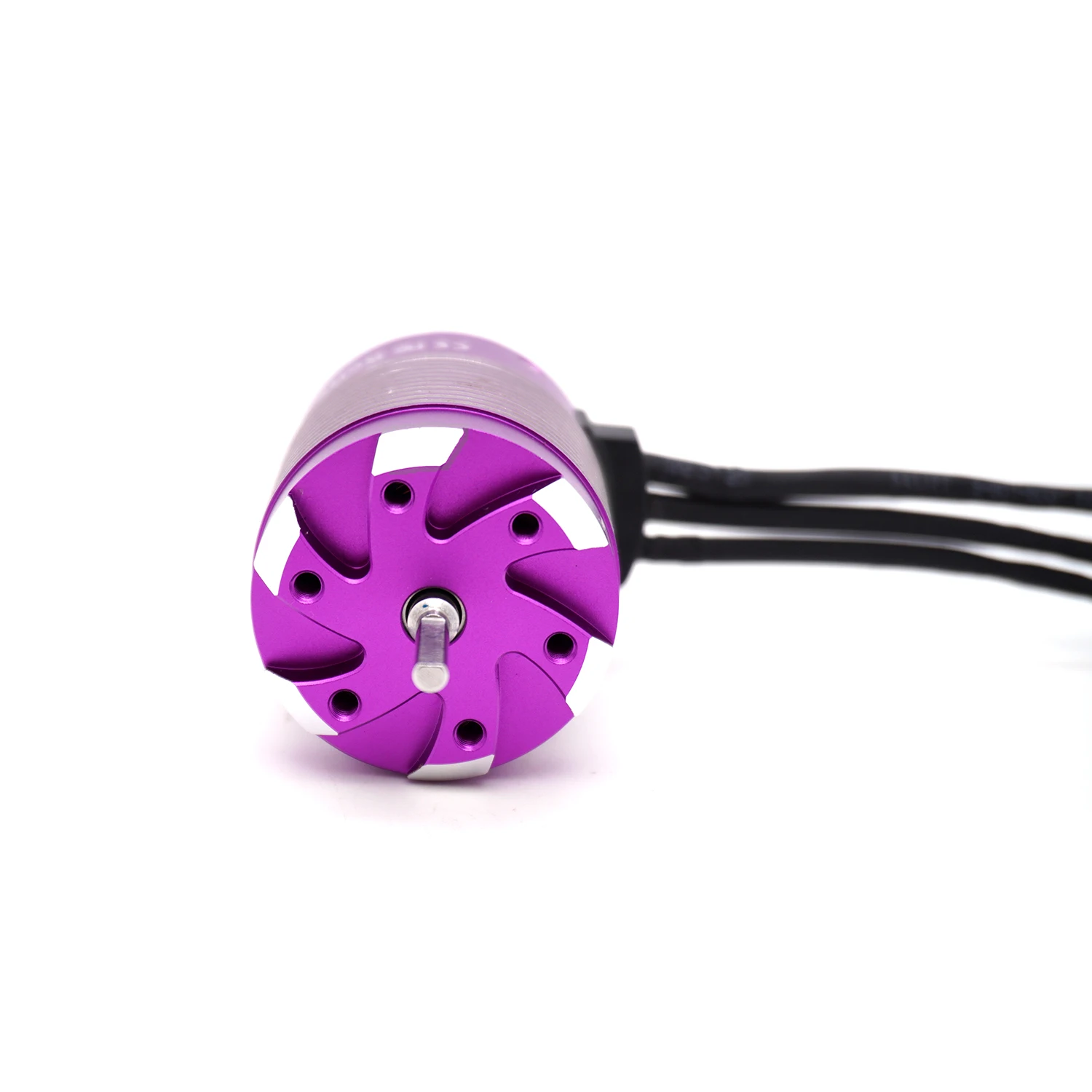

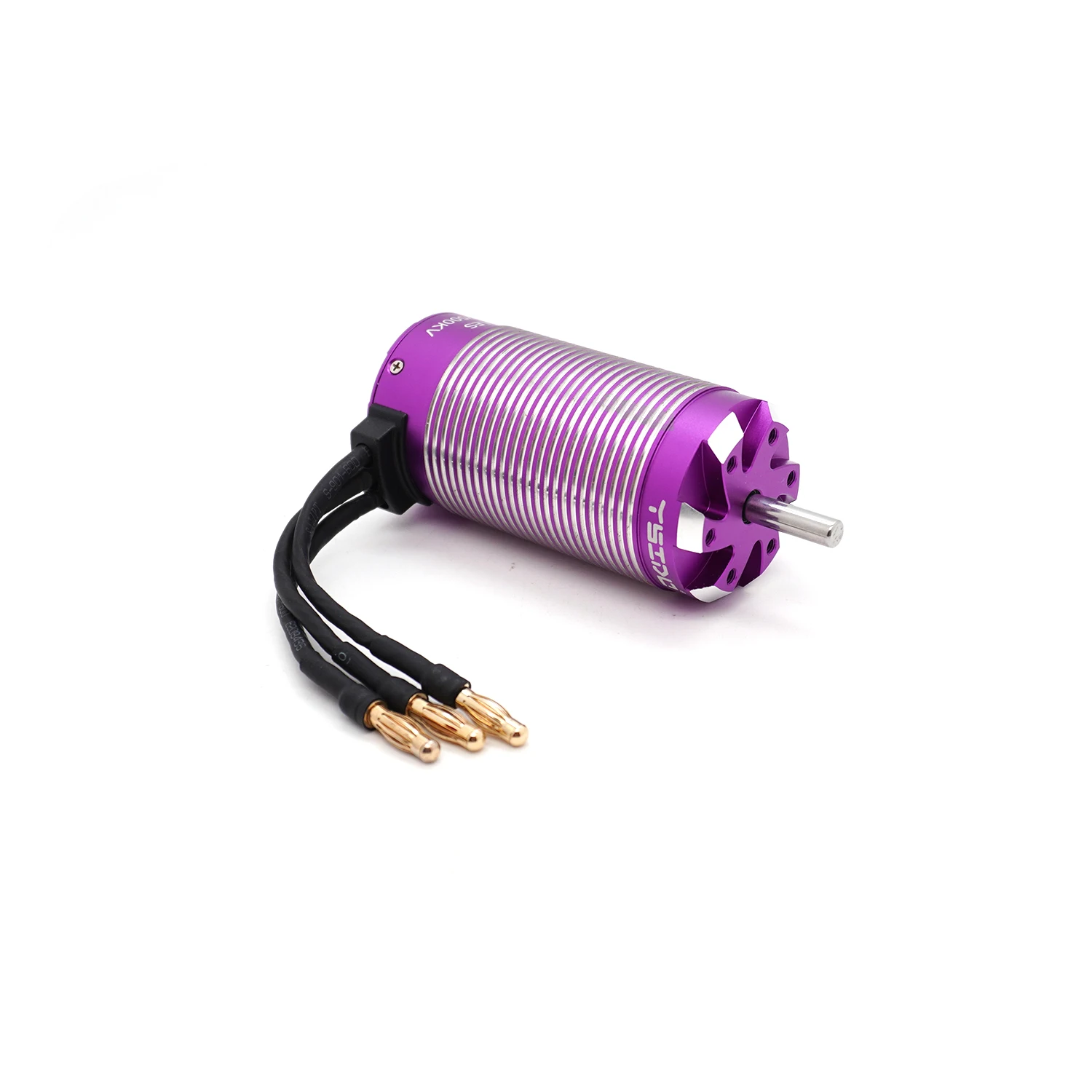

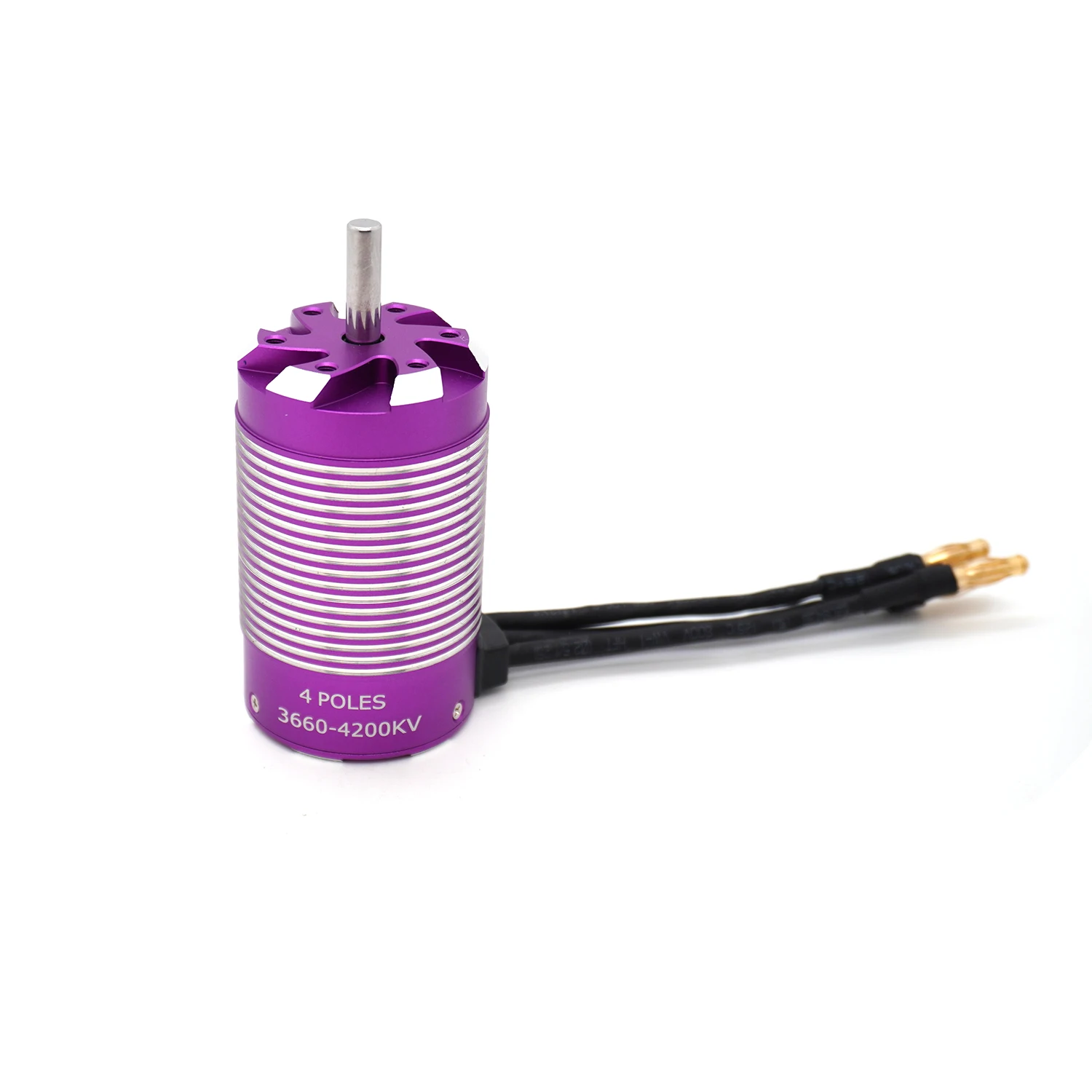

3660 Brushless Sensorless Motor

KV(RPM/Volt): Optional

Rotor poles: 4

Battery: 2-6S

Diameter: 37mm

Length: 61mm

Shaft: 3.175mm/5.0mm

Connector: 4.0mm gold

Weight:280g

Features:

1.Water-proof and Dust-proof: The WSDT-60A brushless RC 60A ESC suitable to all-weather sport races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

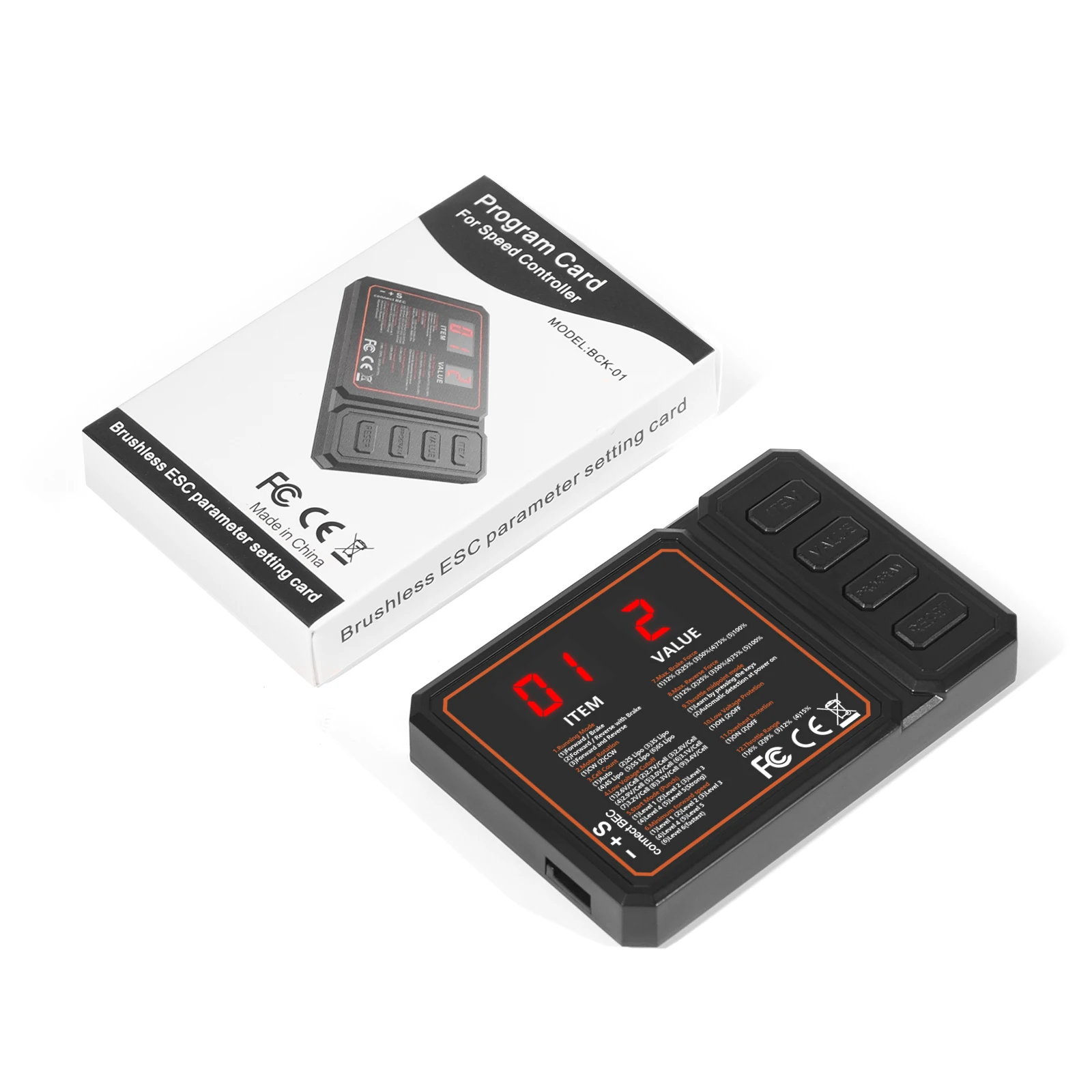

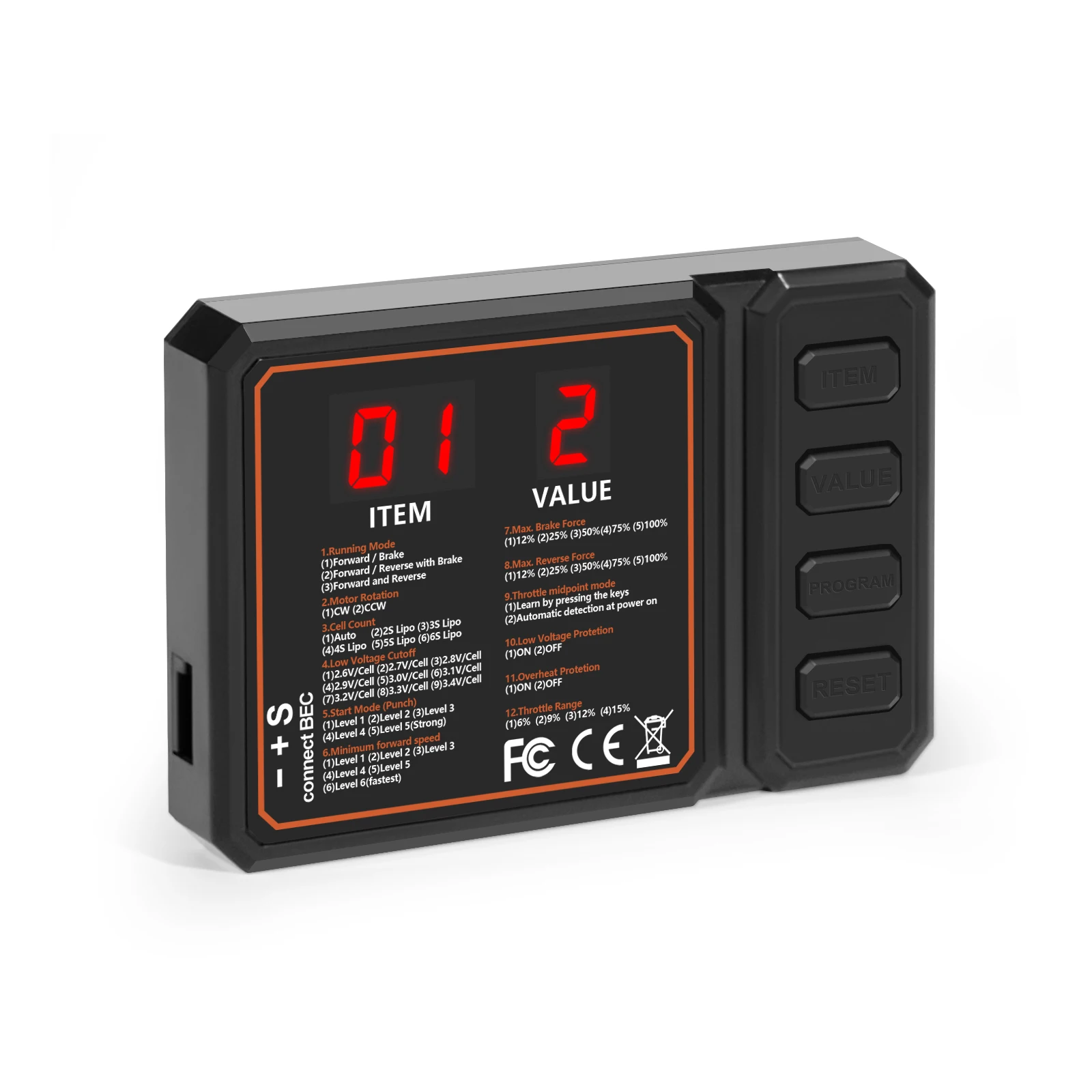

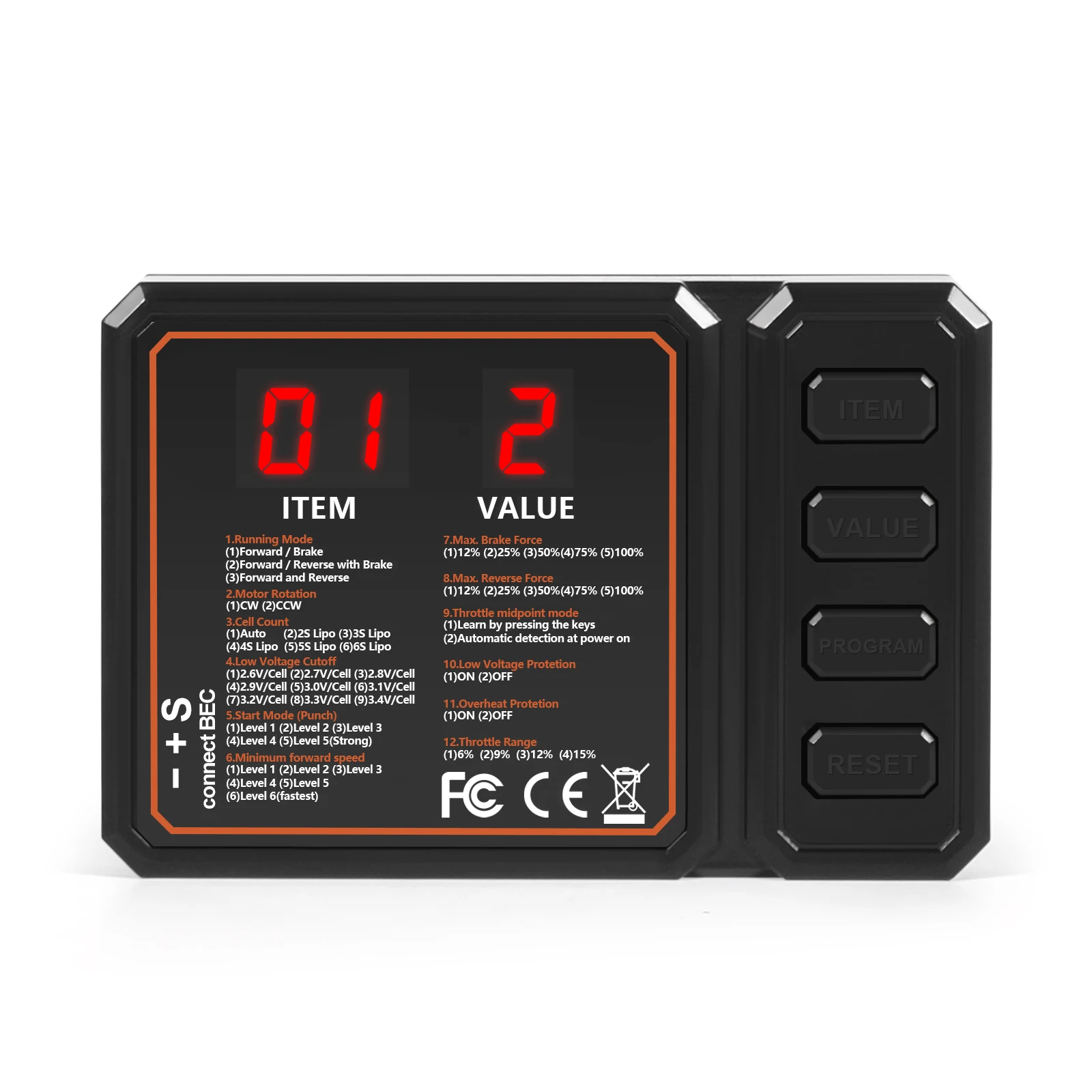

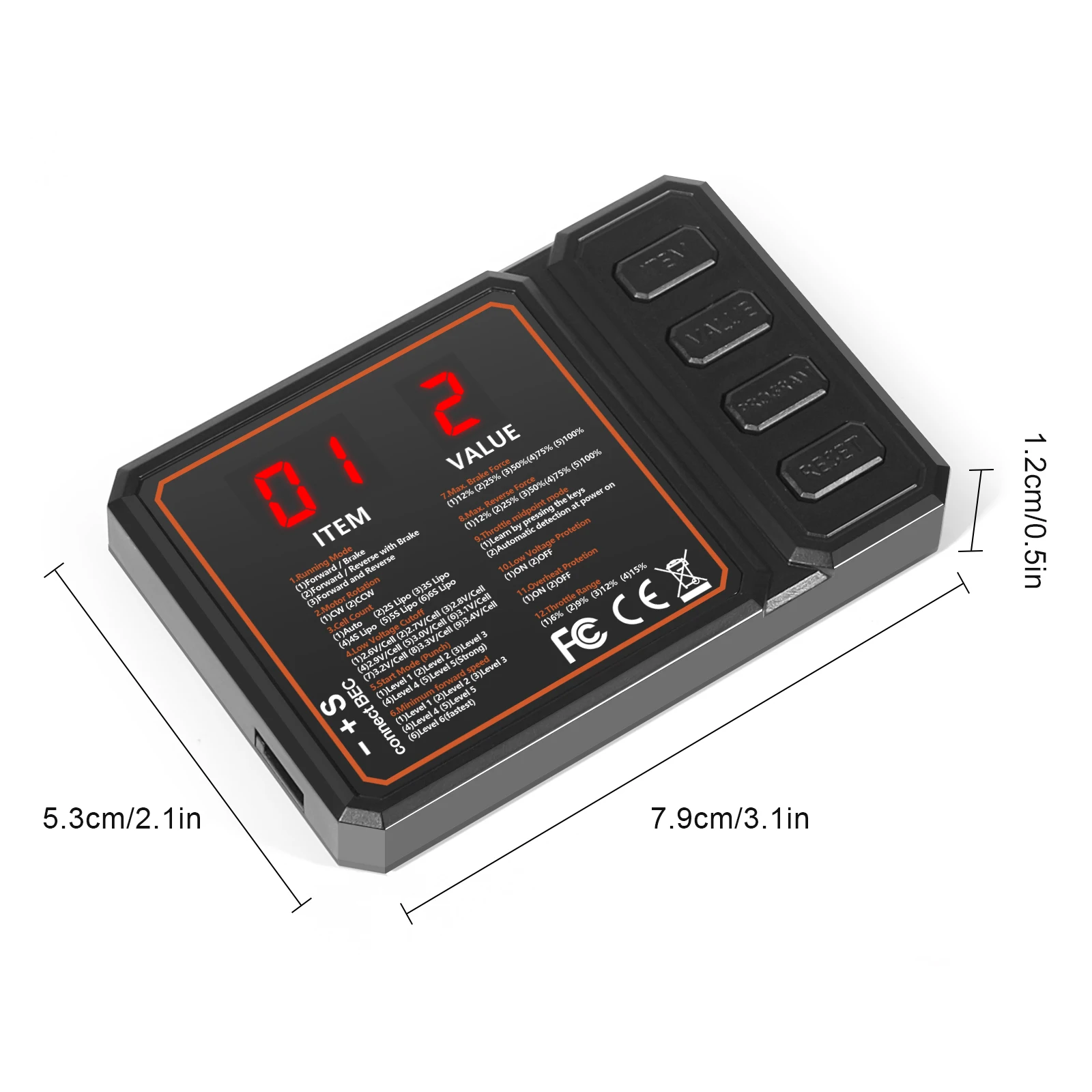

2.External Programming Port: Easy to connect to the Program Card when setting the ESC

3.Multiple Protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection

4.Performance: Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment; 9 steps of acceleration(punch) adjustment from "soft" to "Very aggressive" to fit for different kinds of models, tires and tracks

5.Application: This WSDT-60A brushless ESC suitable for 1/10th short course trucks, buggies, trucks, and monster trucks.The built-in switch mode BEC with a maximum output of 6Amp and voltage of 6V make this RC Brushless ESC compatible with various servos.

Description:

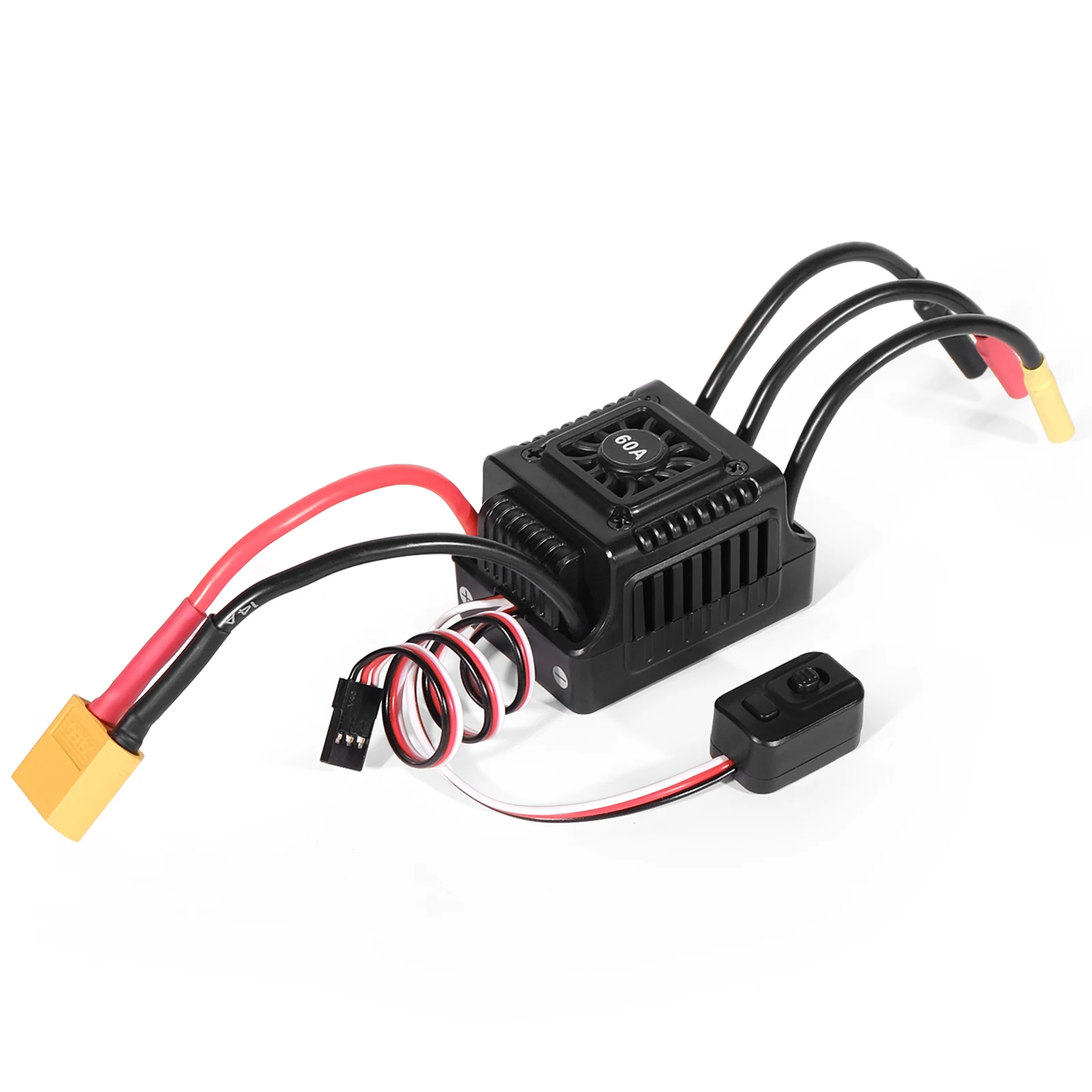

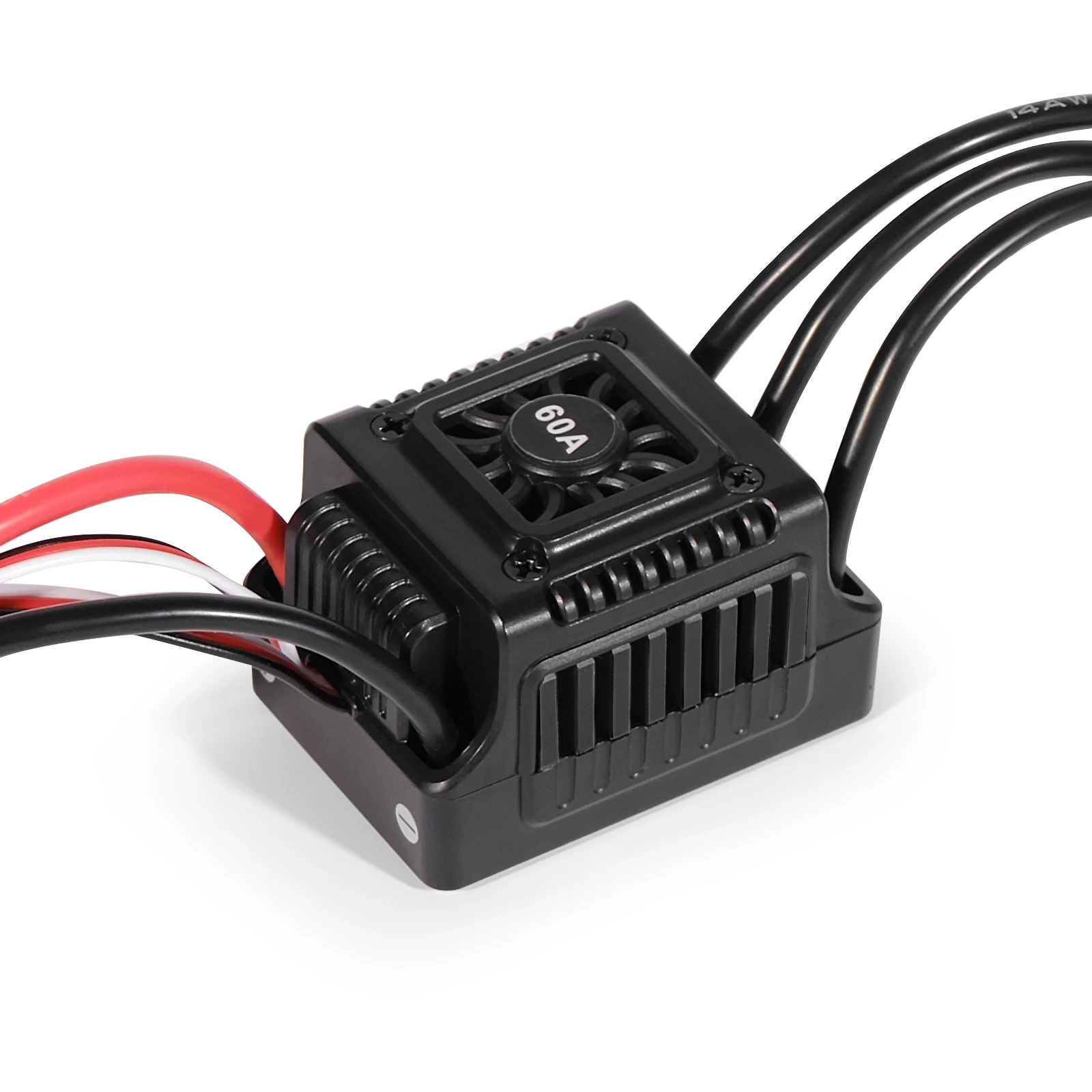

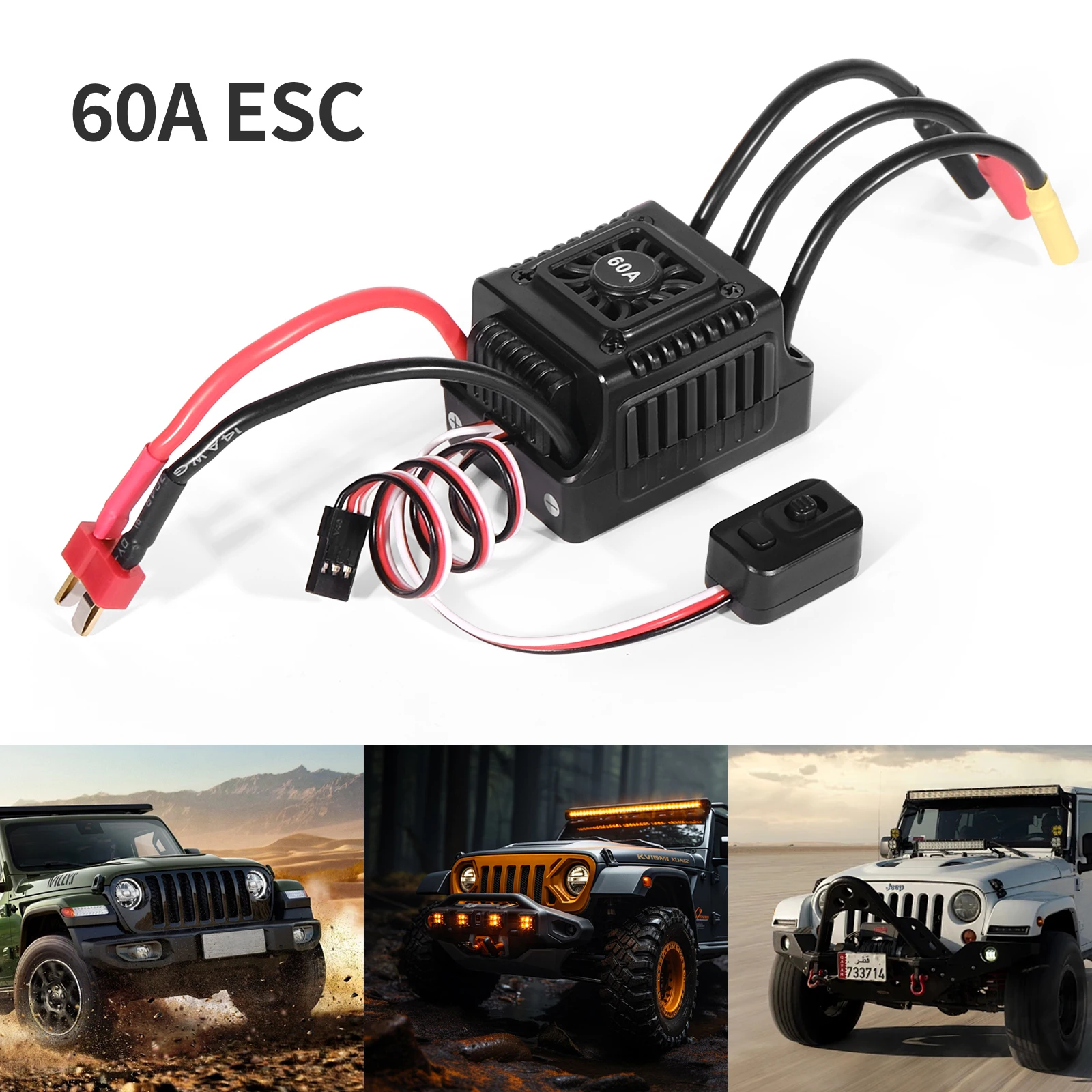

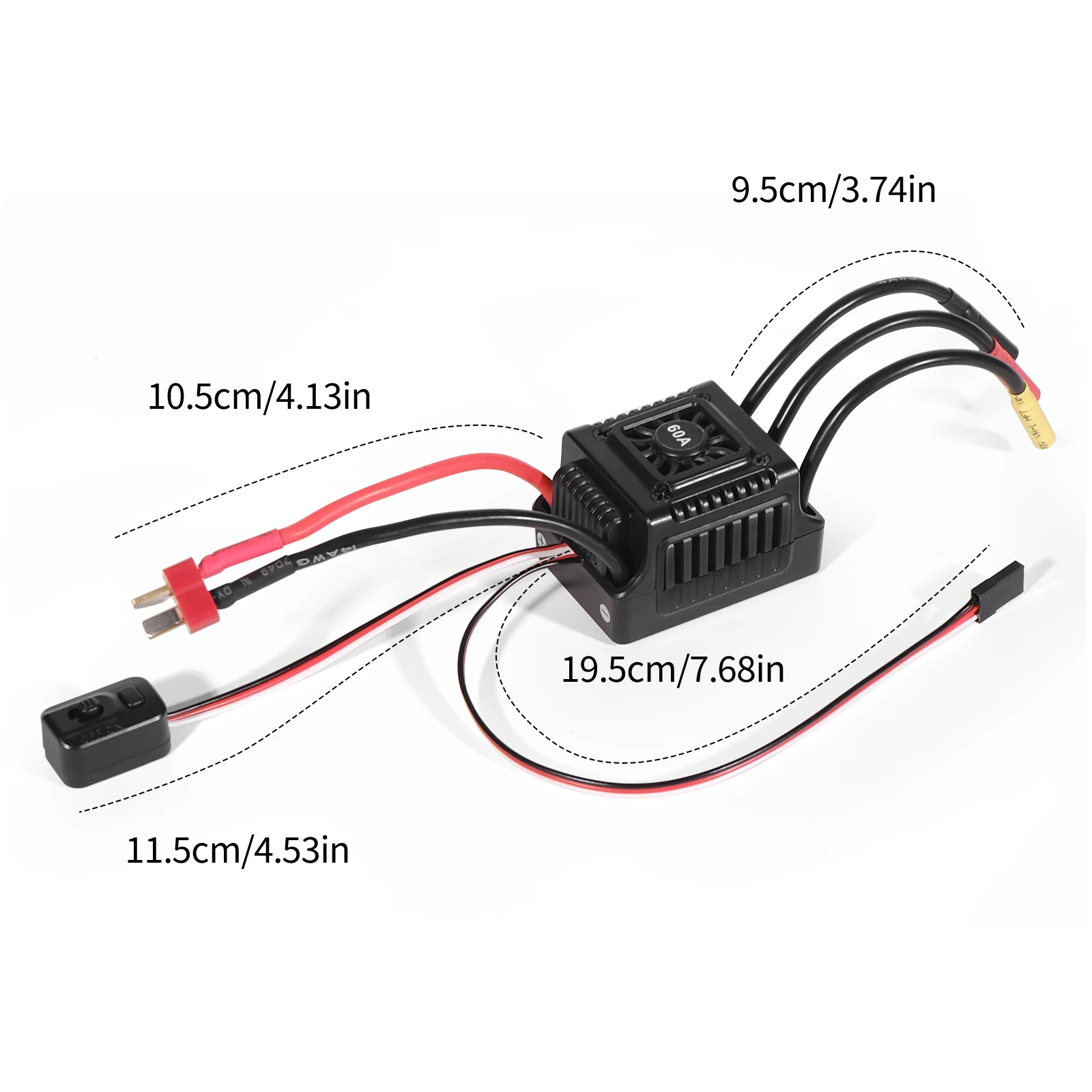

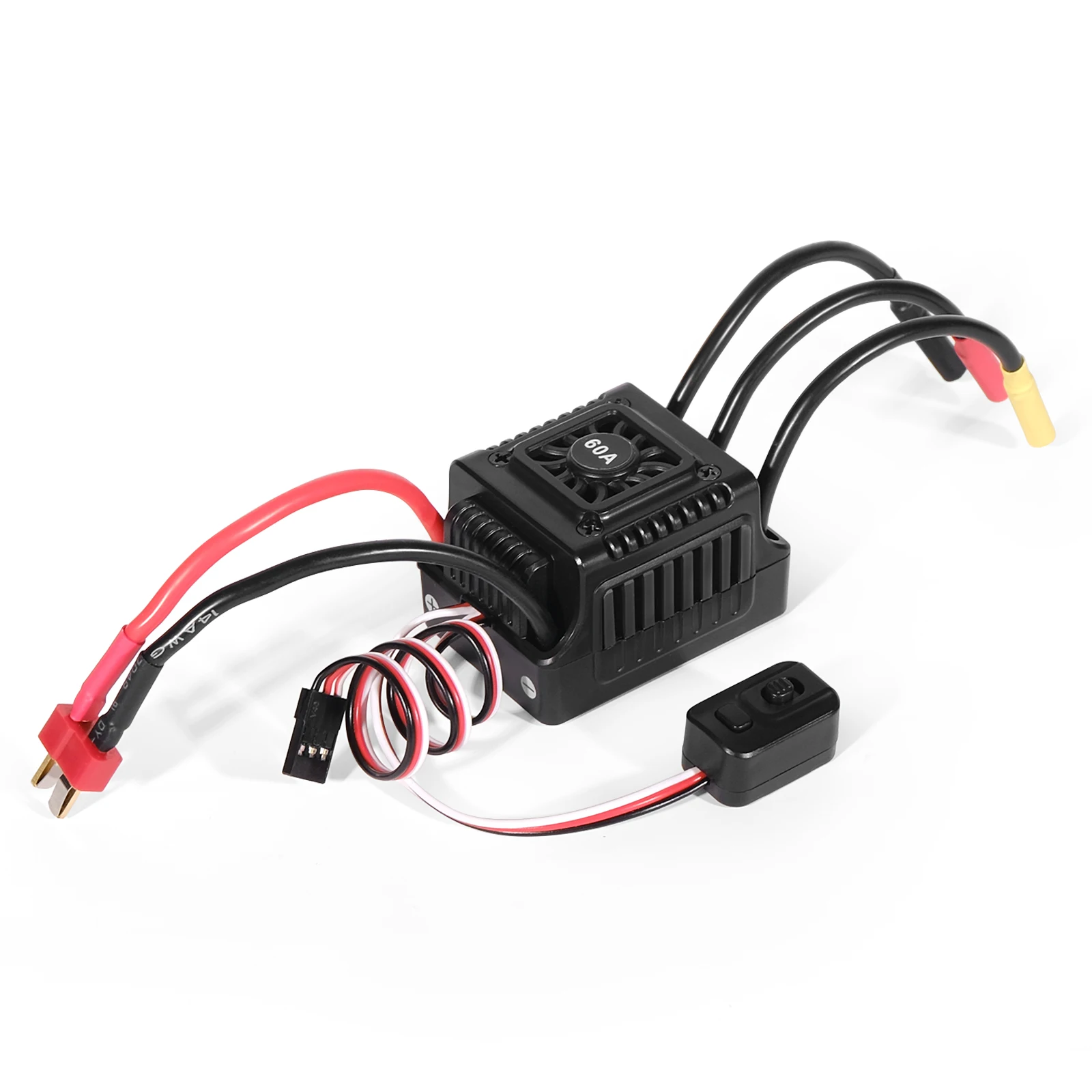

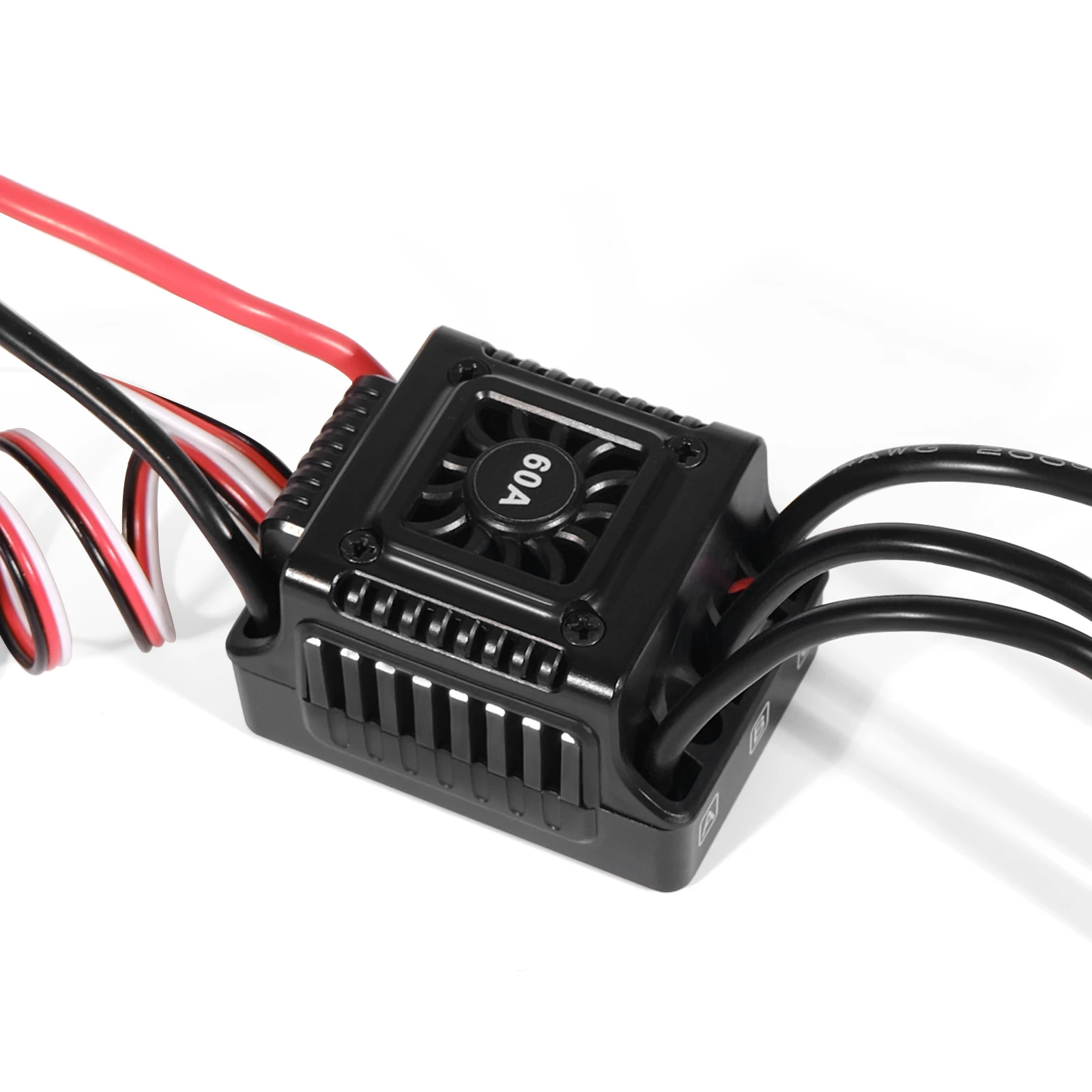

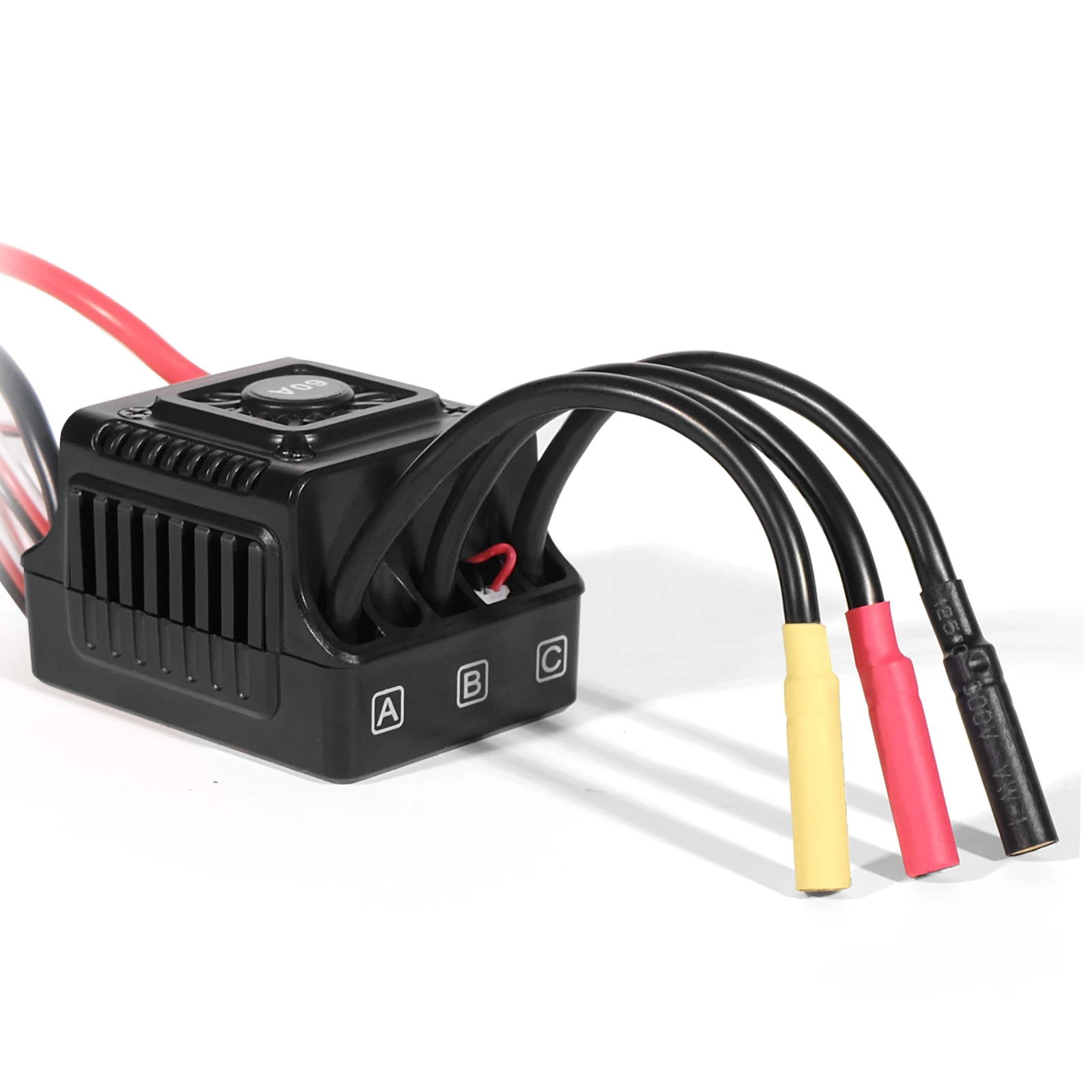

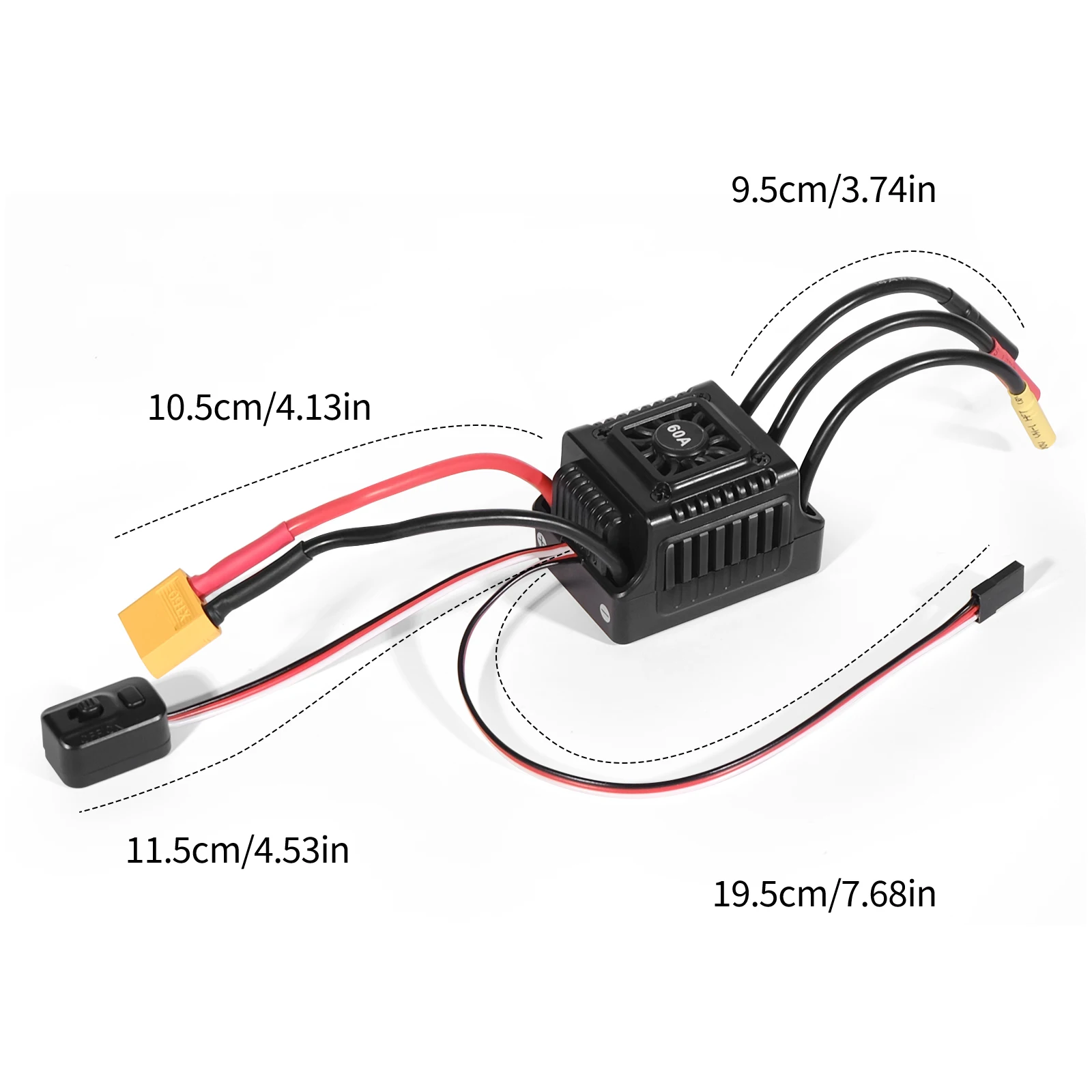

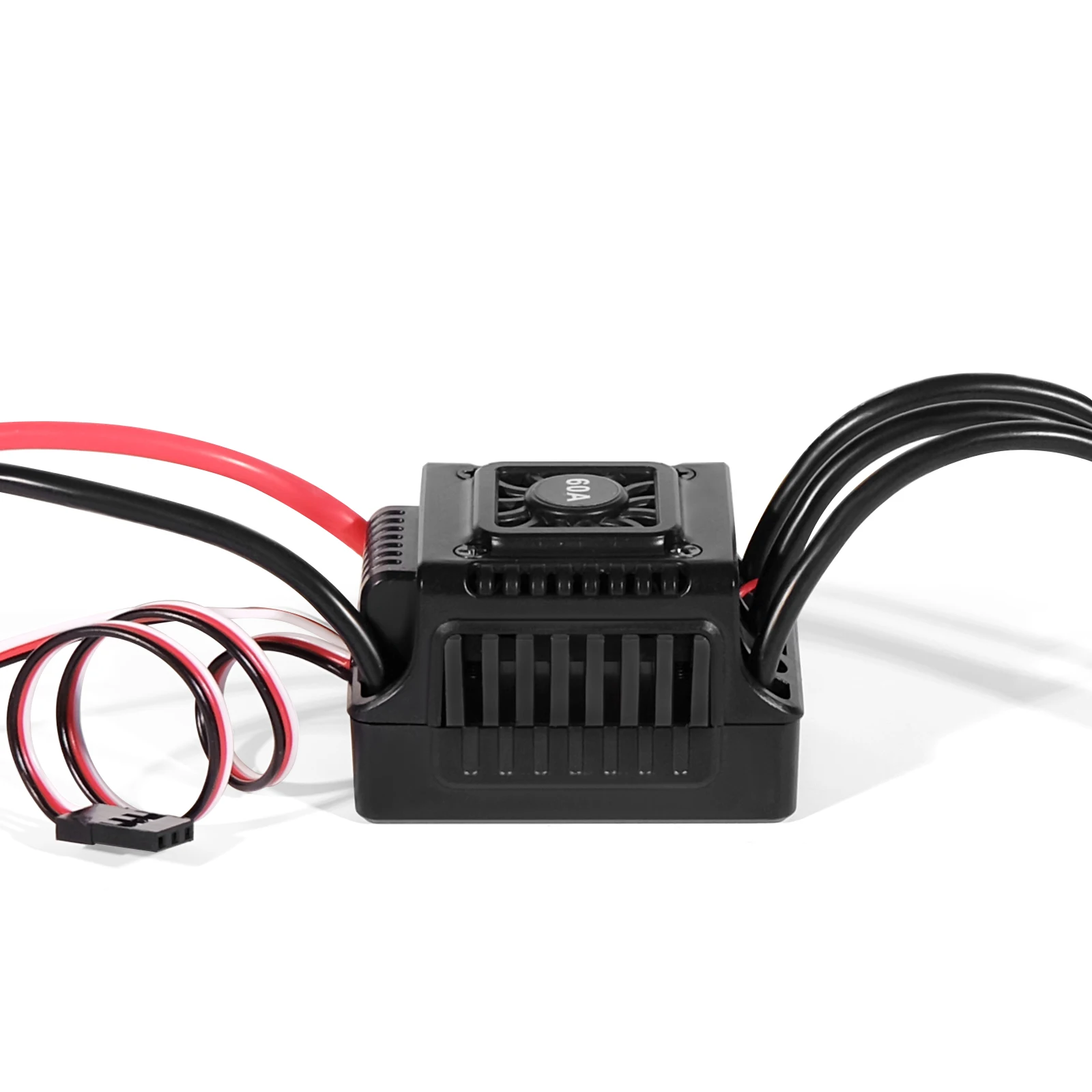

WSDT-60A RC sensorless brushless waterproof 60A ESC suitable for 1/10 RC ,compatible with various brushless servos.Simply operation that built for entry-level and intermediate players.

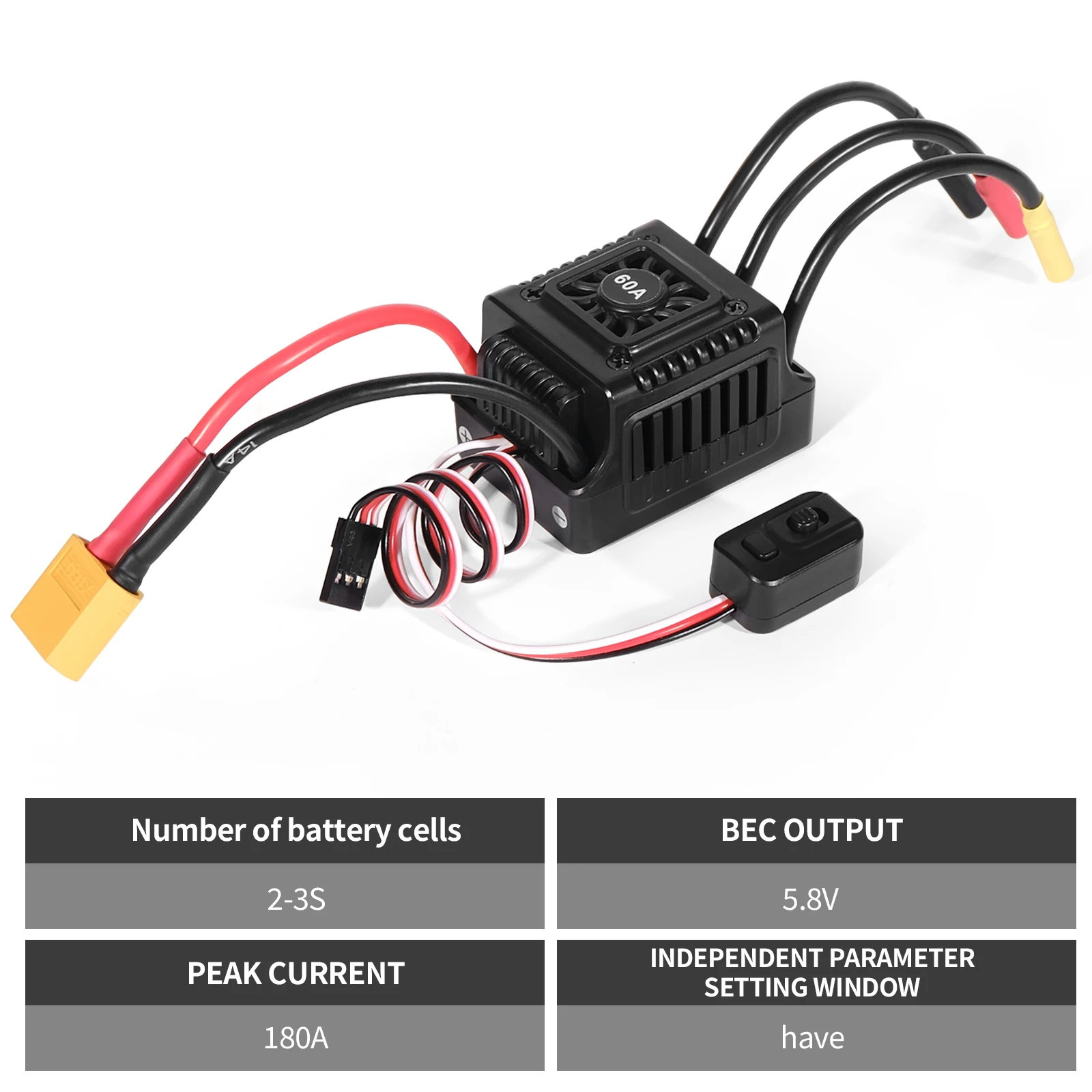

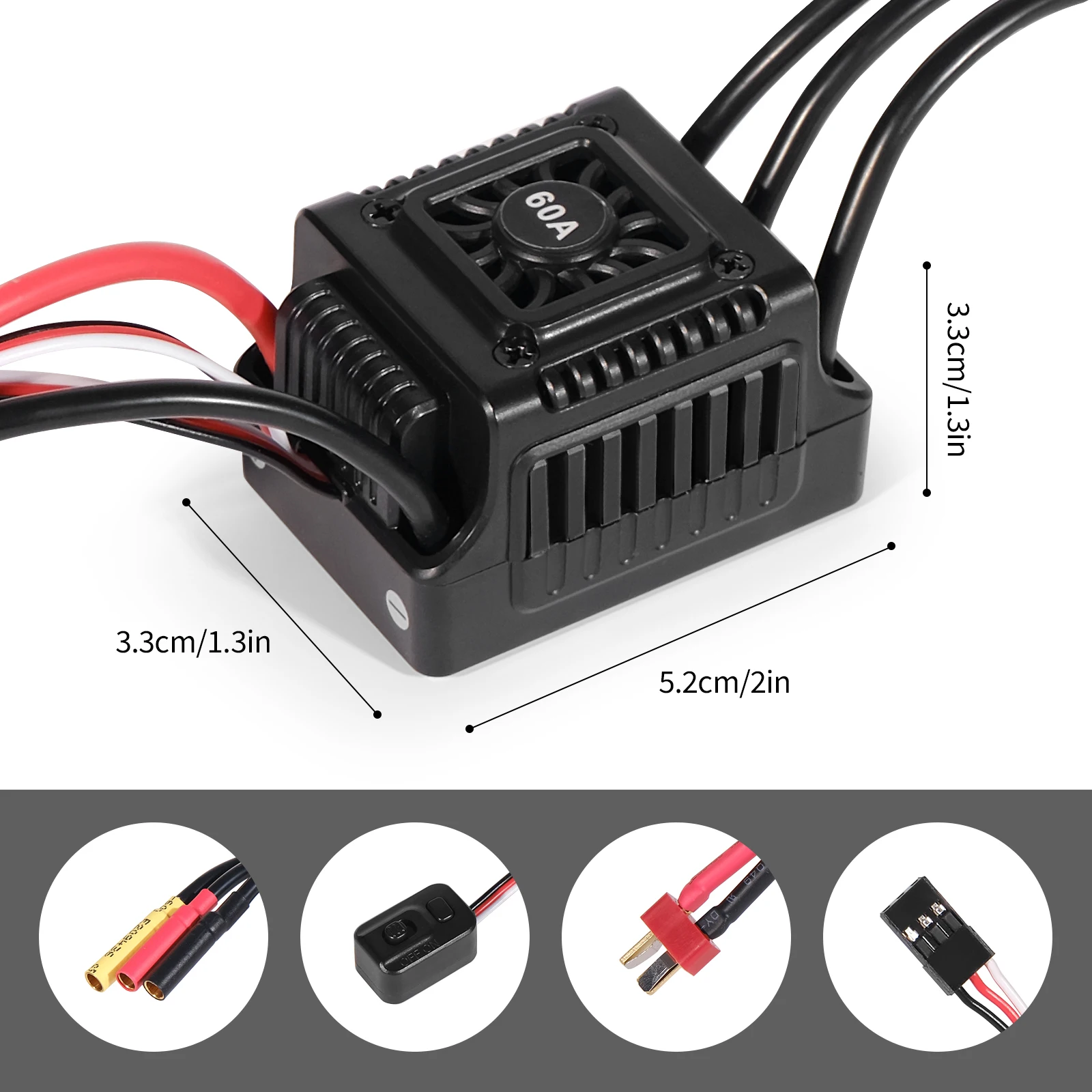

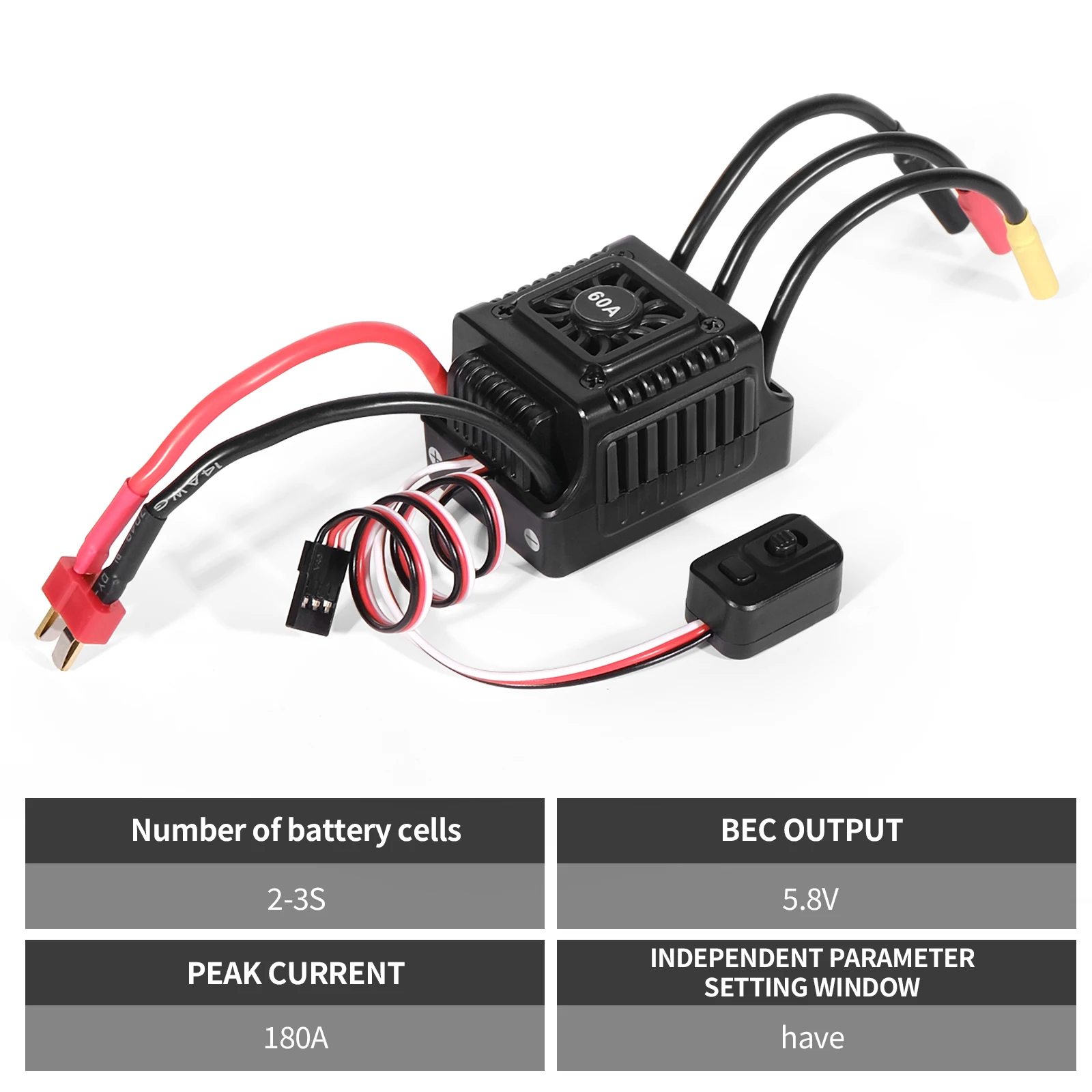

Product: Sensorless brushless ESC

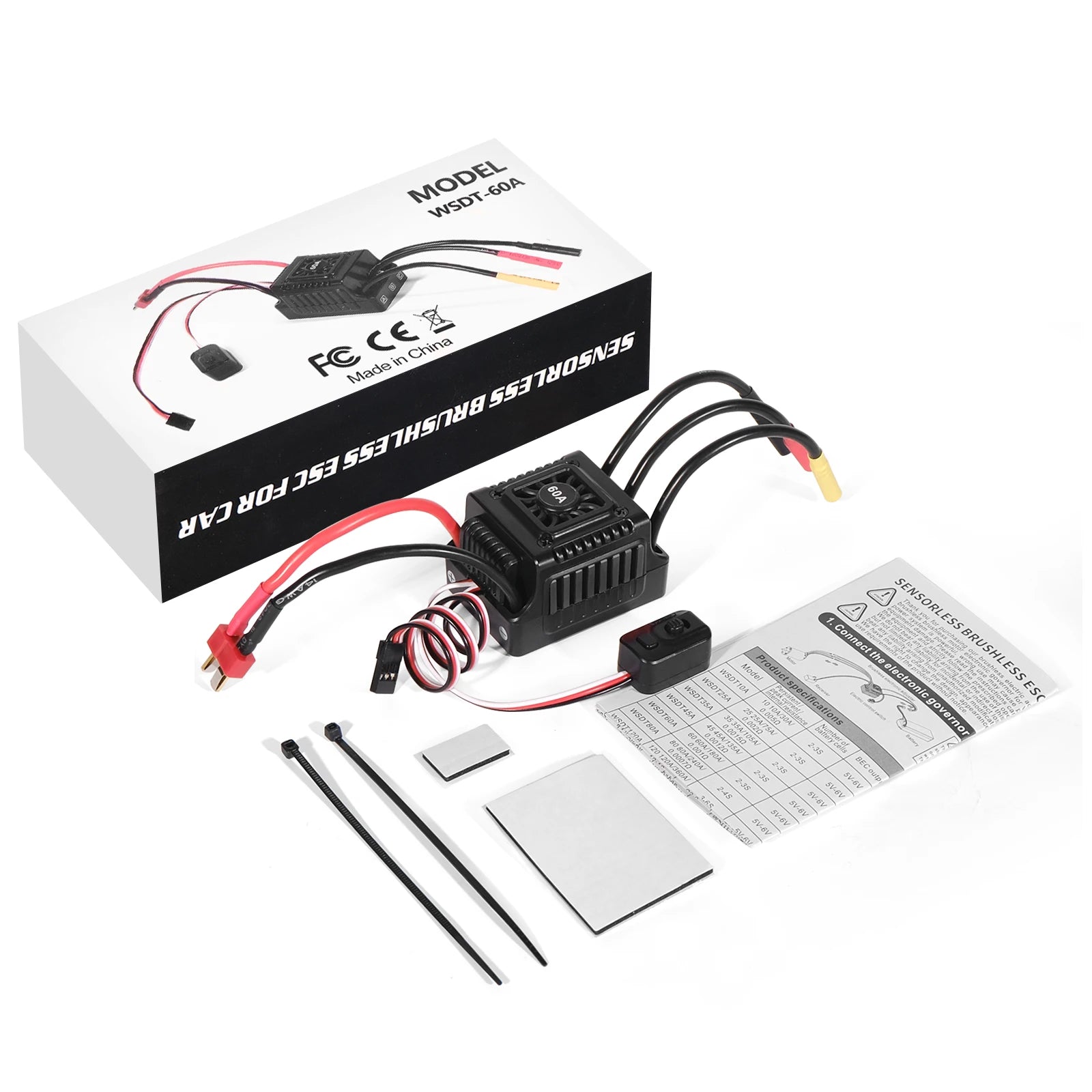

Model: WSDT-60A

Cont. Current: Fwd. 60A / Rev. 60A

Peak Current: Fwd. 180A / Rev. 180A

Resistance: 0.001Ω

Cars Applicable: 1:10 On-road/Off-road/Buggy/Monster

Battery: 4-9 Cells NiMH, 2-3S Lipo

Motor Limit:

For 2S Lipo or 6 cells NiMH:

On-road: 3656-size or smaller motor with the KV<6000

Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:

On-road: 3656-size or smaller motor with the KV<4000

Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000.

Note:

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
