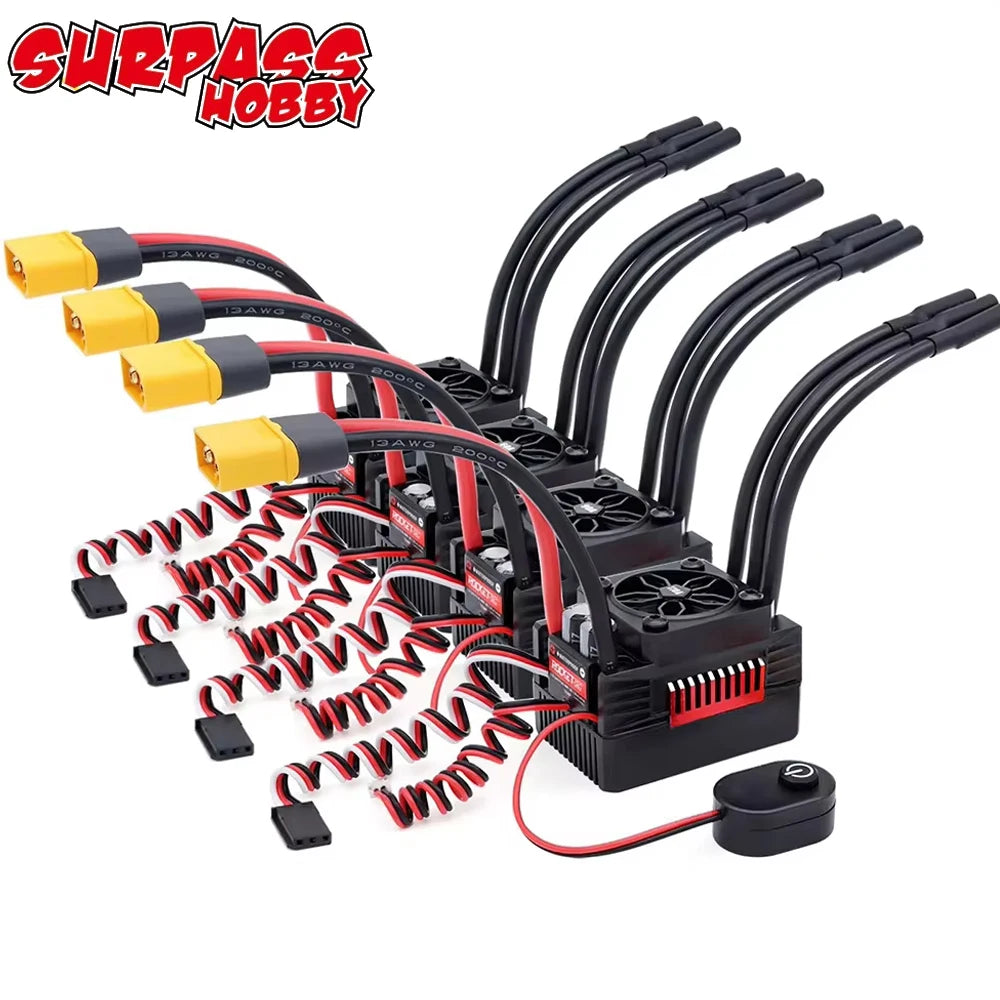

Surpass Hobby Surpasshobby Rocket V2 Supersonic 50A 60A 90A 110A 2-3S Waterproof Brushless ESC

Features:
1. Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fanbefore using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up,acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.

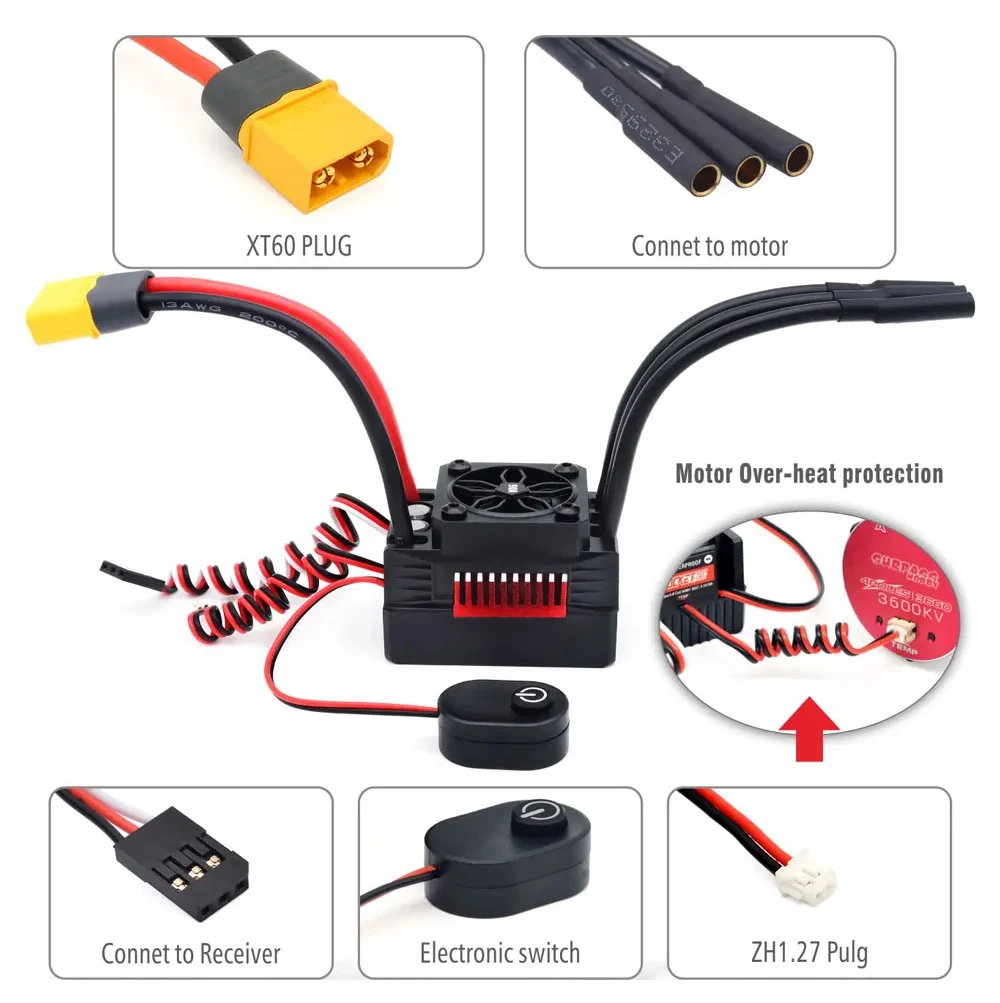

5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/ ESC Over-heat protection/ Motor Over-heat protection/ Throttle signal loss protection/Motor blocked protection/
6. Built-in switch-mode BEC 7.4V/8.4V 6A for usage with high torque and high voltage servos.

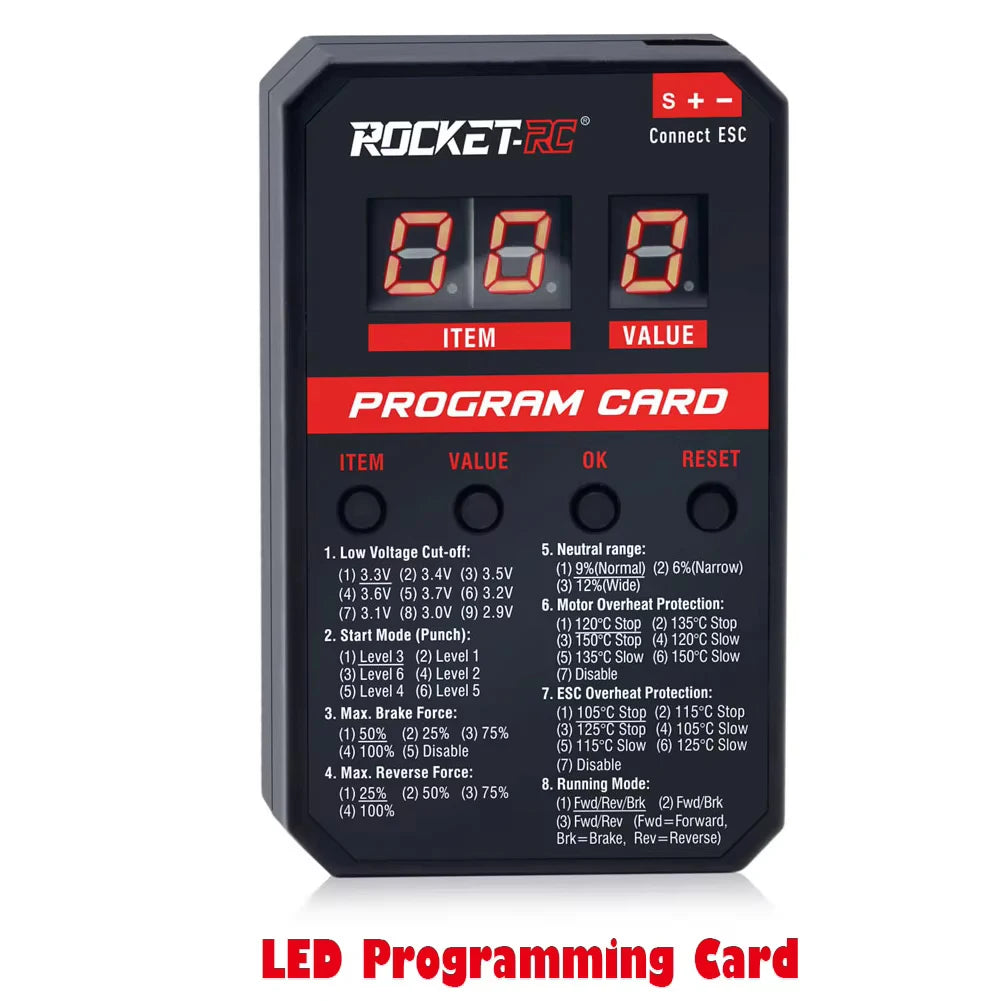

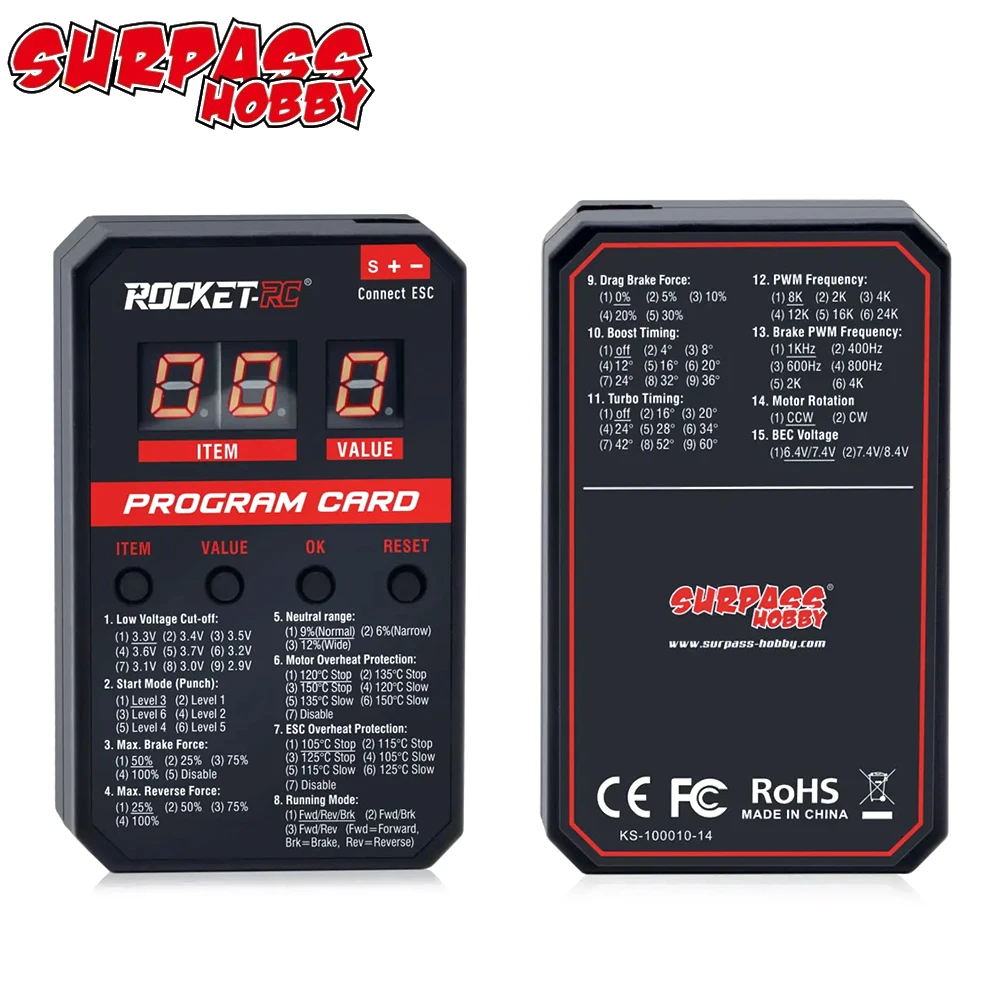

7. Easily programmed and compatible with pocket-sized program card.

Descriptions:

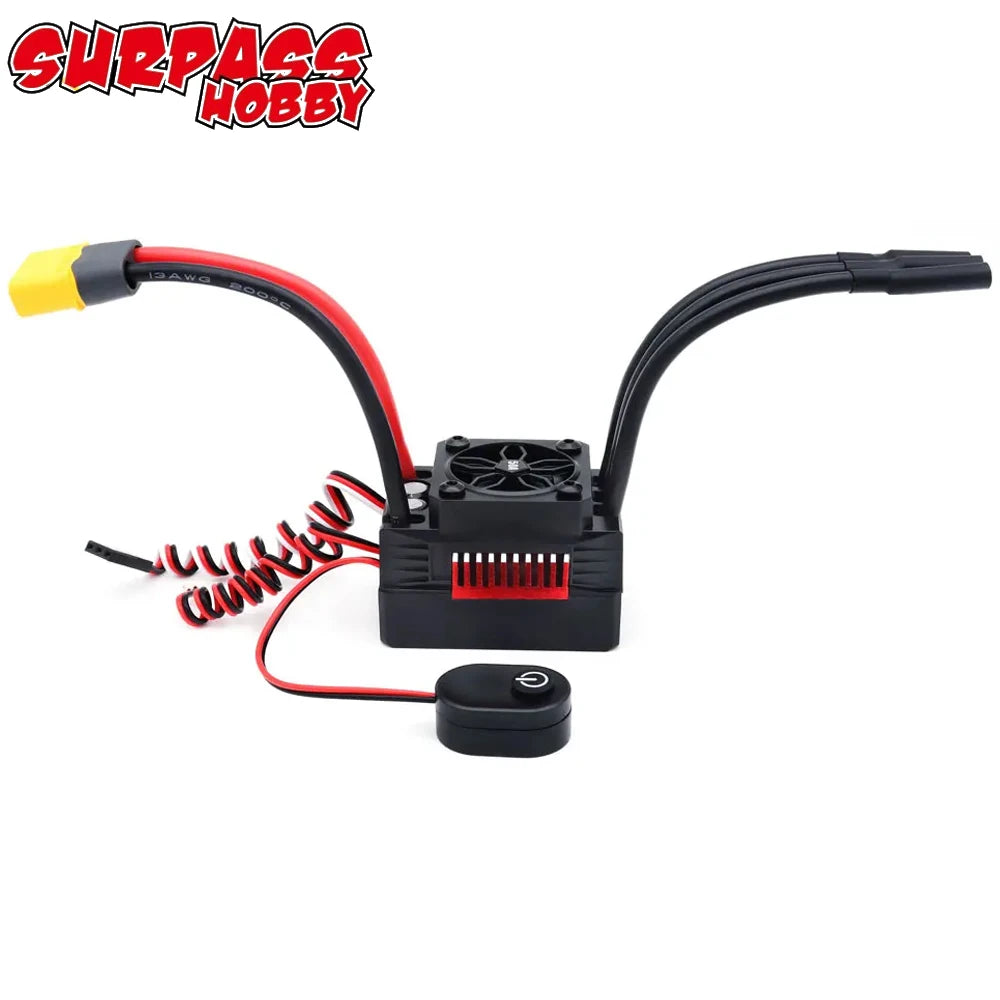

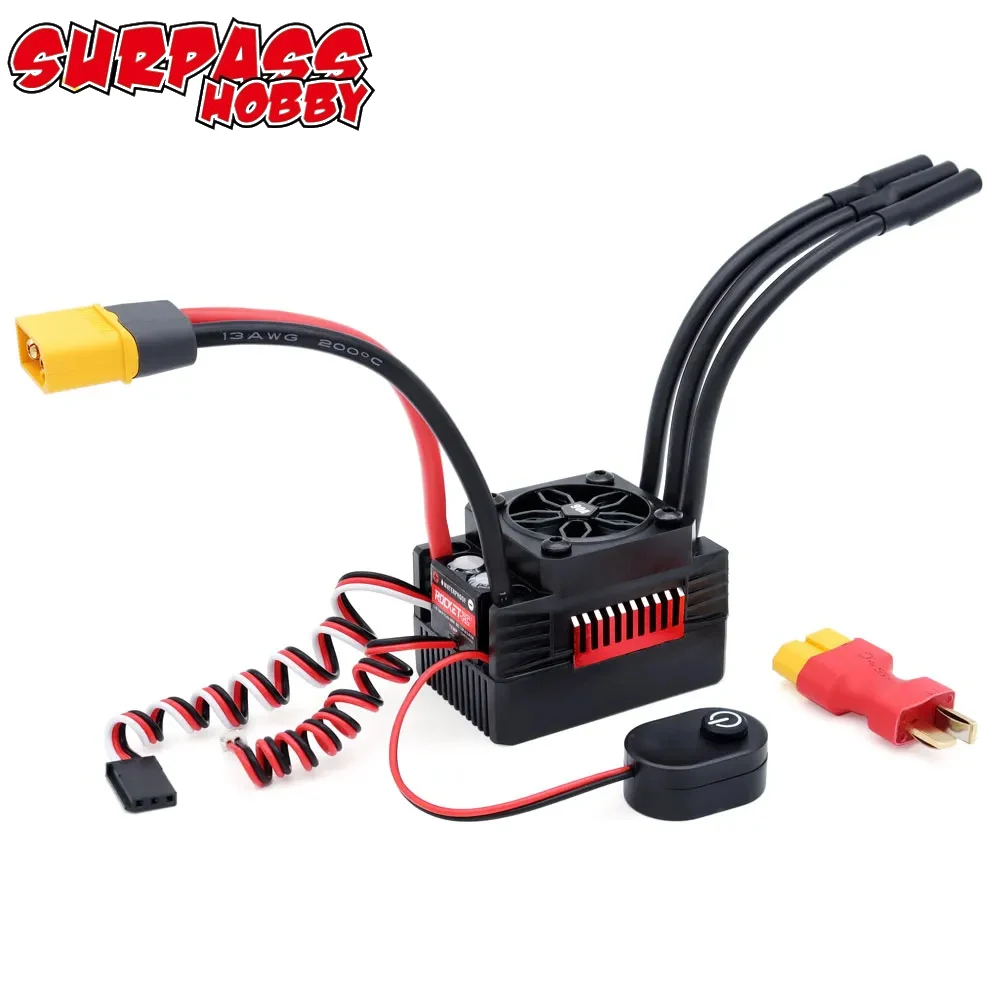

The Rocket V2 Supersonic Aluminum casing and heat-sink combined,and with cooling fan, Super good heat dissipation effect!

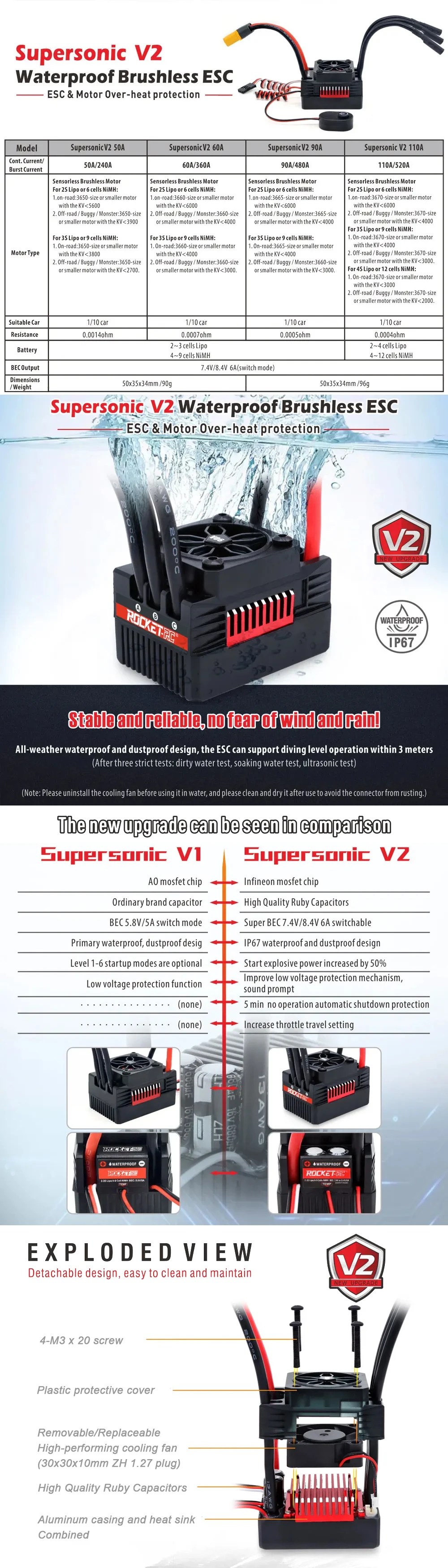

Specifications:

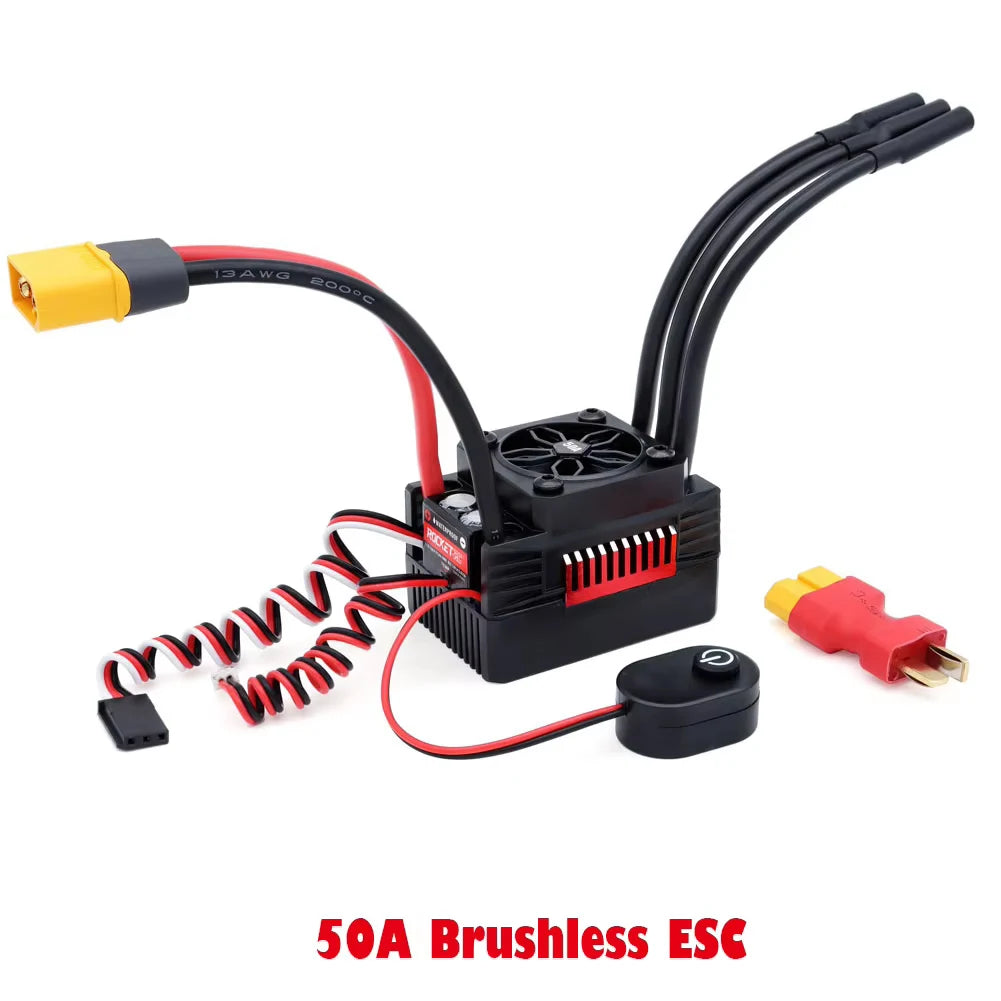

Supersonic 50A ESC
Cont.Current: 50A
Burst Current: 240A
Motor Type: for Sensorless Brushless Motor
For 2S Lipo or 6 cells NIMH:
1. on-road: 3650-size or smaller motor with the KV<5600
2. off-road / Buggy / Monster: 3650-size or smaller motor with the KV<3900

For 3S Lipo or 9 cells NIMH :
1. On-road: 3650-size or smaller motor with the KV<3800
2. Off-road / Buggy / Monster: 3650-size or smaller motor with the KV<2700.
Resistance: 0.0014ohm
Battery: 2S Lipo/4-9Cells NiMH

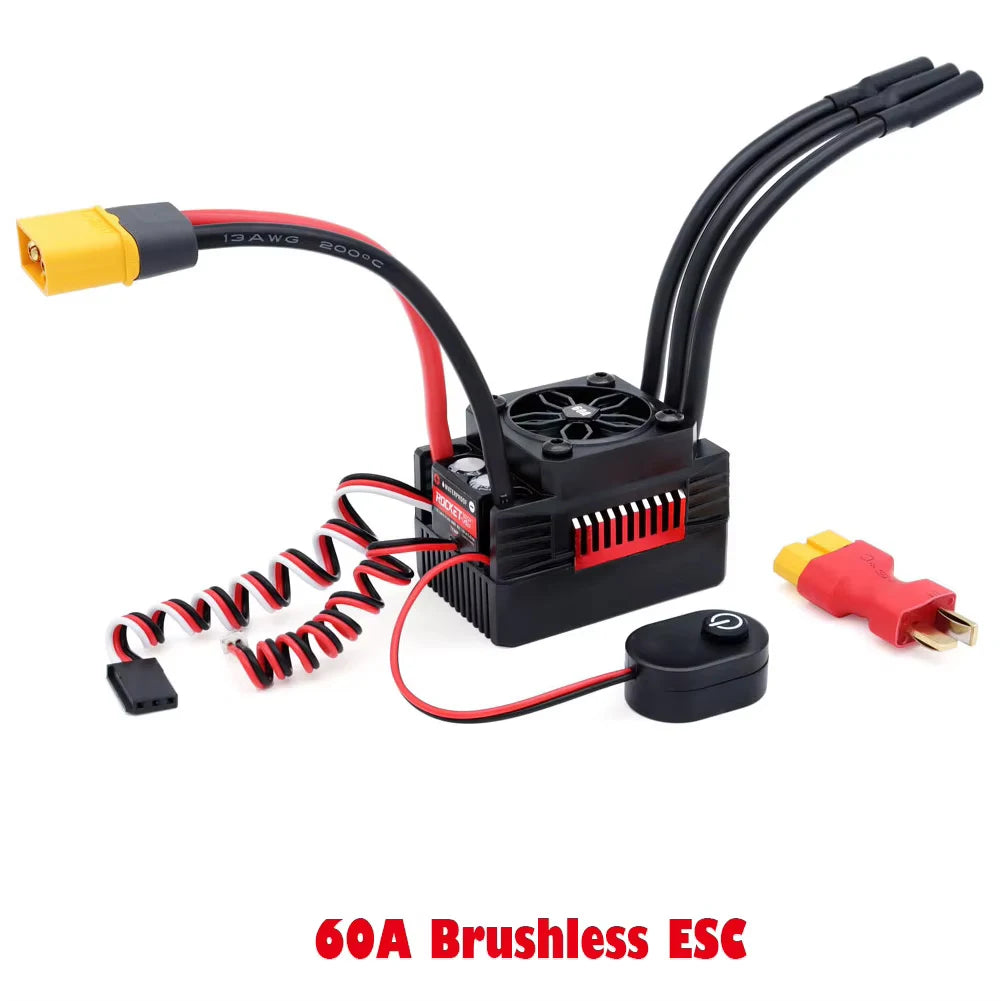

Supersonic 60A ESC
Cont.Current: 60A
Burst Current: 360A
Motor Type: Sensorless Brushless Motor

For 2S Lipo or 6 cells NIMH :
1. on-road: 3660-size or smaller motor with the KV<6000
2. off-road / Buggy / Monster: 3660-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NIMH :
1. On-road: 3660-size or smaller motor with the KV<4000
2. Off-road / Buggy / Monster: 3660 -size or smaller motor with the KV<3000.
Suitable for: 1/10 Car
Resistance: 0.0007ohm
Battery: 2S Lipo/4-9Cells NiMH

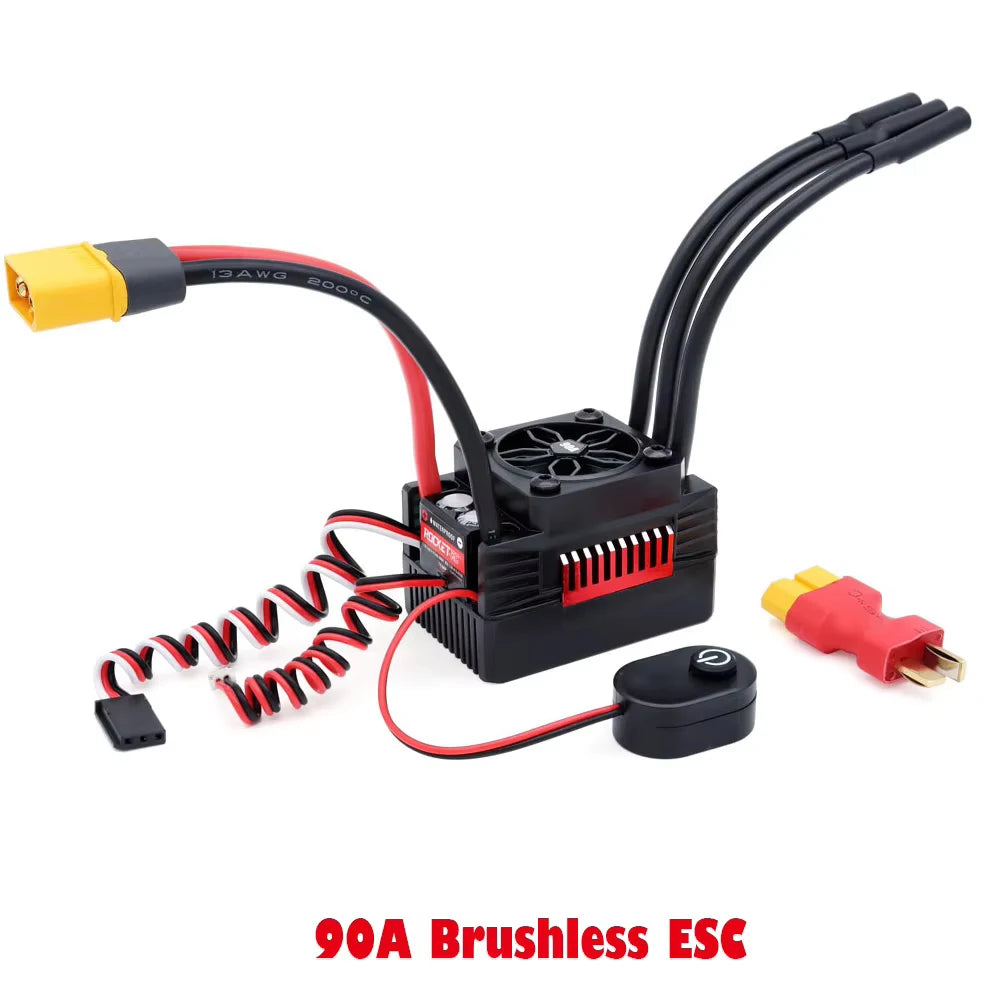

Supersonic 90A ESC
Cont.Current: 90A
Burst Current: 480A
Motor Type: Sensorless Brushless Motor

For 2S Lipo or 6 cells NIMH :
1. on-road: 3670-size or smaller motor with the KV<6000
2. off-road / Buggy / Monster: 3670-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NIMH :
1. On-road: 3670-size or smaller motor with the KV<4000
2. Off-road / Buggy / Monster: 3670-size or smaller motor with the KV<3000.

Suitable for:1/10 Car
Resistance: 0.0005ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 7.4V/8.4V 6A (Switch mode)
Dimensions: 50x35x32mm
Weight: 81g

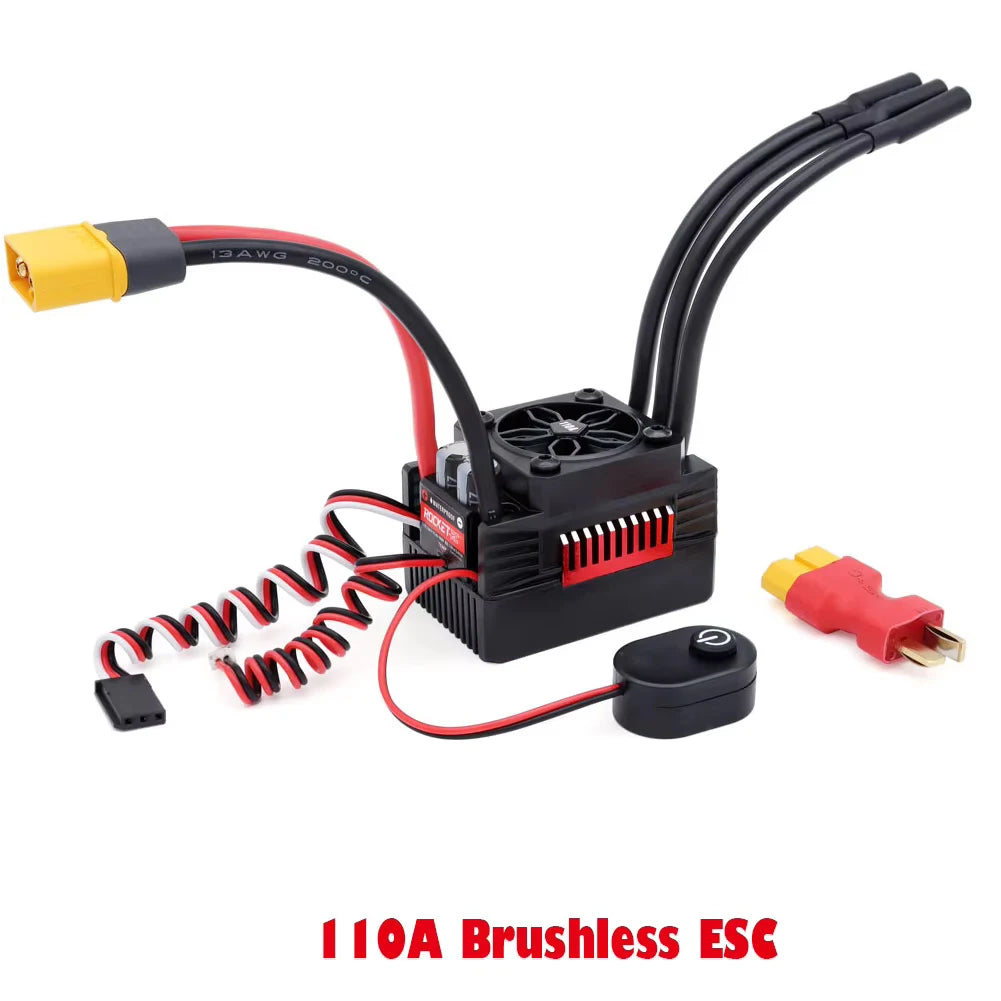

Supersonic 110A ESC
Cont.Current: 110A
Burst Current: 520A
Motor Type: for Sensorless Brushless Motor

For 2S Lipo or 6 cells NIMH:
1. on-road: 3670-size or smaller motor with the KV<6000
2. off-road / Buggy / Monster: 3650-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NIMH:
1. On-road: 3670-size or smaller motor with the KV<4000
2. Off-road / Buggy / Monster: 3650 -size or smaller motor with the KV<3000.
For 4S Lipo or 12 cells NIMH:
1. On-road: 3670-size or smaller motor with the KV<3000
2. Off-road / Buggy / Monster: 3650 -size or smaller motor with the KV<2000.
Resistance: 0.0014ohm
Suitable Car: 1/10 RC car
Battery: 2-4S Lipo/4-12Cells NiMH
BEC Output: 7.4V/8.4V 6A(switch mode）
Size: 50x35x34mm
Weight: 81g
