SURPASS HOBBY 25A 35A 45A 60A 80A 120A 150A Waterproof Brushless mini ESC T/XT60  for 1/10 RC Car Crawler speed controller Motor

Description:
1.This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.
2.Since we can't control over the correct use, installation, application, or maintenance of our products, we'veno liability shall be assumed nor accepted for any damages,losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.
3.We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.

Features:
1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.

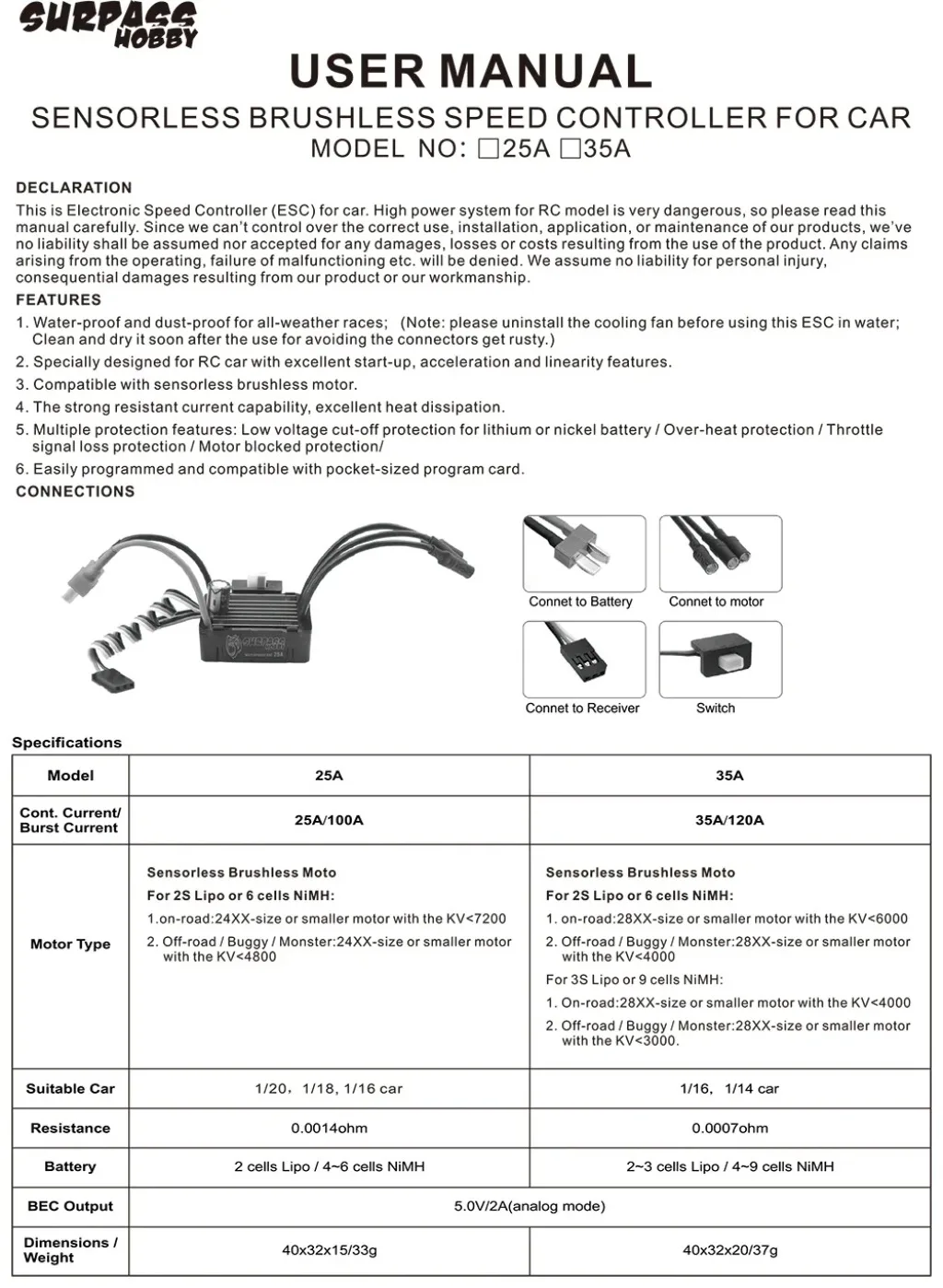

Specification:

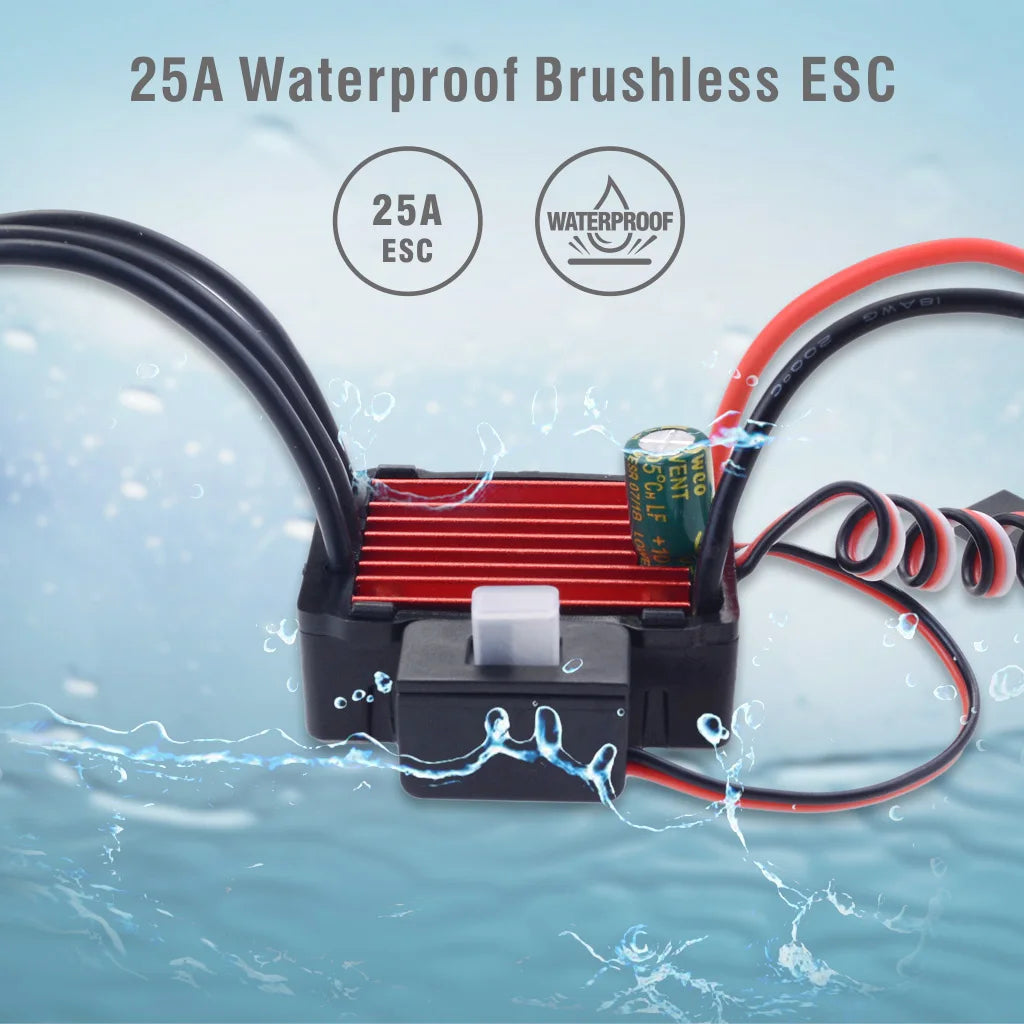

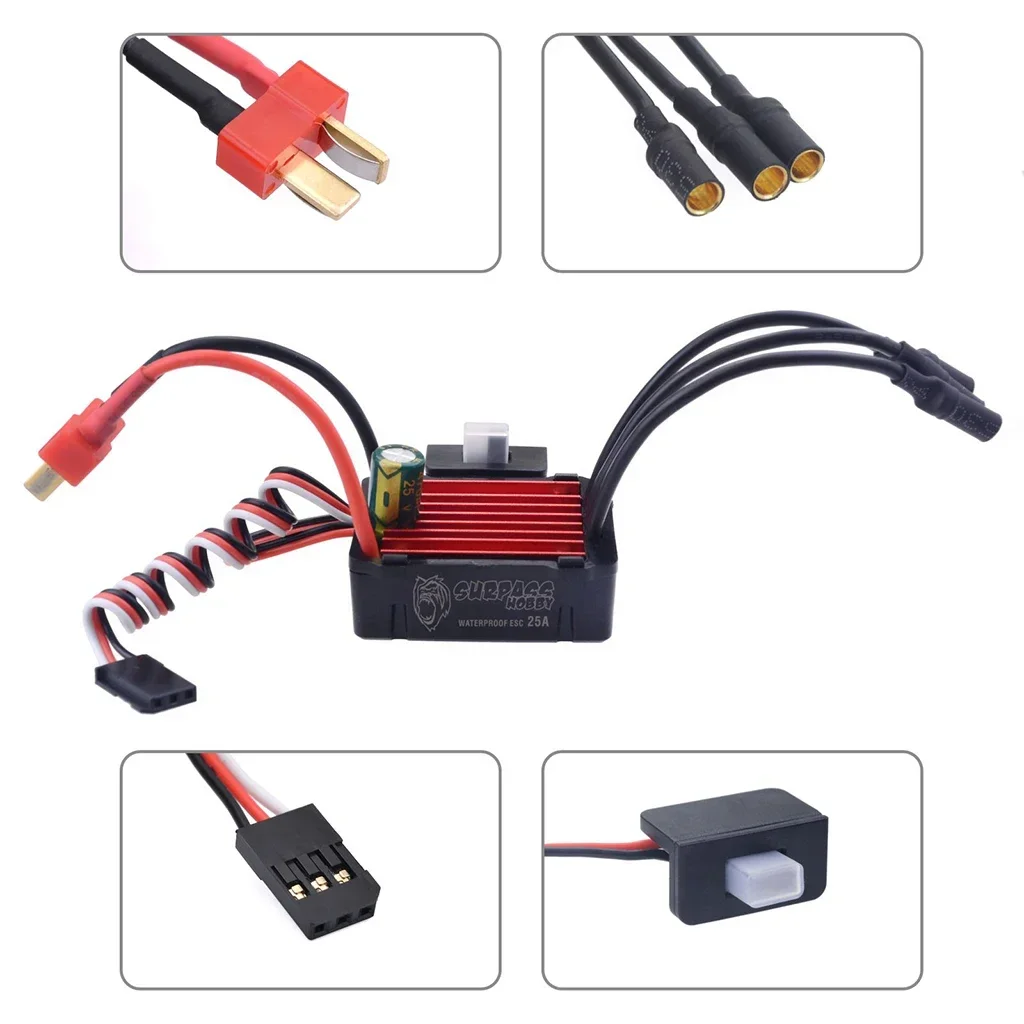

Brand: Surpass Hobby

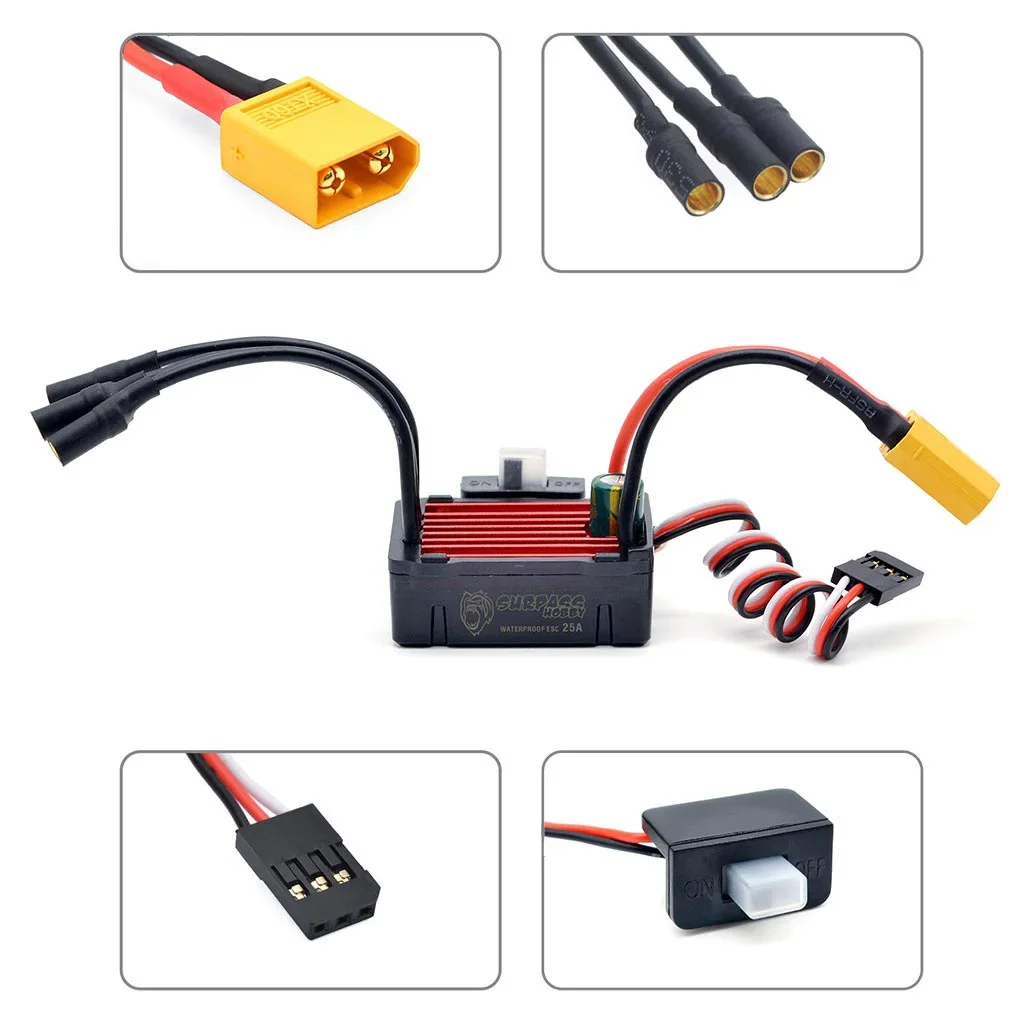

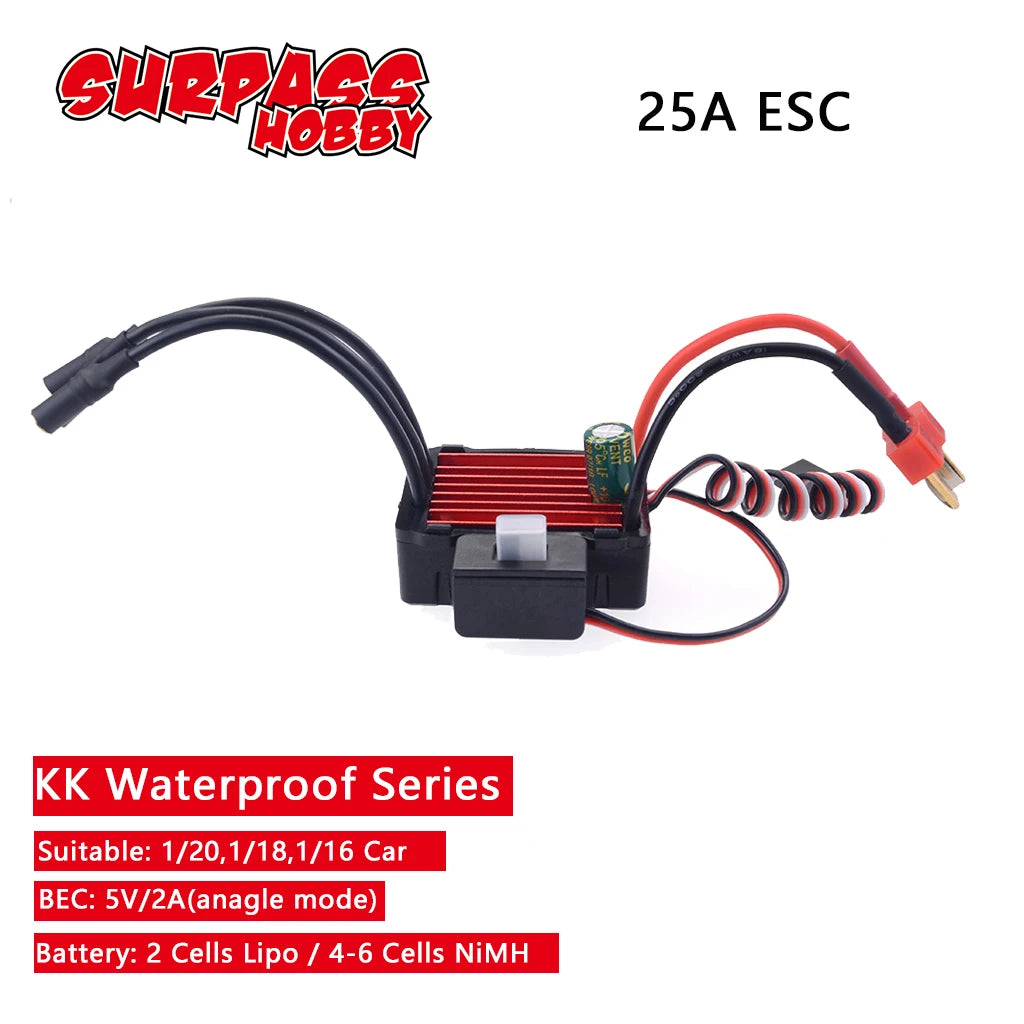

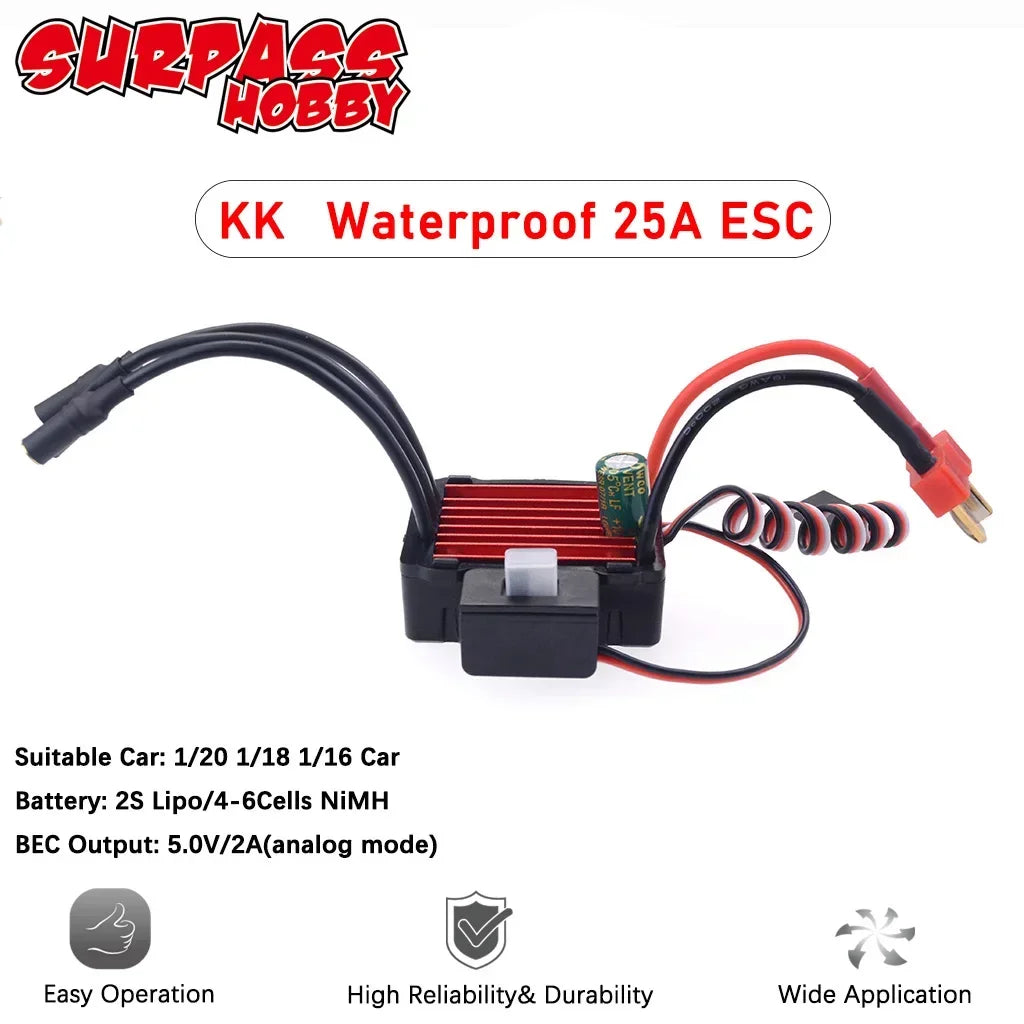

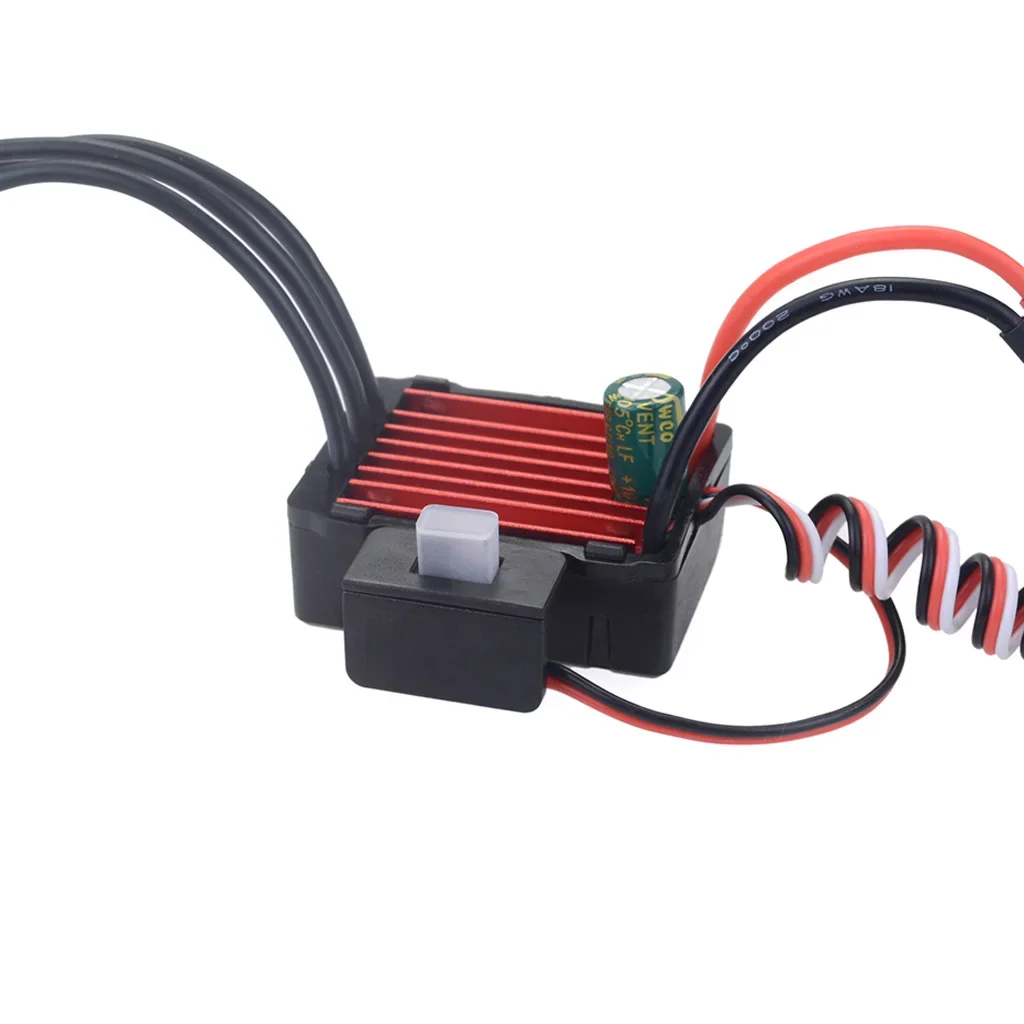

Name: KK 25A ESC
Cont.Current/Burst Current: 25A/100A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1. on-road: 24XX-Size or smaller motor with the KV<7200KV
2. off-road/Buggy/Monster: 24XX-size or smaller motor with the KV <4800KV
Suitable Car: 1/20 1/18 1/16 Car
Resistance: 0.0014ohm
Battery: 2 cells Lipo/4-6 cells NiMH
BEC Output: 5.0V/2A(analog mode)

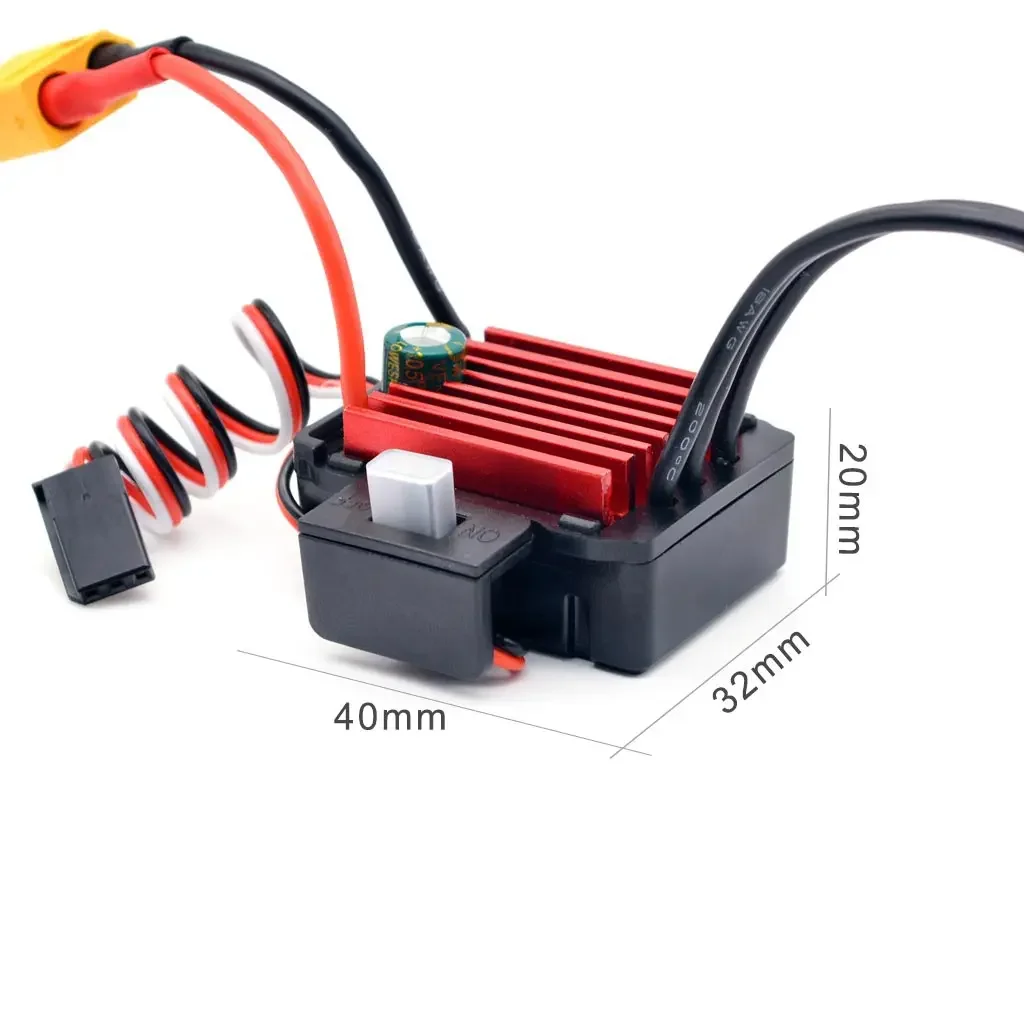

Dimensions/Weight: 40x32x15mm/33g

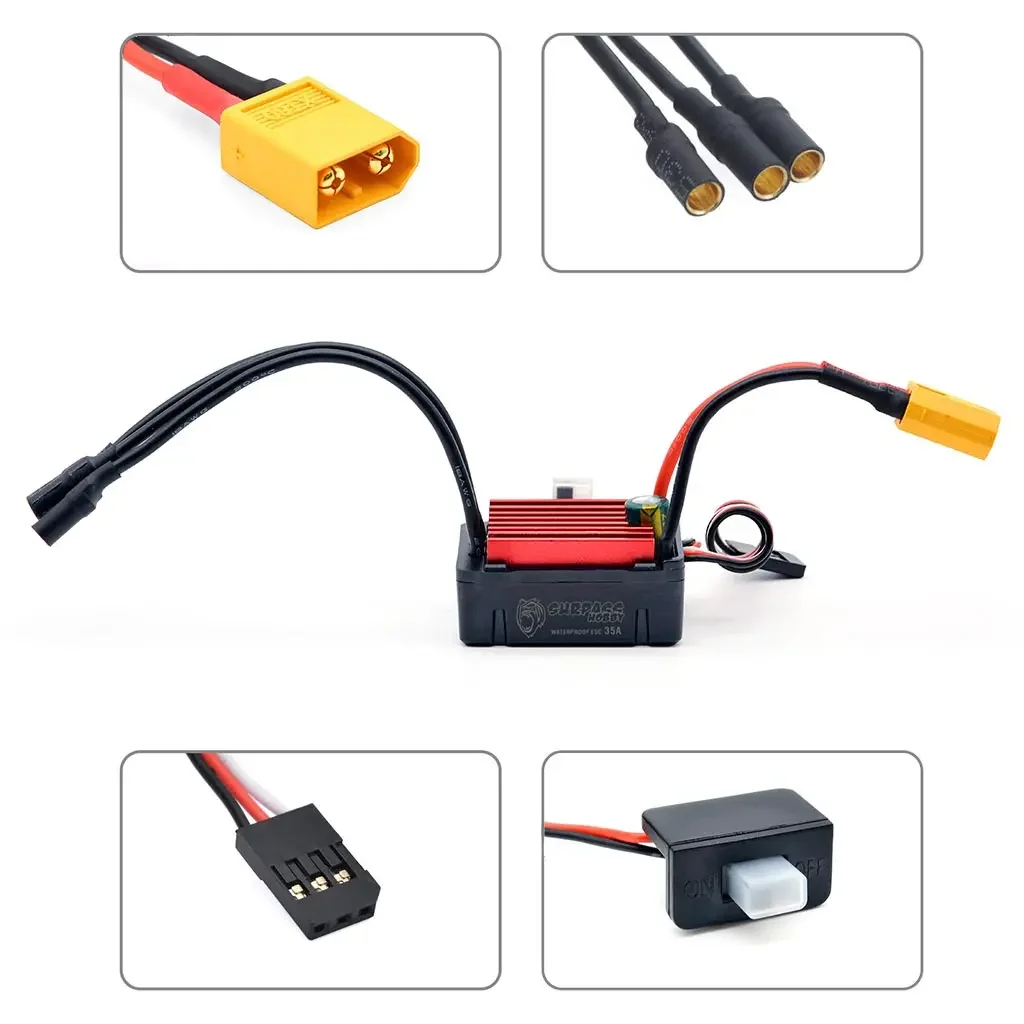

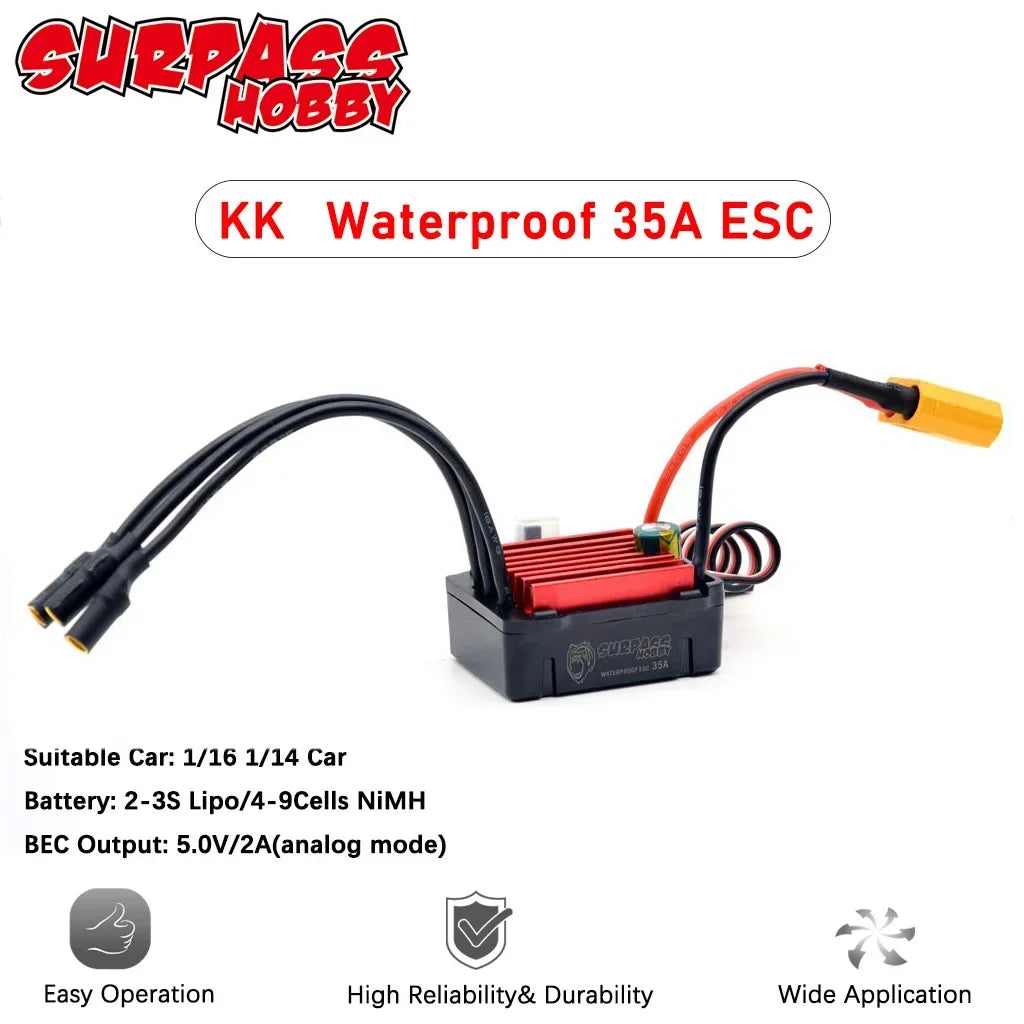

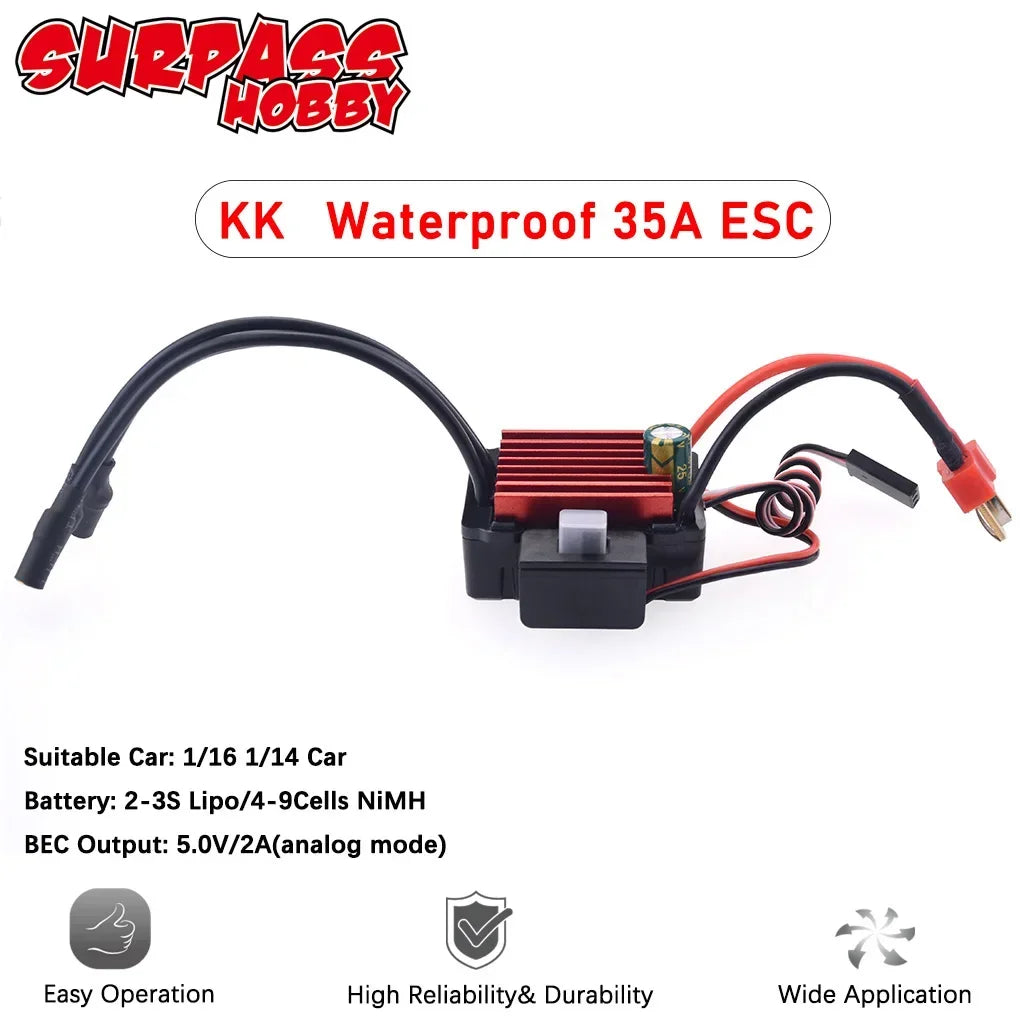

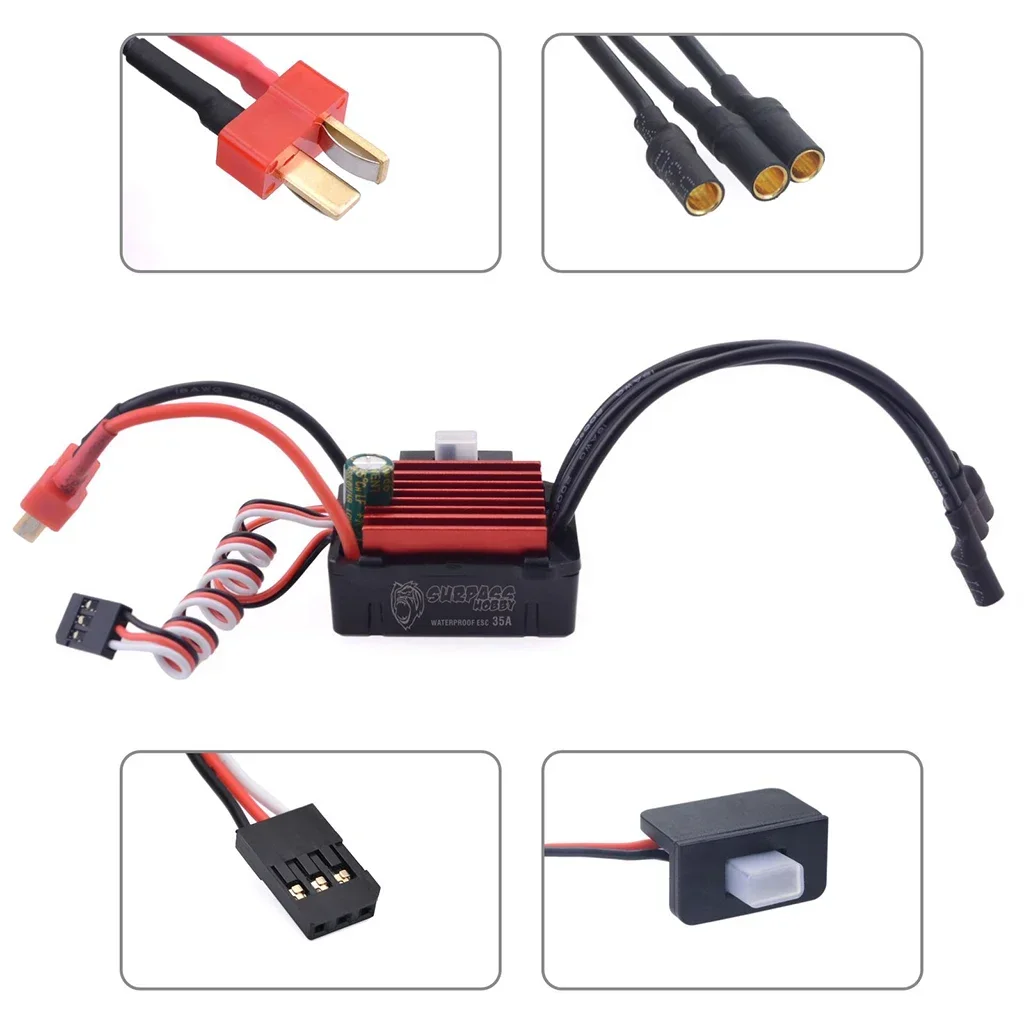

Name:KK 35A ESC
Cont.Current/Burst Current: 35A/120A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<6000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV <4000KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<4000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV <3000KV
Suitable Car: 1/16 1/14 Car
Resistance: 0.0004ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.0V/2A(analog mode)
Dimensions/Weight: 40x32x20mm/37g

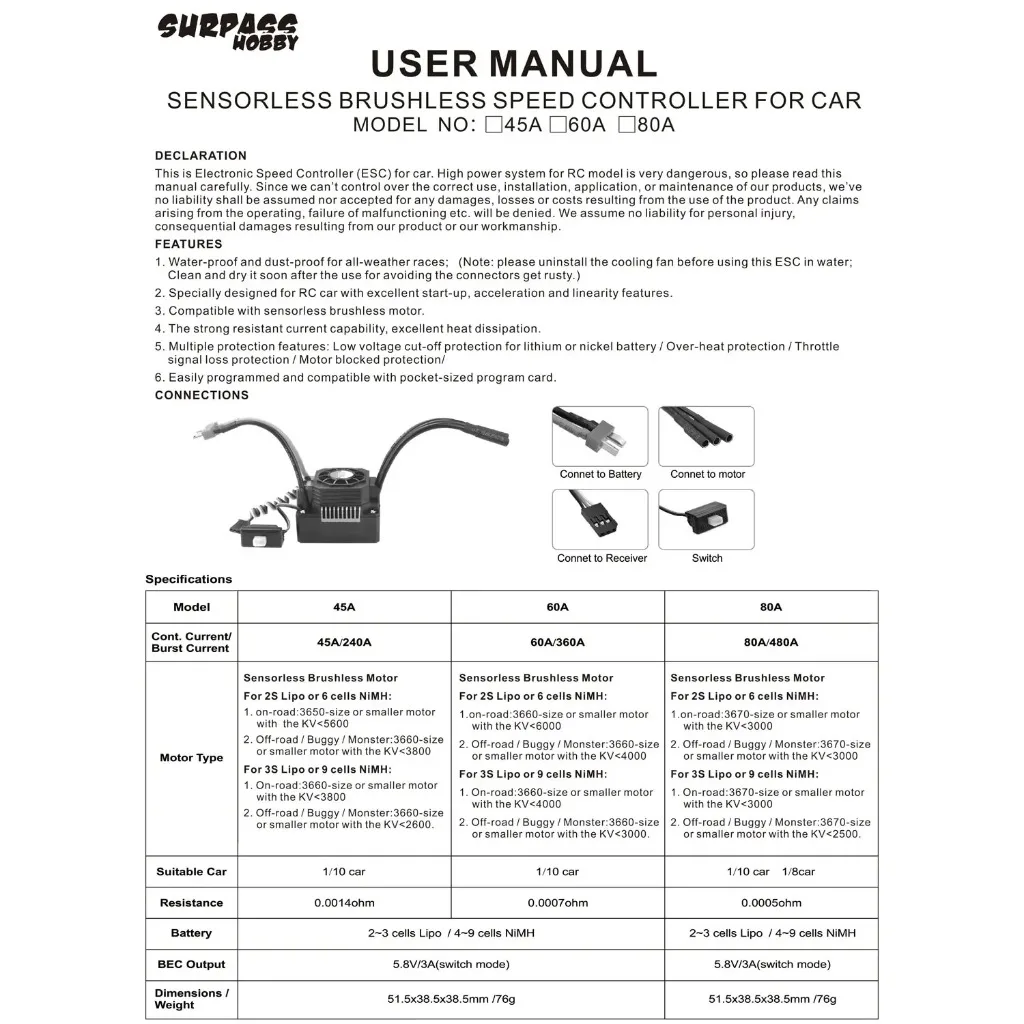

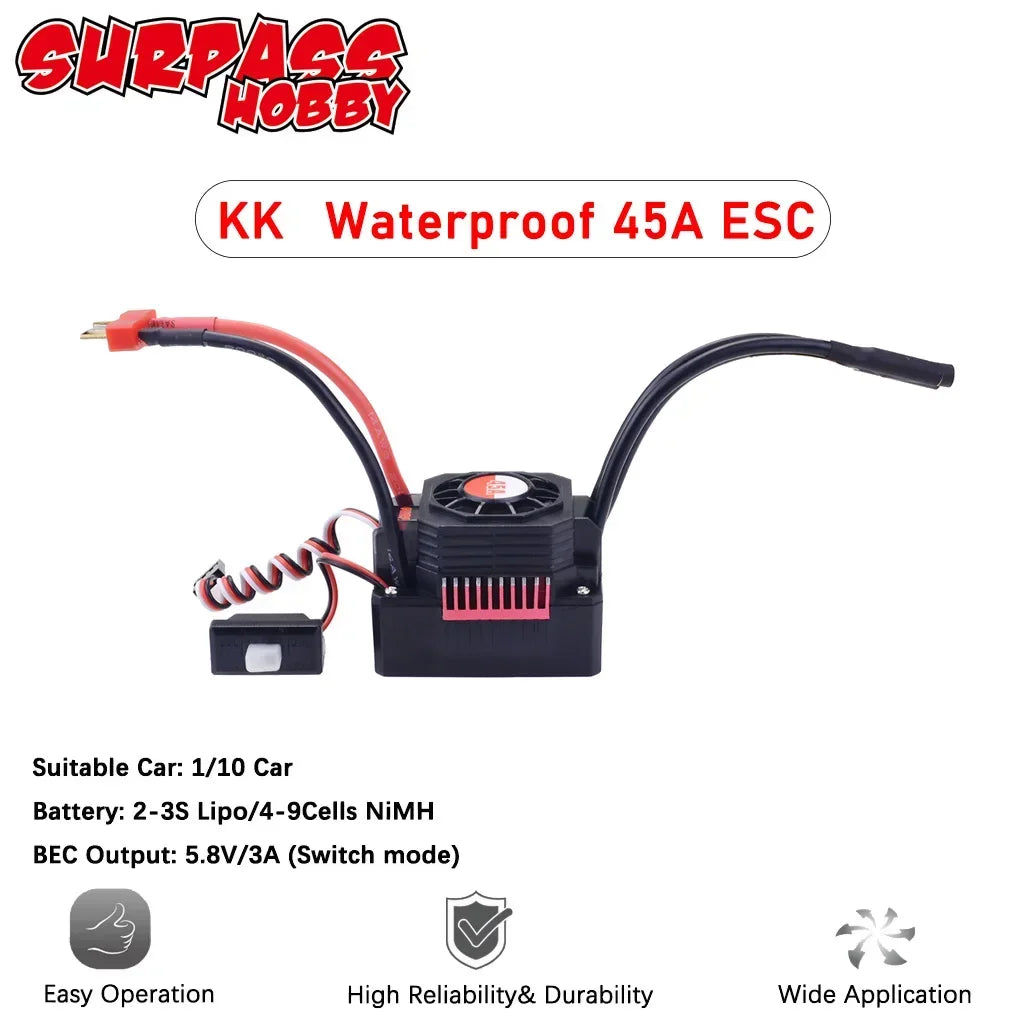

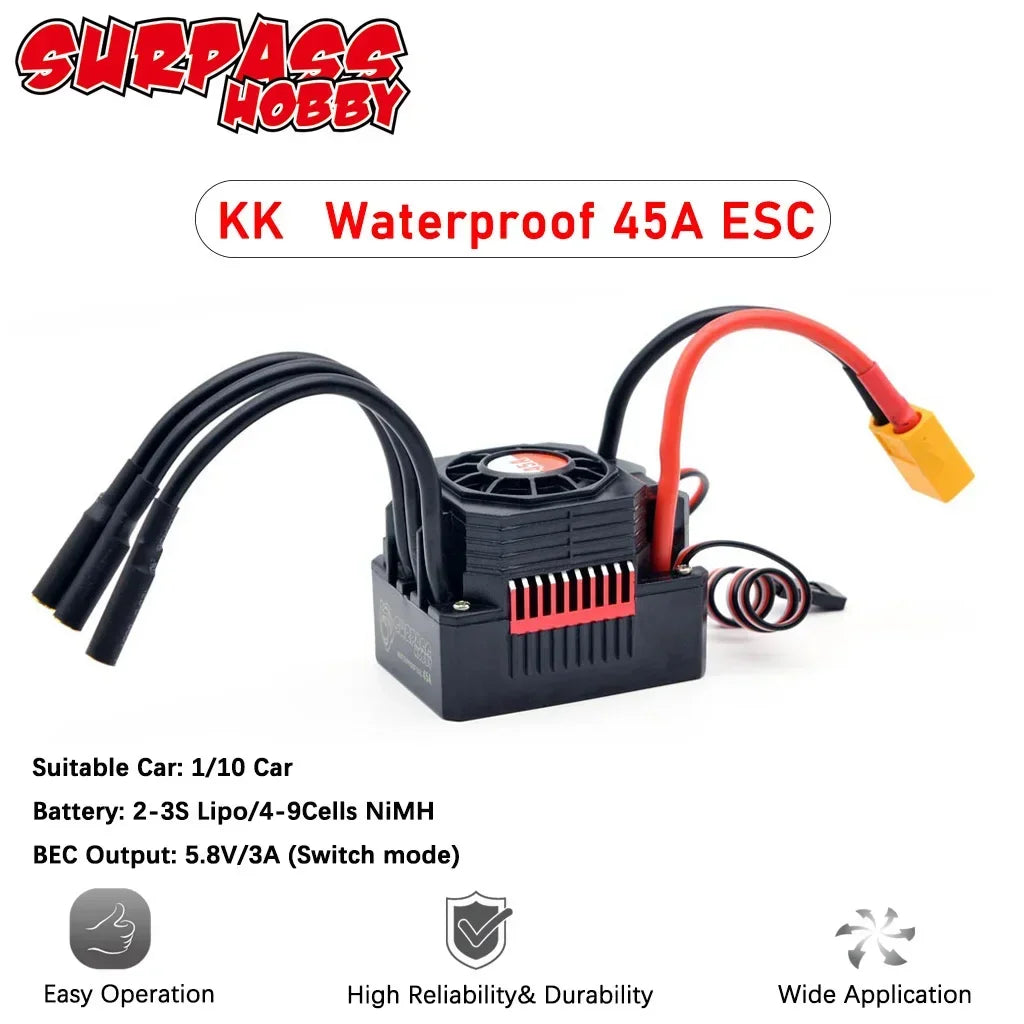

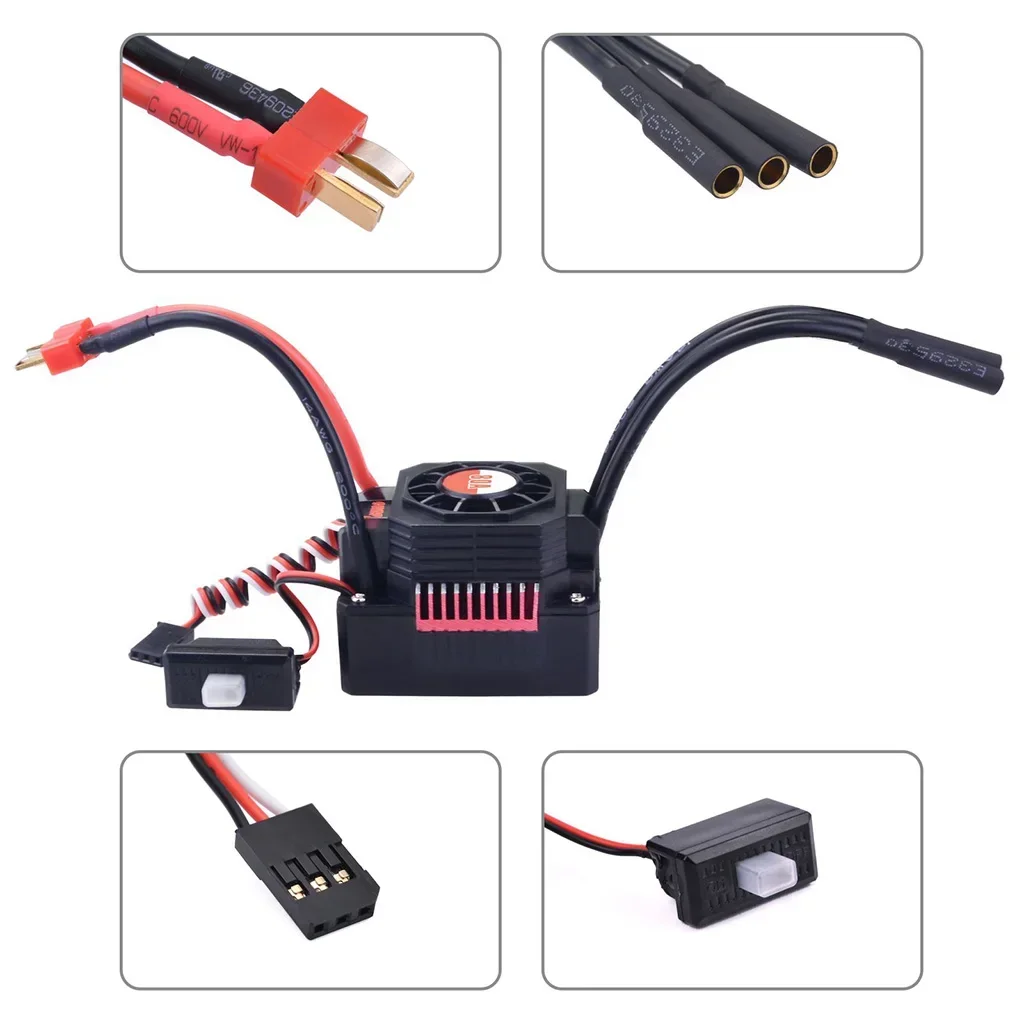

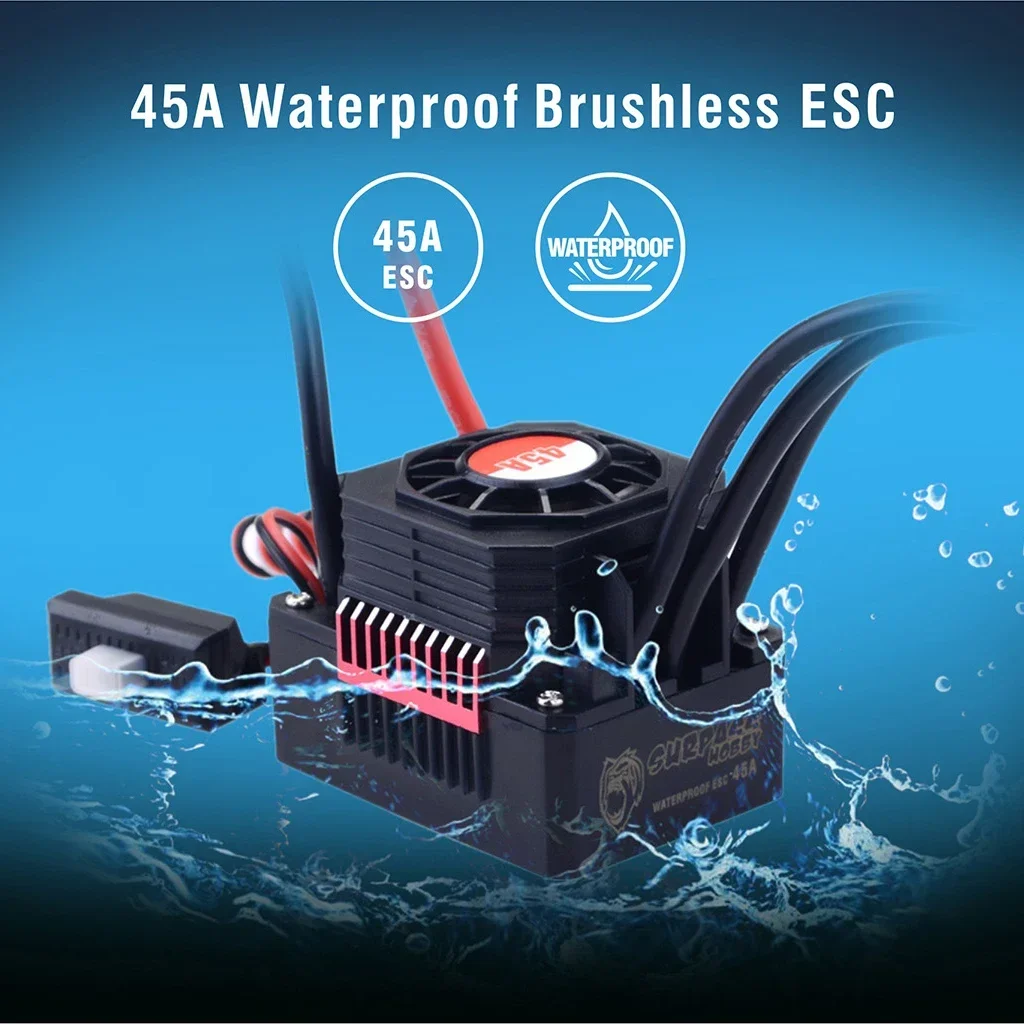

Name: KK 45A ESC
Cont.Current/Burst Current: 45A/240A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 3650-Size or smaller motor with the KV<5600KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <3800KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<3800KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <2600KV
Suitable Car: 1/10 Car
Resistance: 0.0014ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.8V/3A (Switch mode)

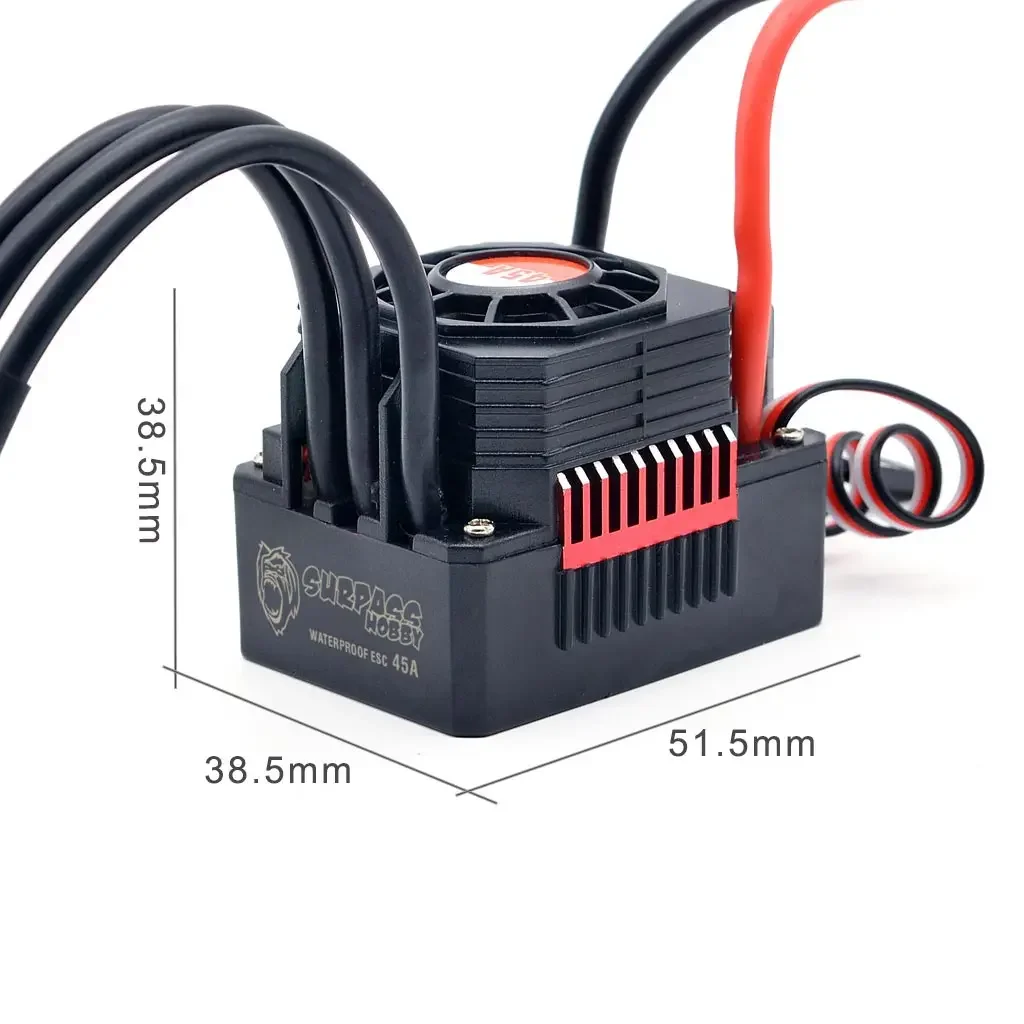

Dimensions/Weight: 51.5x68.5x38.5mm/76g

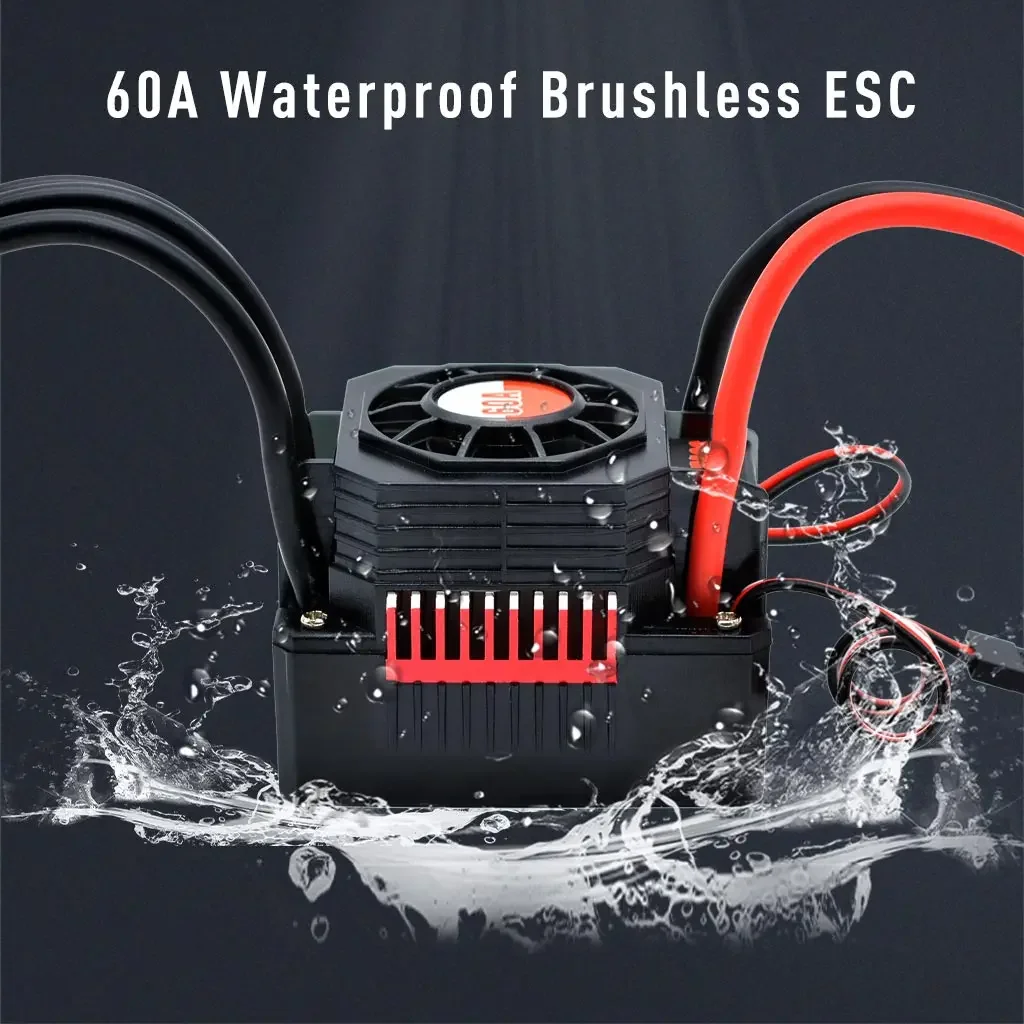

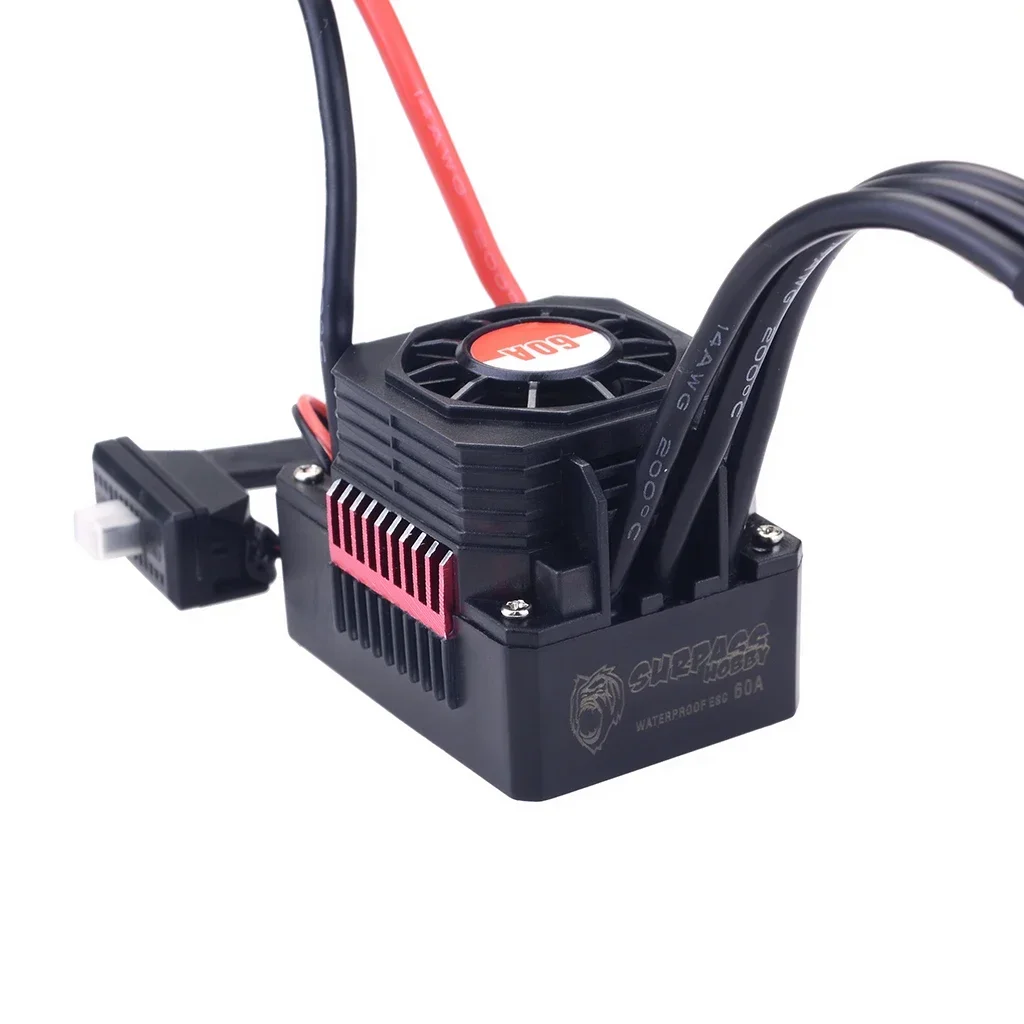

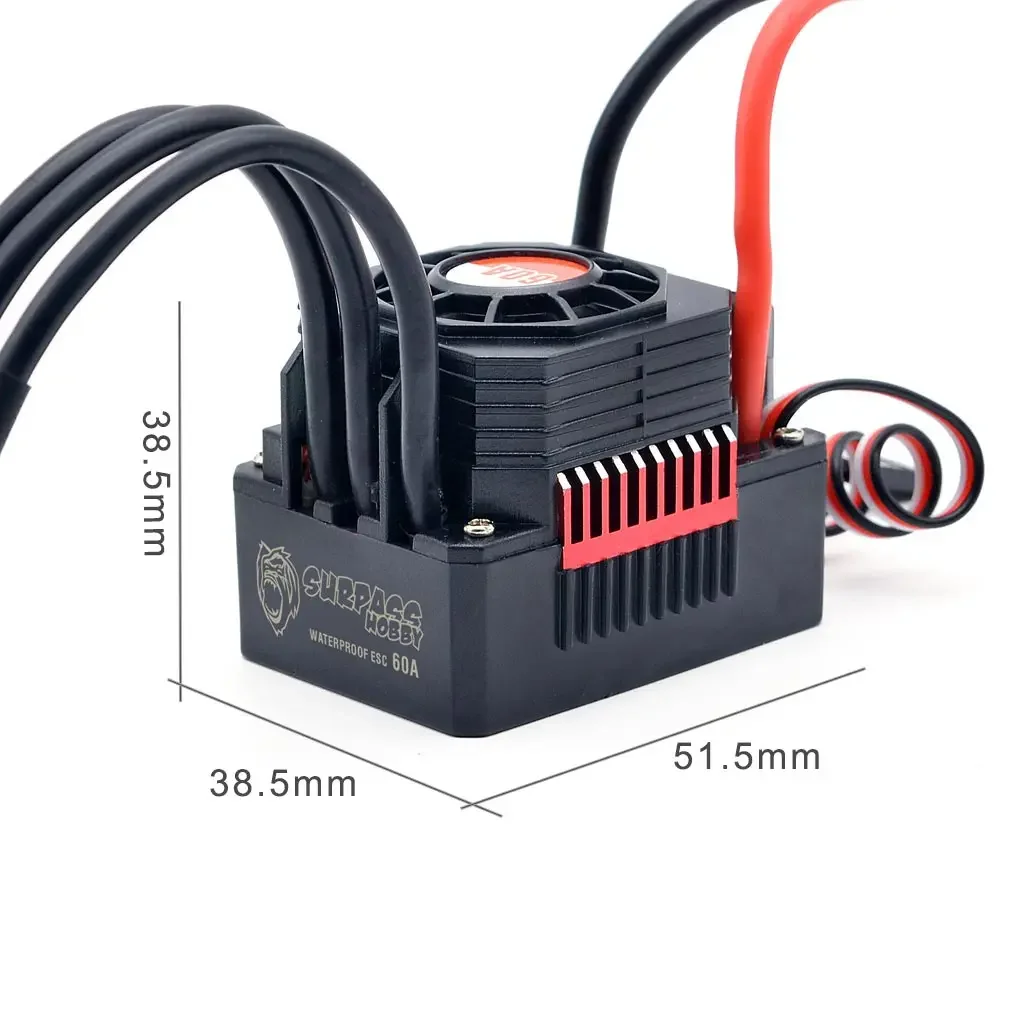

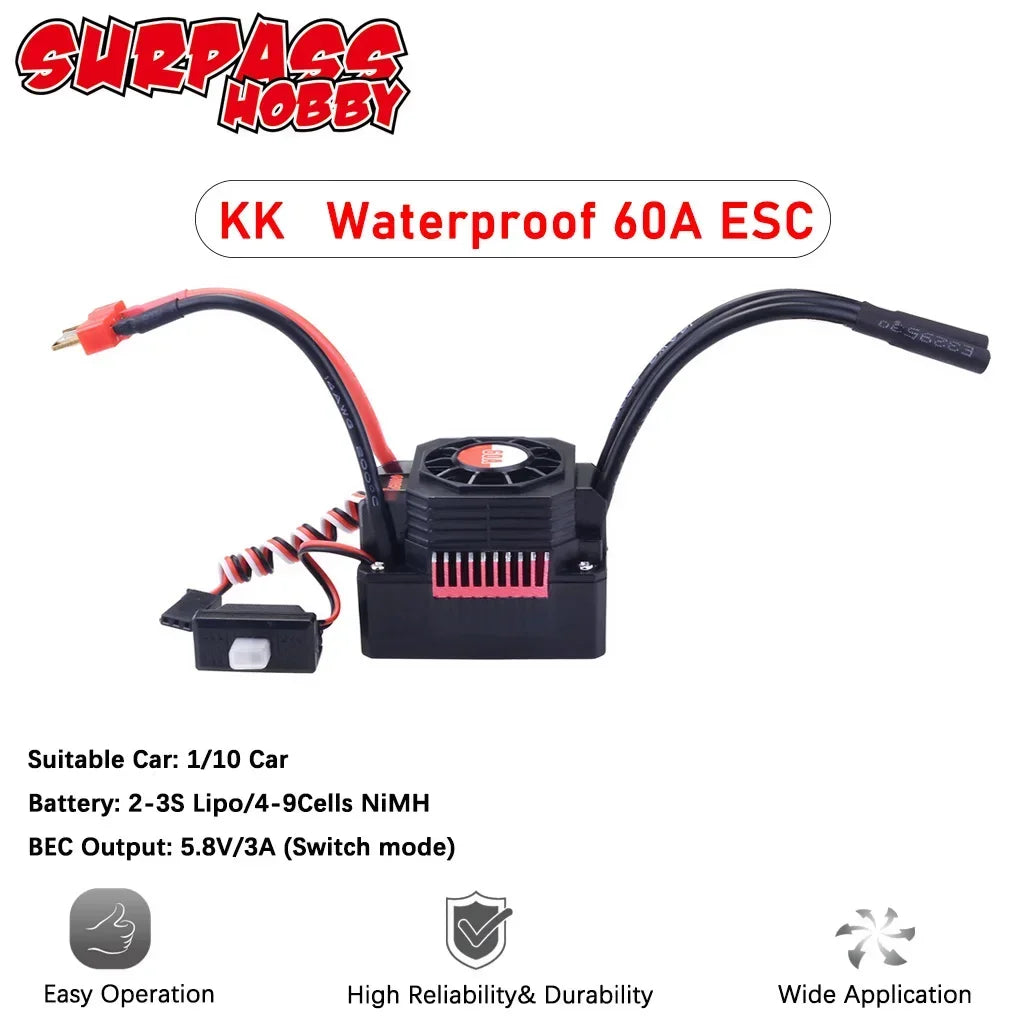

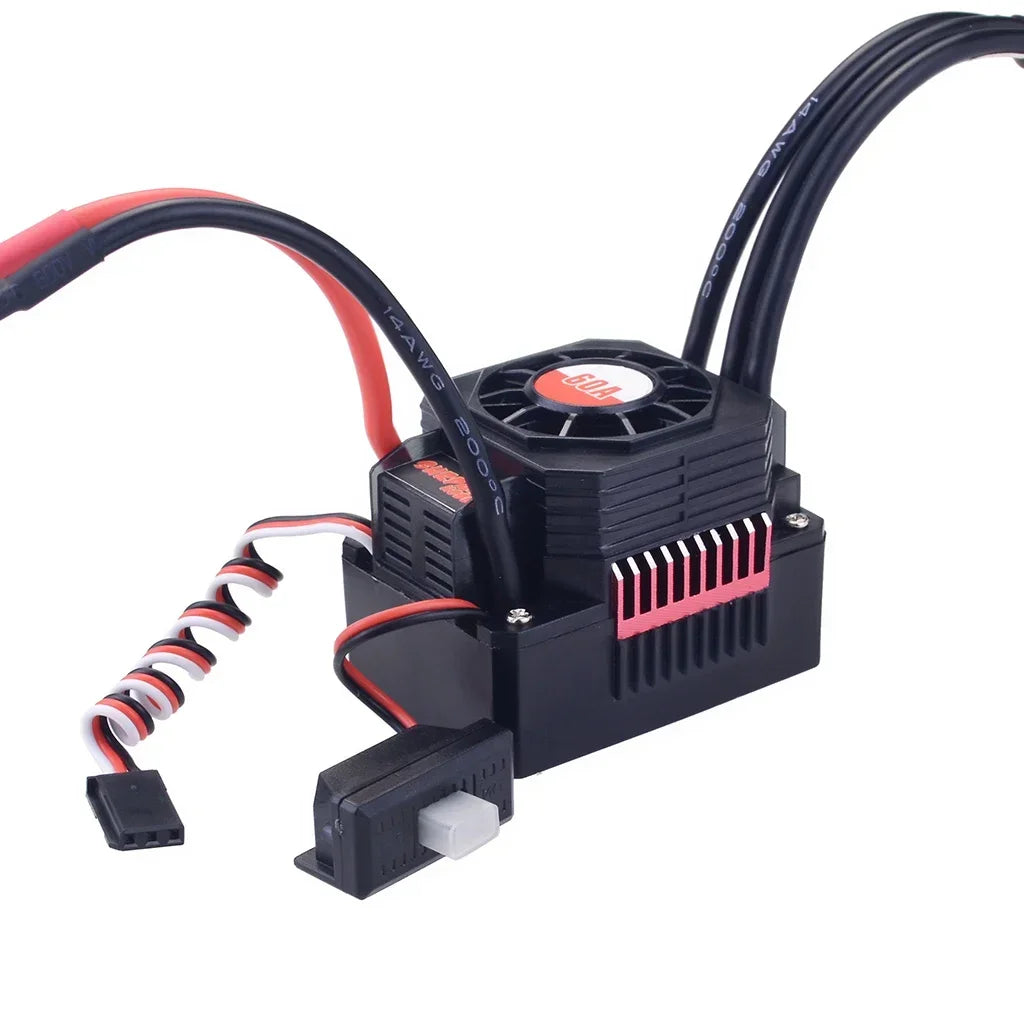

Name:KK 60A ESC
Cont.Current/Burst Current: 60A/360A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<6000KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <4000KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<4000KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <3000KV
Suitable Car: 1/10 Car
Resistance: 0.0007ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.8V/3A (Switch mode)
Dimensions/Weight: 51.5x68.5x38.5mm/76g

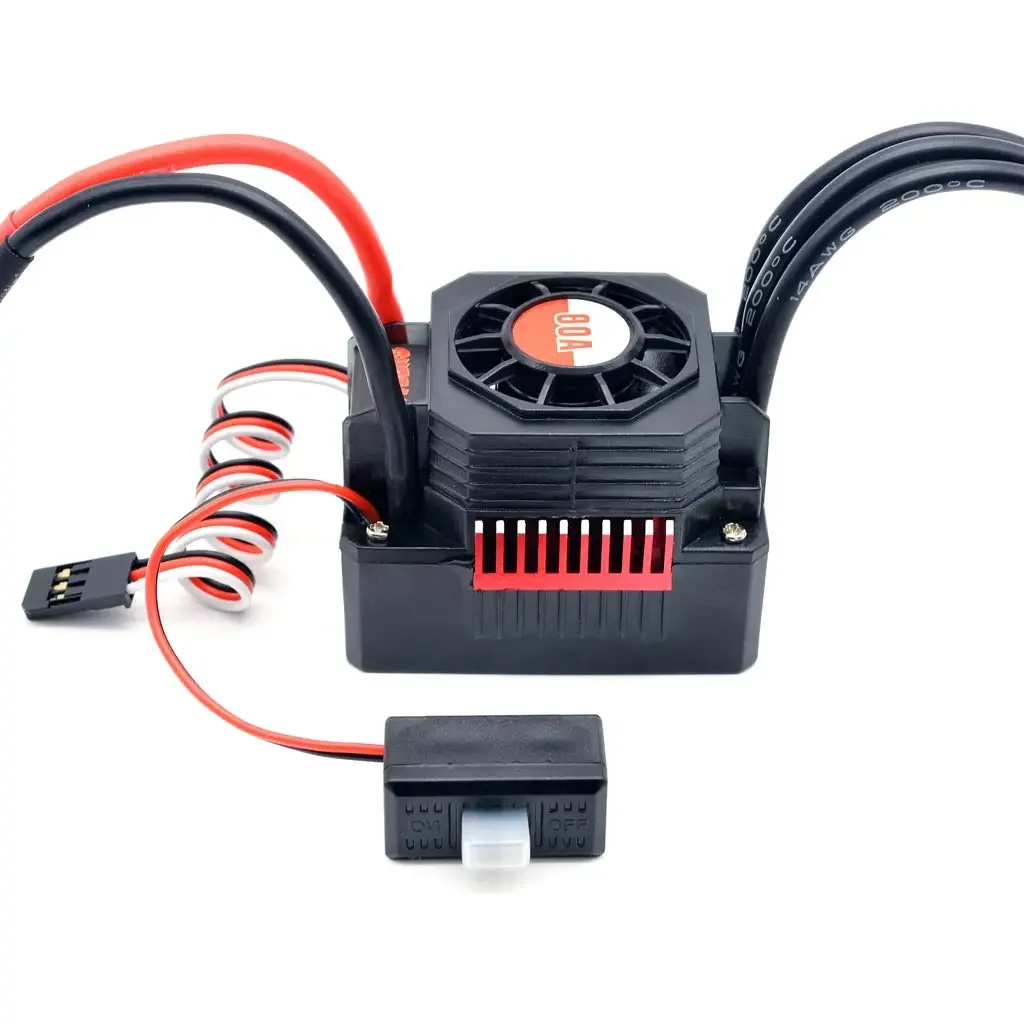

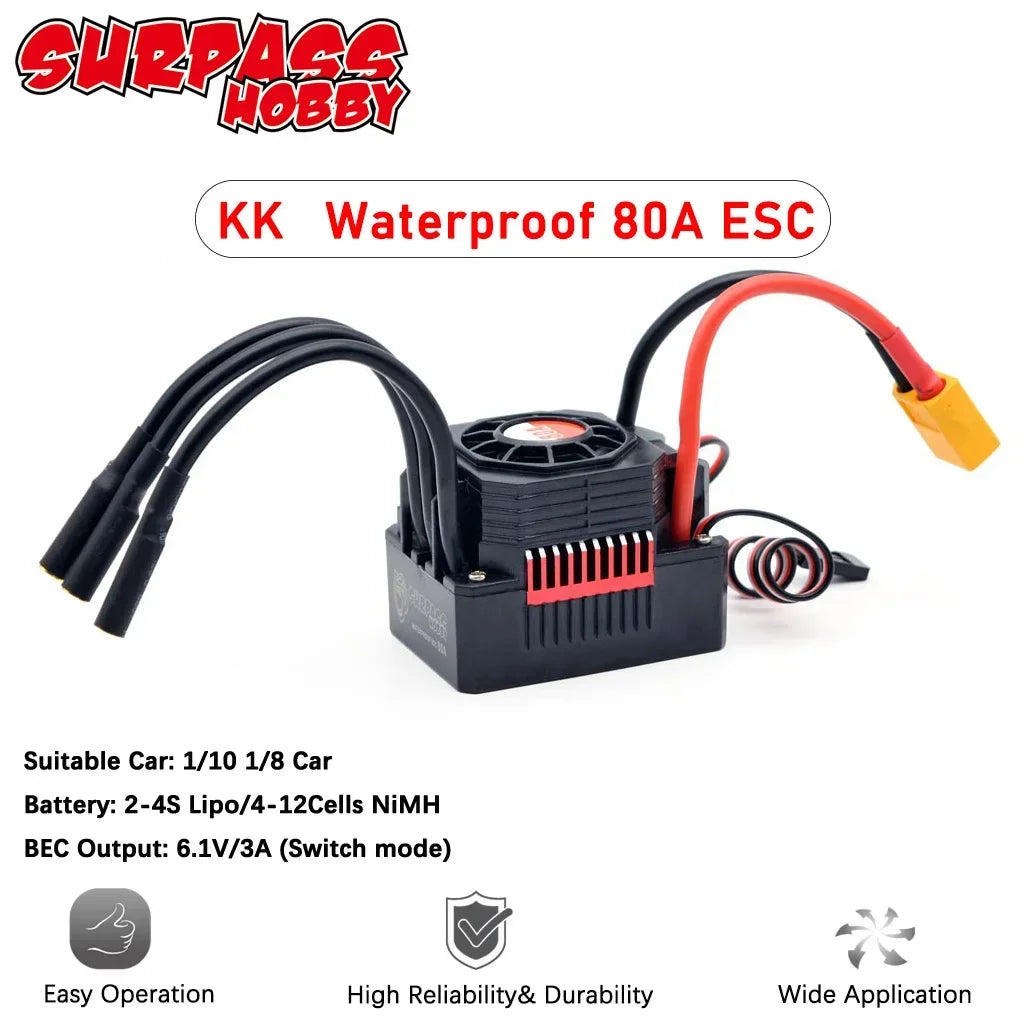

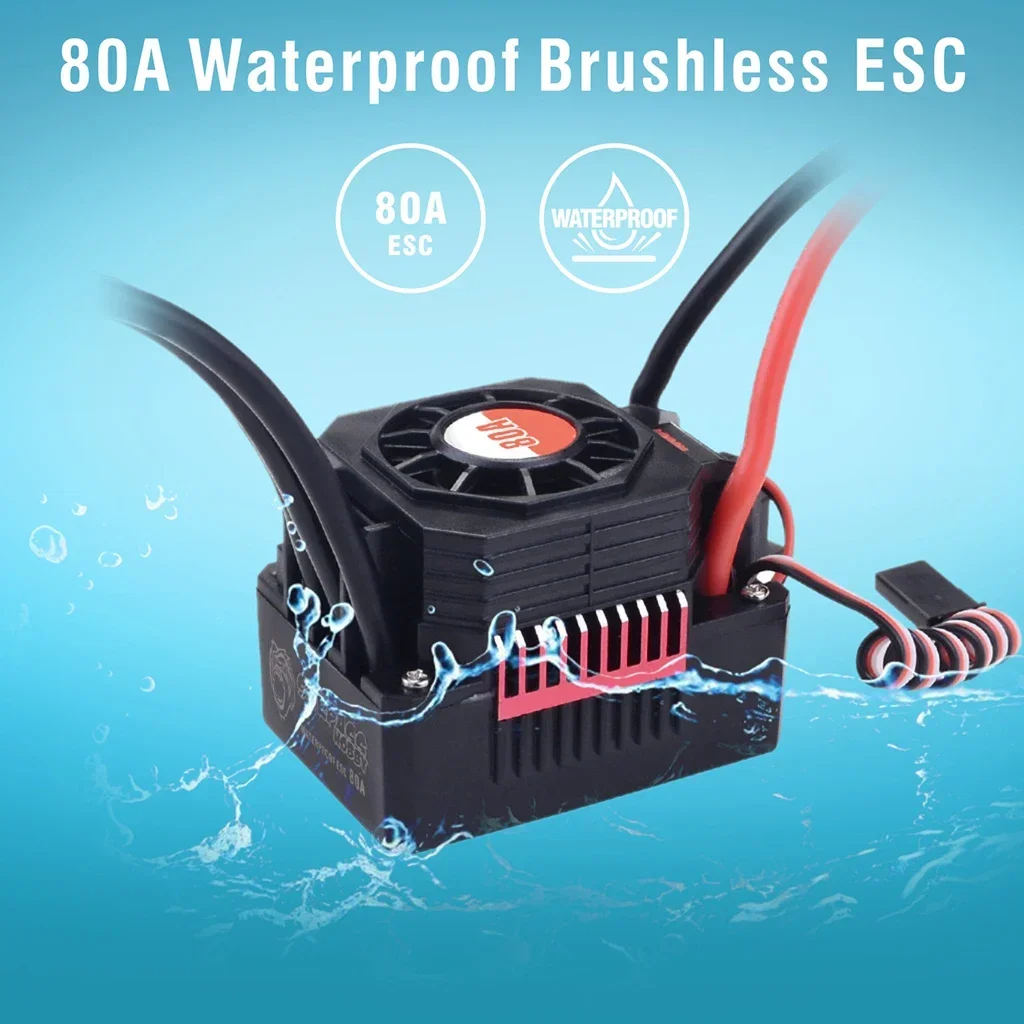

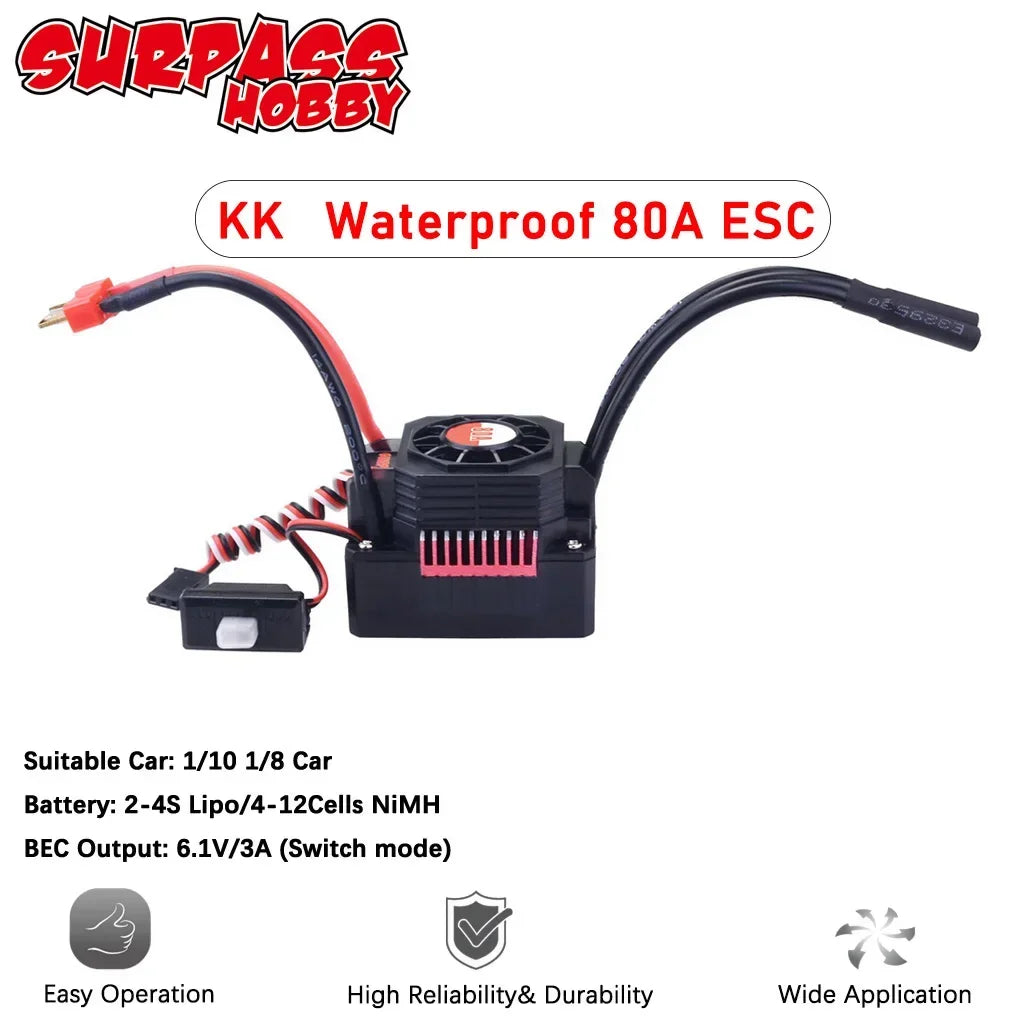

Name: KK 80A ESC
Cont.Current/Burst Current: 80A/480A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 3670-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3670-size or smaller motor with the KV <3000KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <2500KV
Suitable Car: 1/10 1/8 Car
Resistance: 0.0005ohm
Battery: 2-4S Lipo/4-12Cells NiMH
BEC Output: 6.1V/3A (Switch mode)
Dimensions/Weight: 51.5x68.5x38.5mm/84g

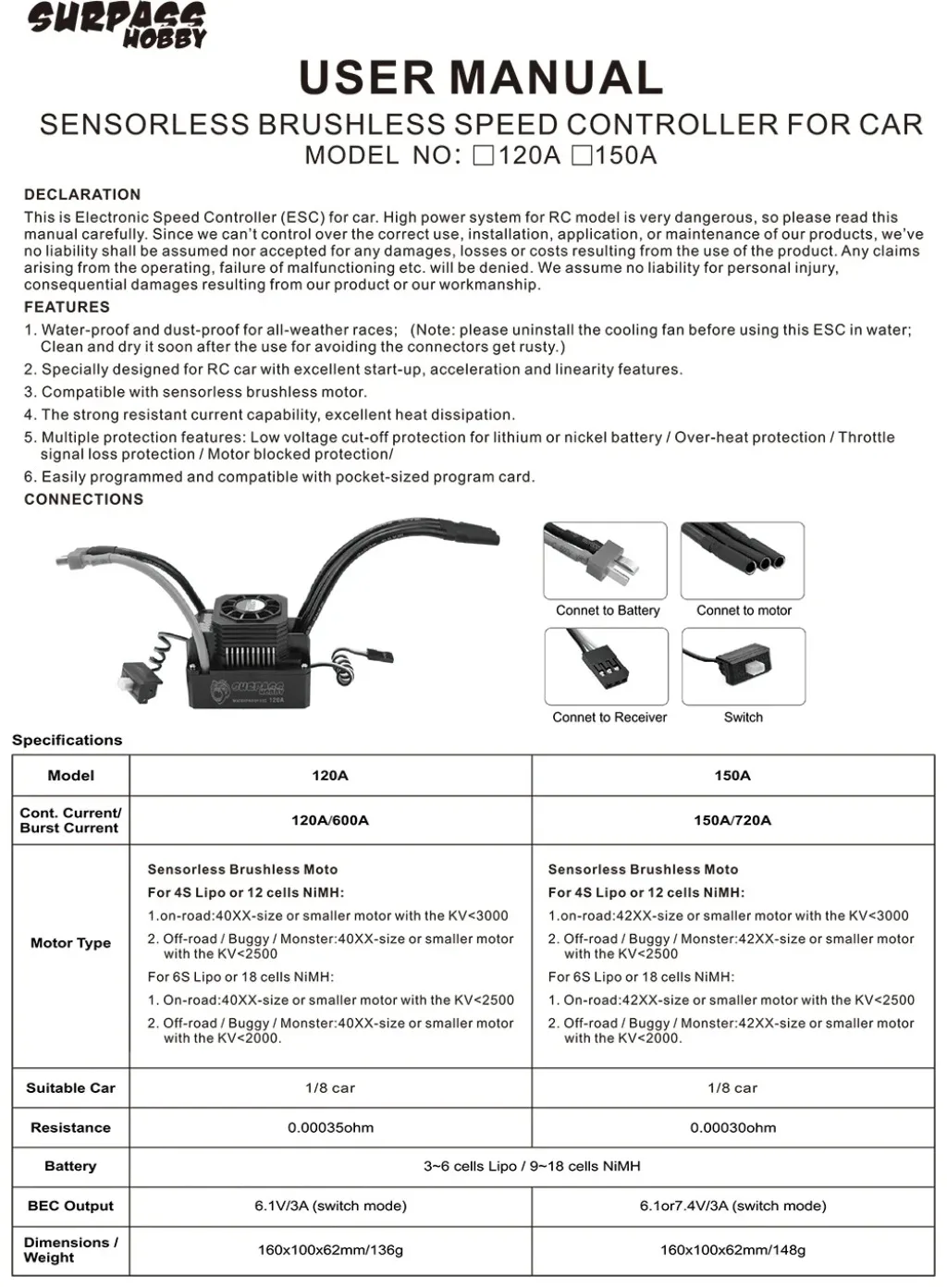

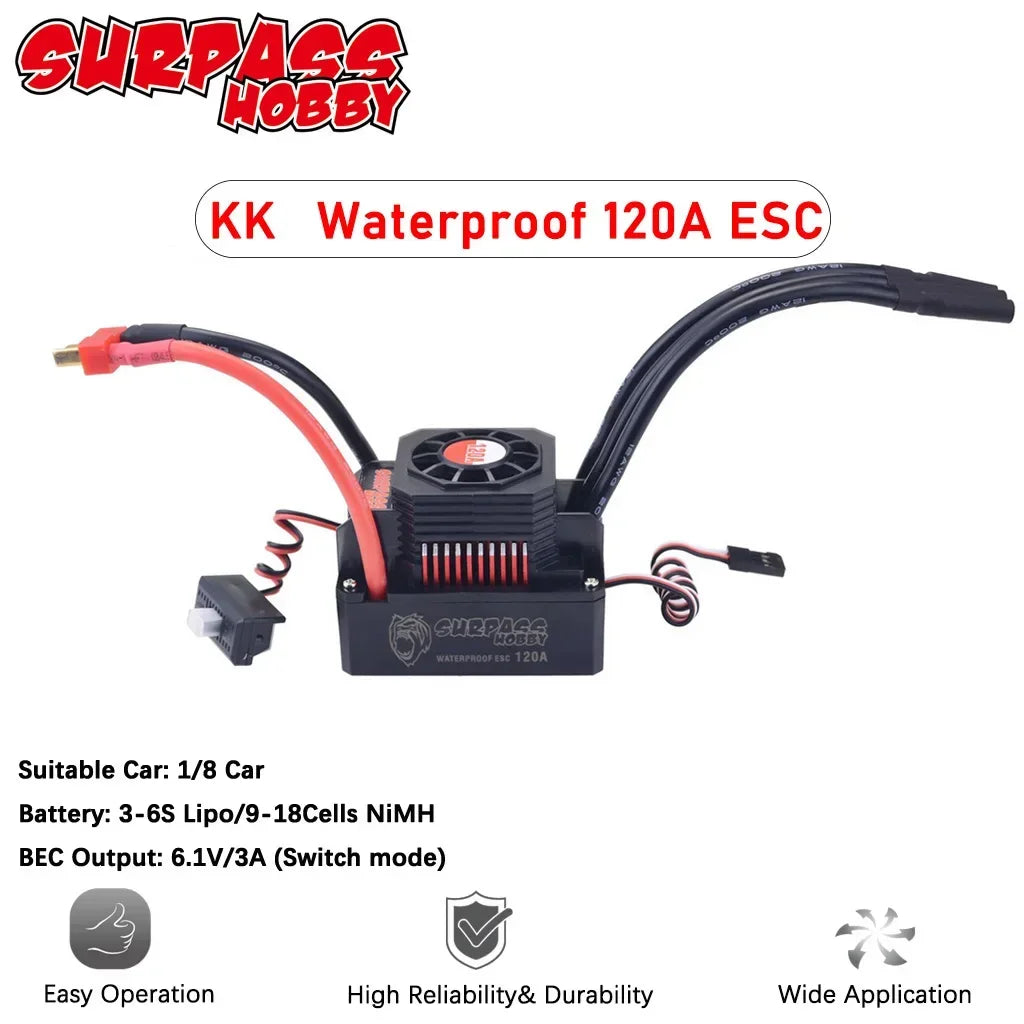

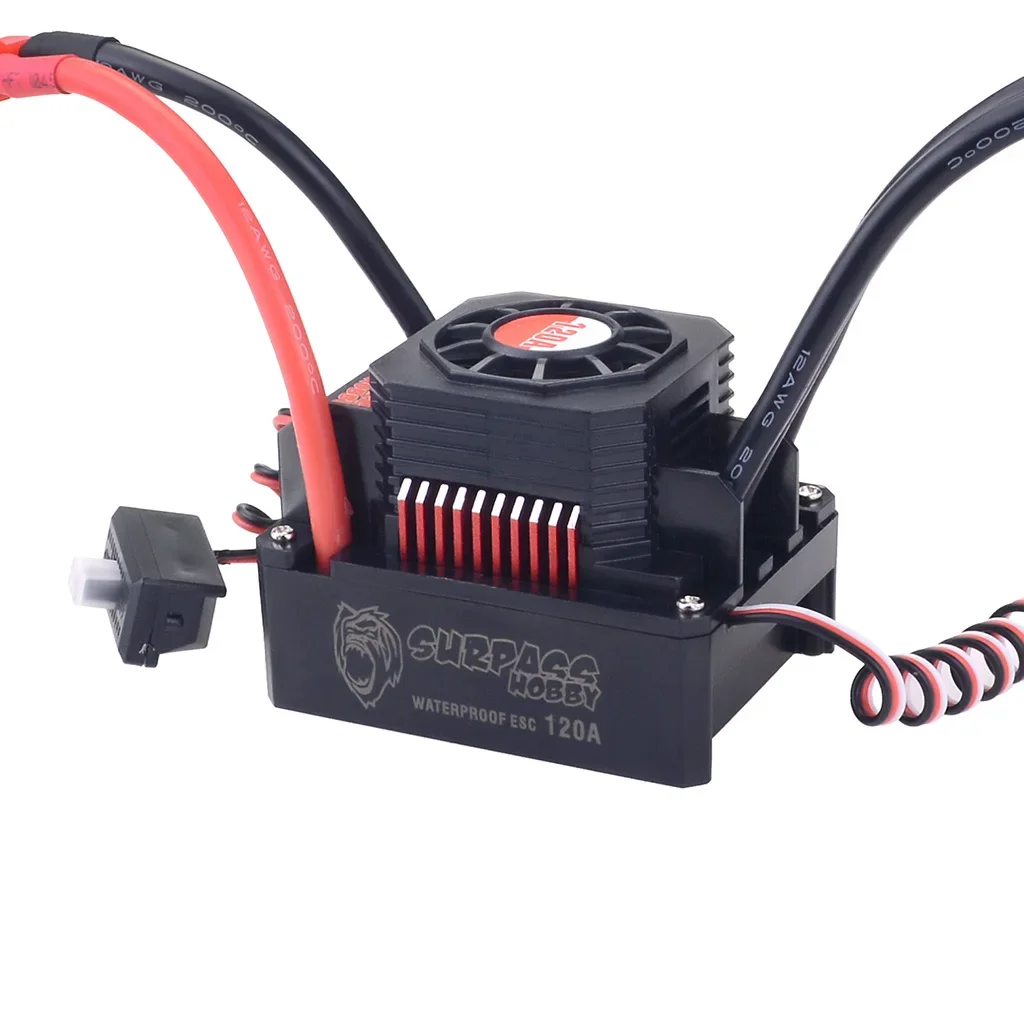

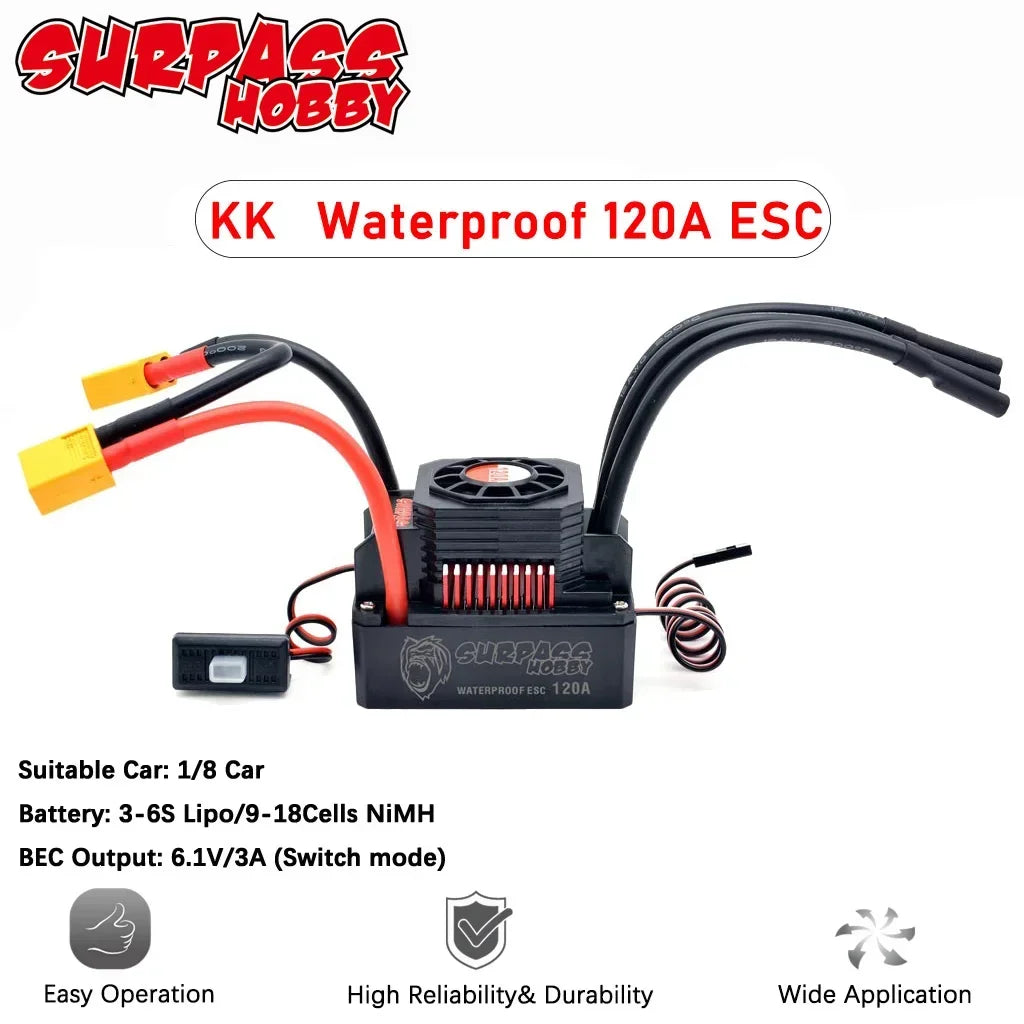

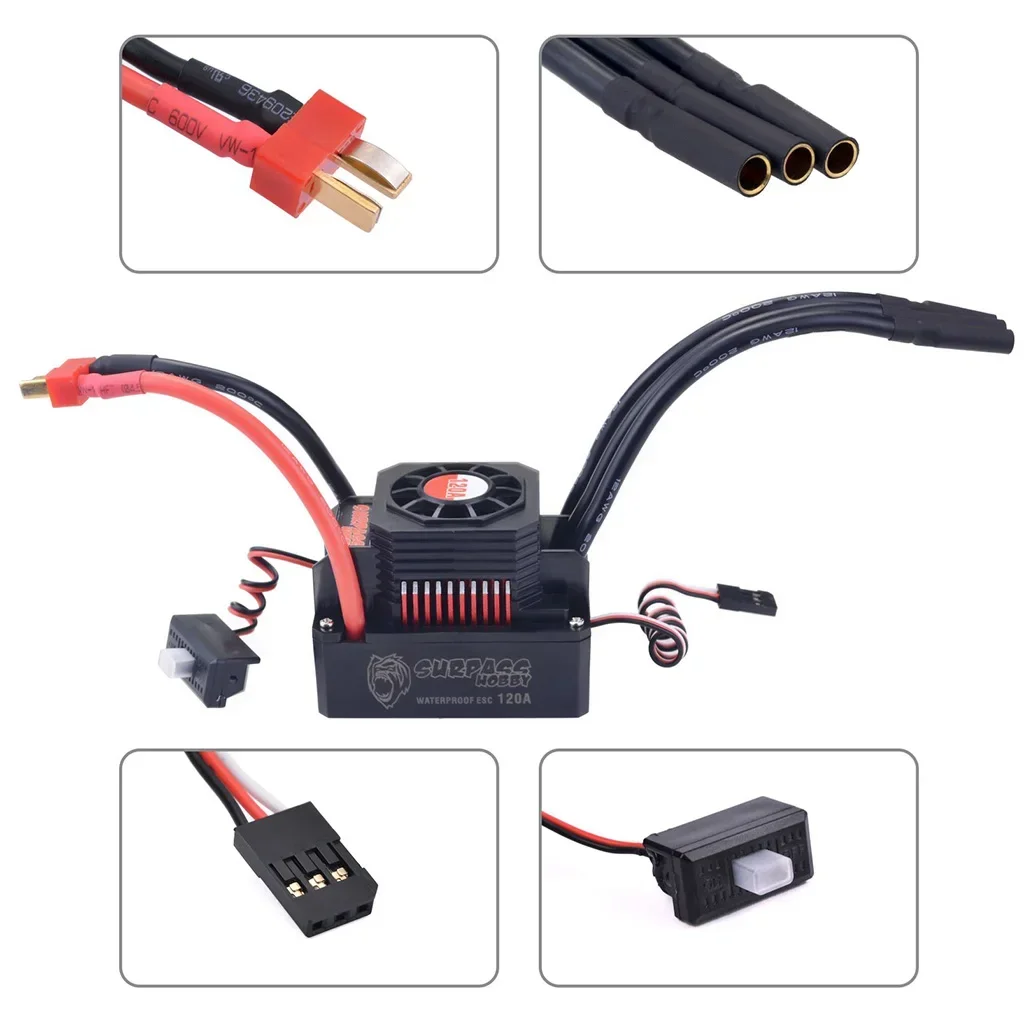

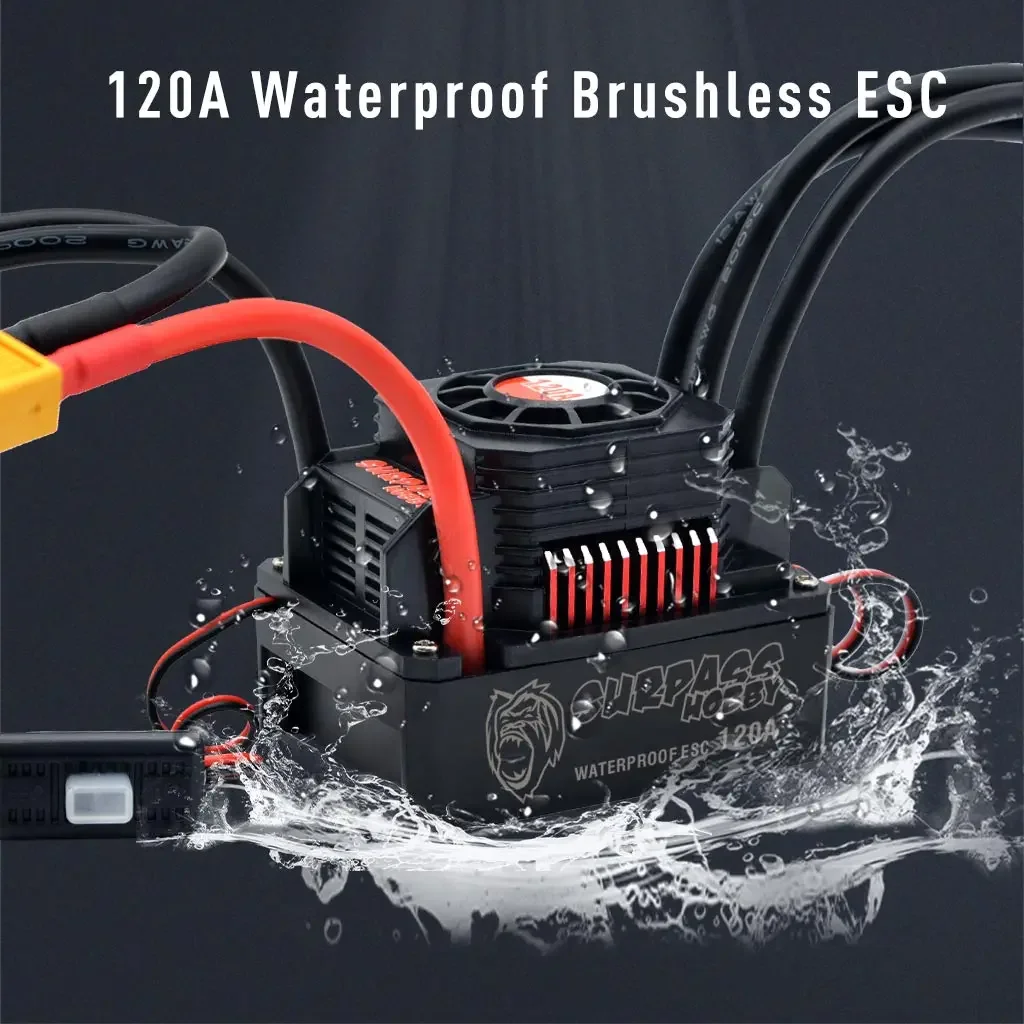

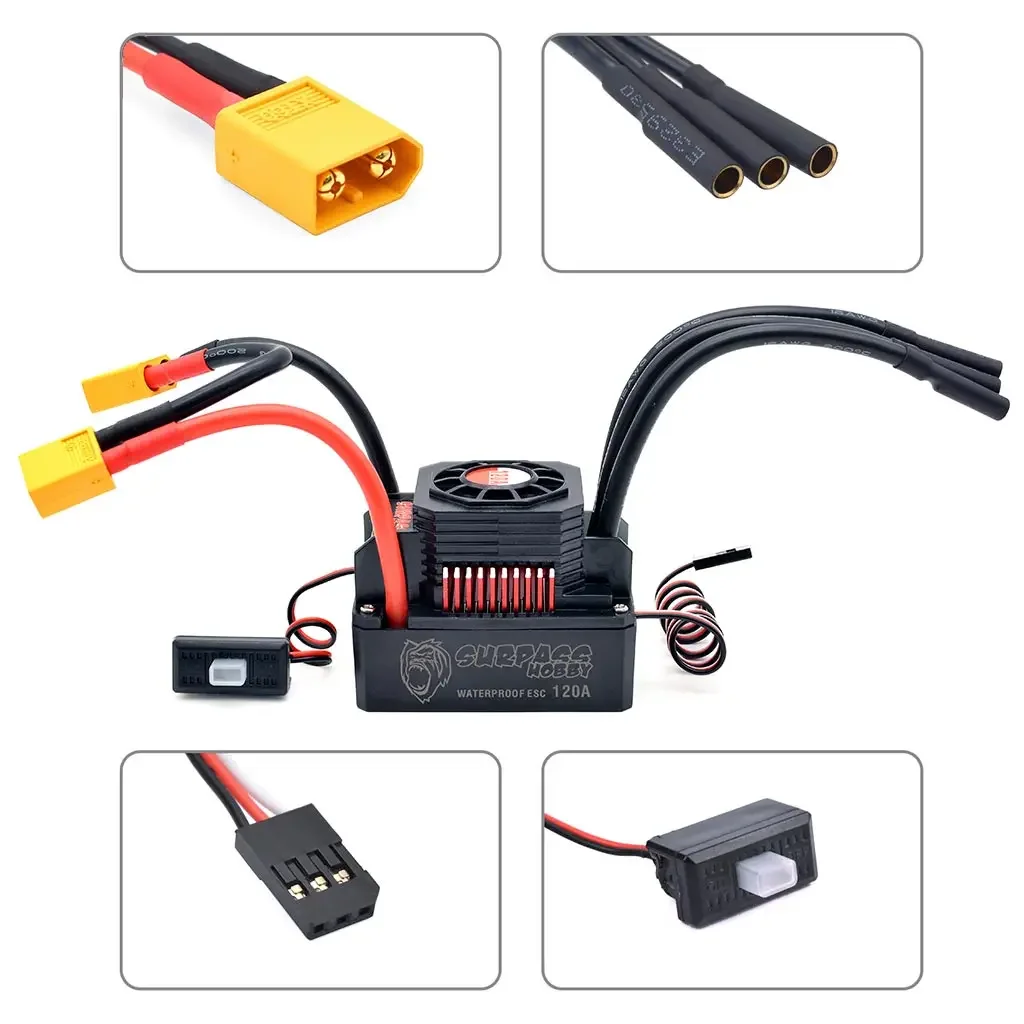

Name: KK 120A ESC
Cont.Current/Burst Current: 120A/600A
Motor Type: Sensorless Brushless Motor
for 4S Lipo or 12 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2500KV
for 6S Lipo or 18 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<2500KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2000KV
Suitable Car: 1/8 Car
Resistance: 0.00035ohm
Battery: 3-6S Lipo/9-18Cells NiMH
BEC Output: 6.1V/3A (Switch mode)
Dimensions/Weight: 160x100x62mm/135g

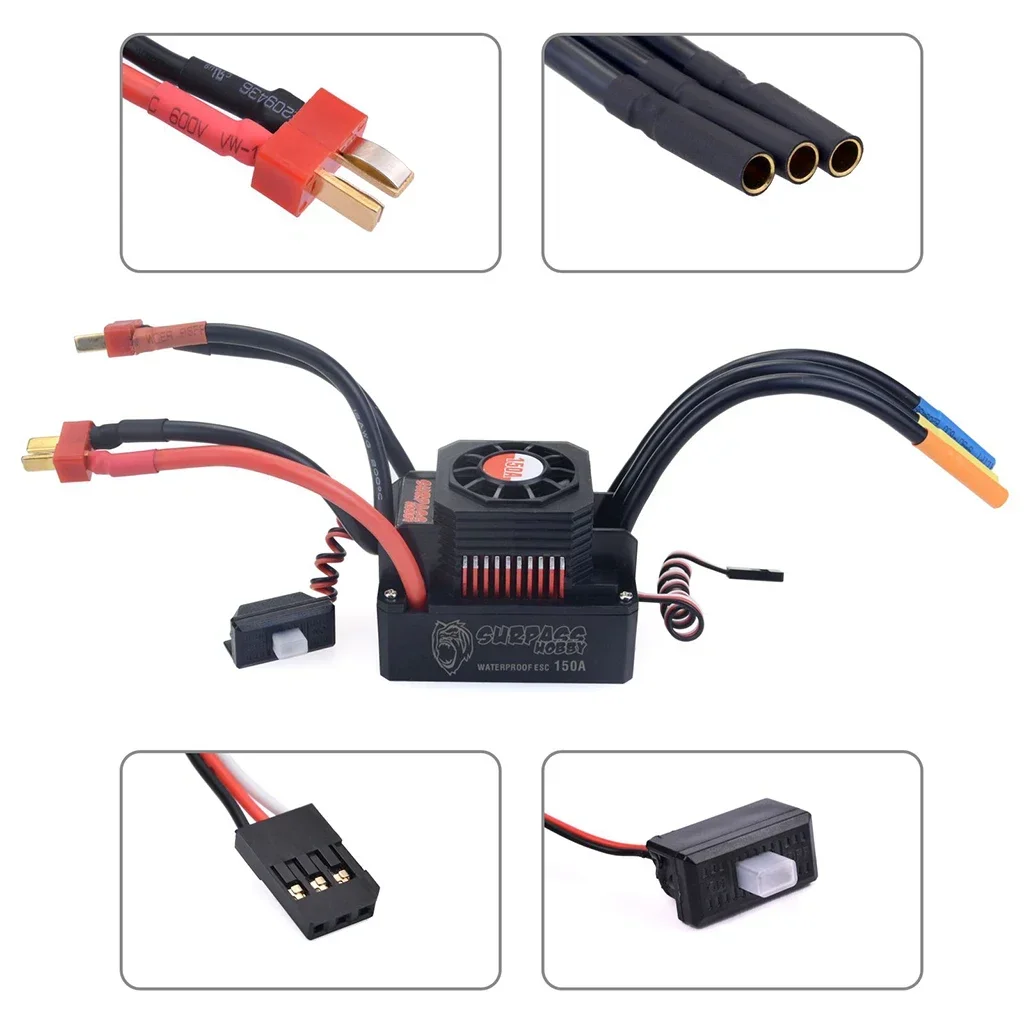

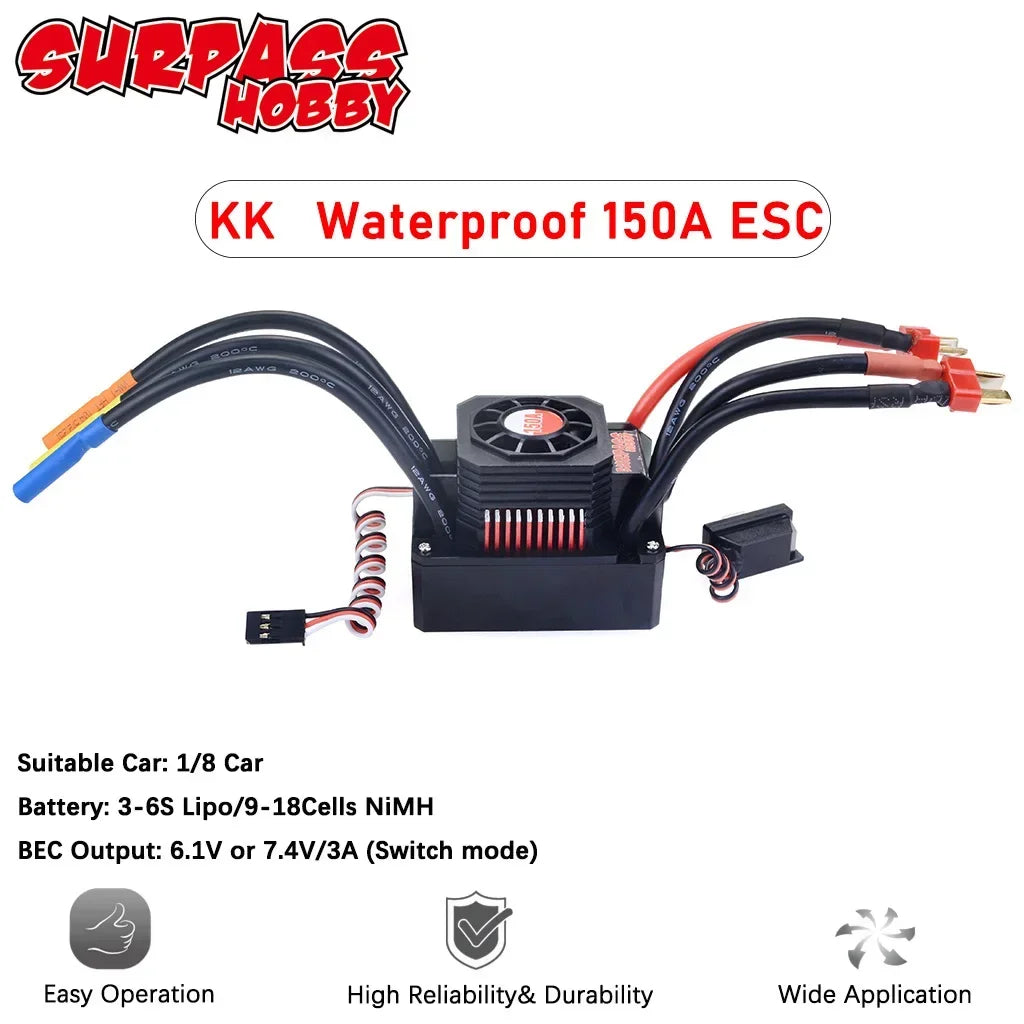

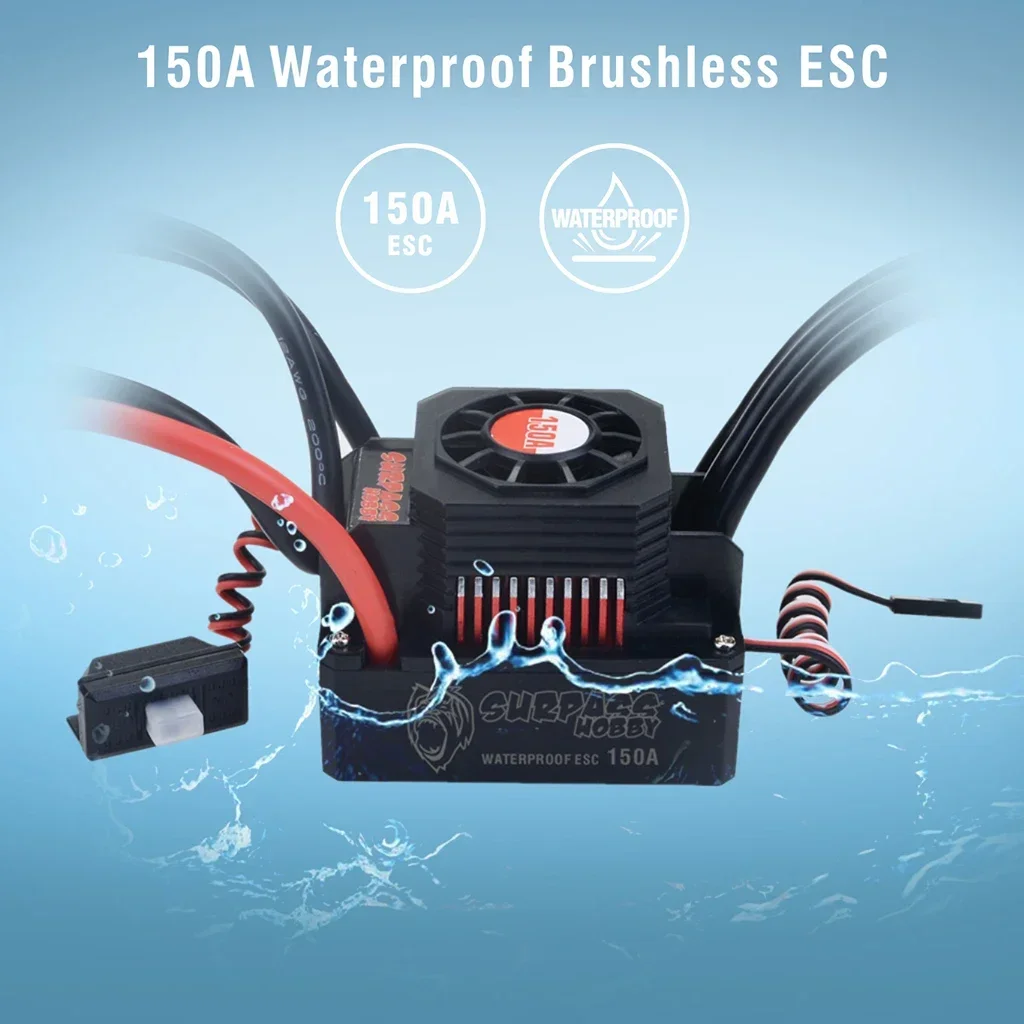

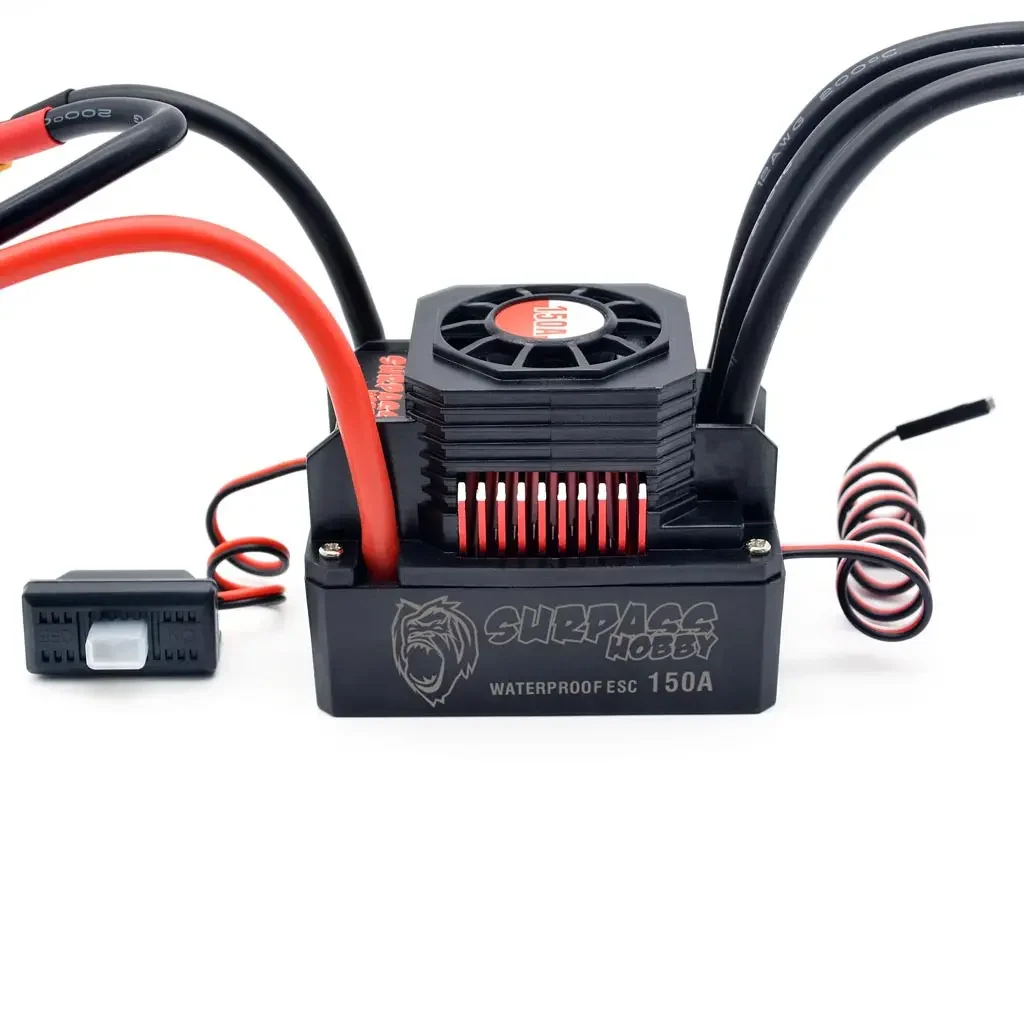

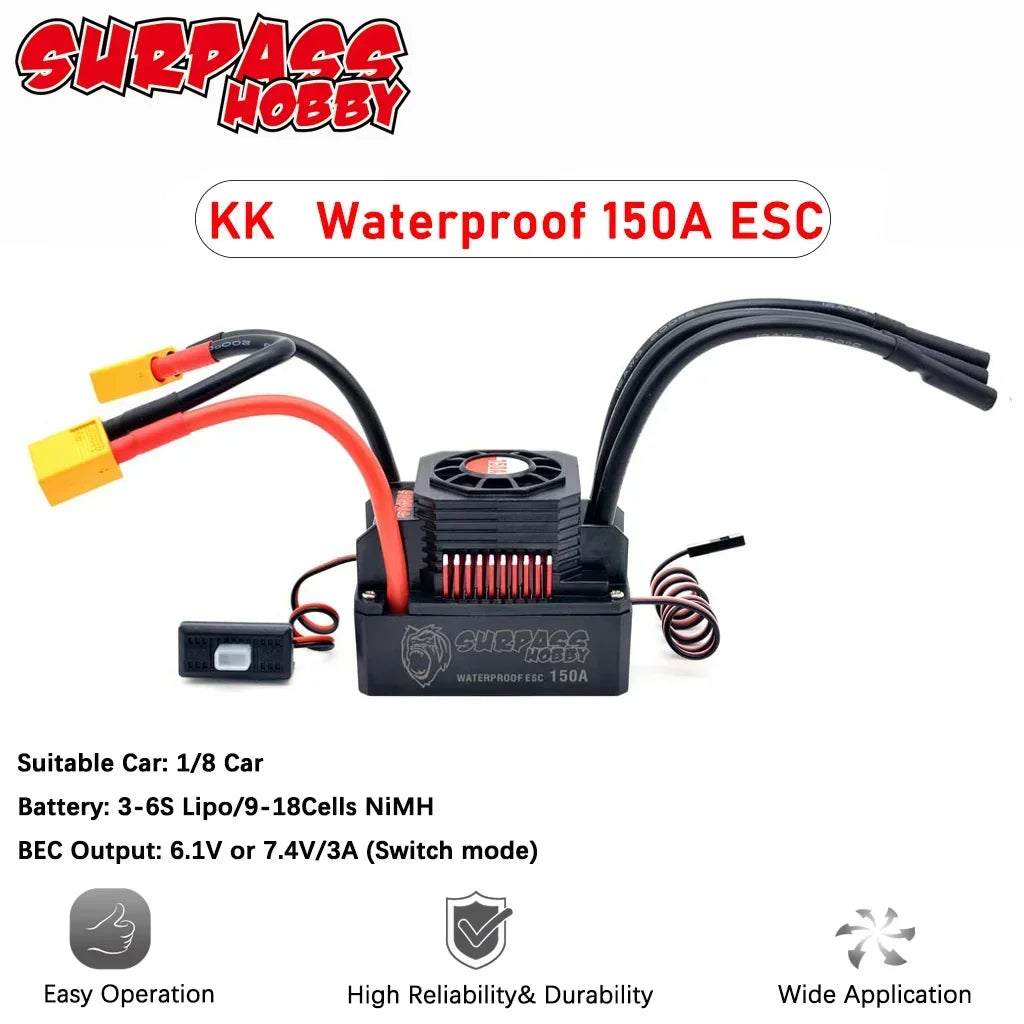

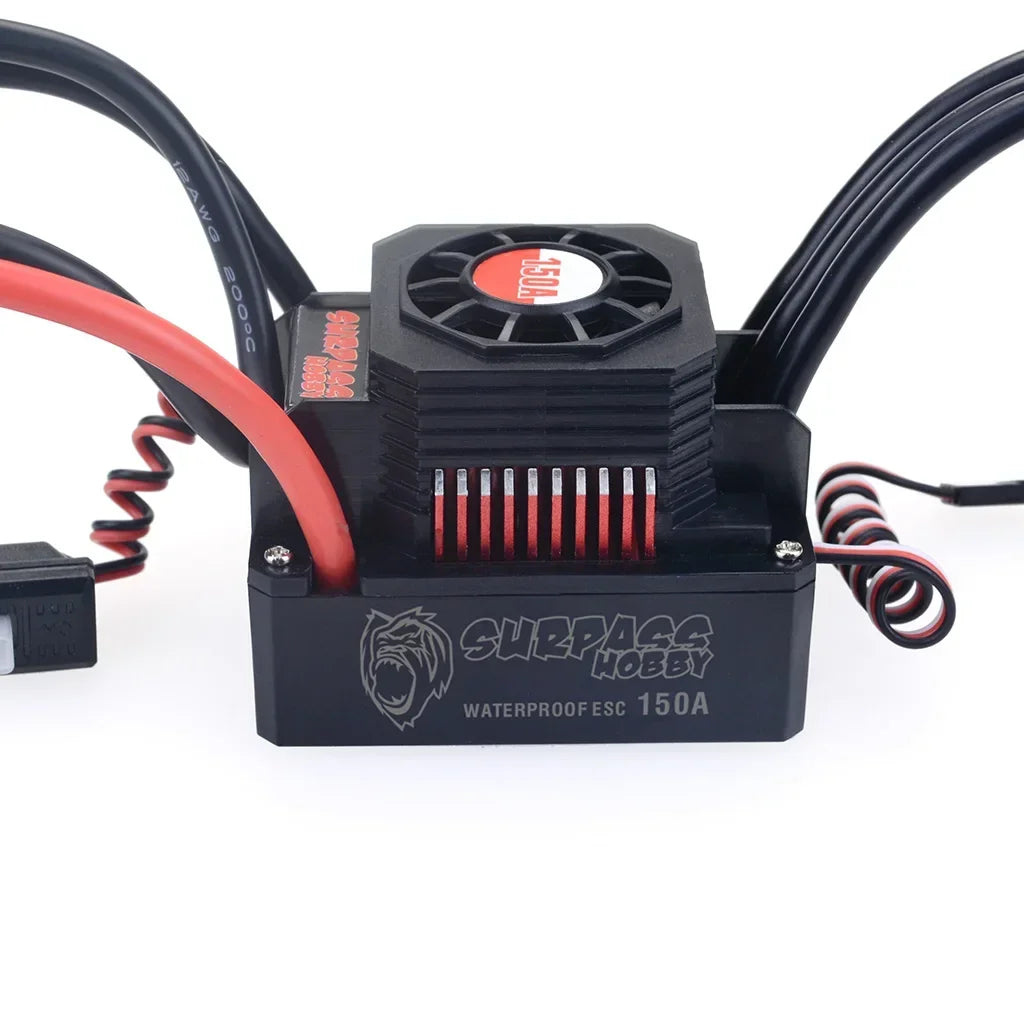

Name: KK 150A ESC
Cont.Current/Burst Current: 150A/720A
Motor Type: Sensorless Brushless Motor
for 4S Lipo or 12 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2500KV
for 6S Lipo or 18 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<2500KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2000KV
Suitable Car: 1/8 Car
Resistance: 0.0003ohm
Battery: 3-6S Lipo/9-18Cells NiMH
BEC Output: 6.1V or 7.4V/3A (Switch mode)
Dimensions/Weight: 160x100x62mm/148g

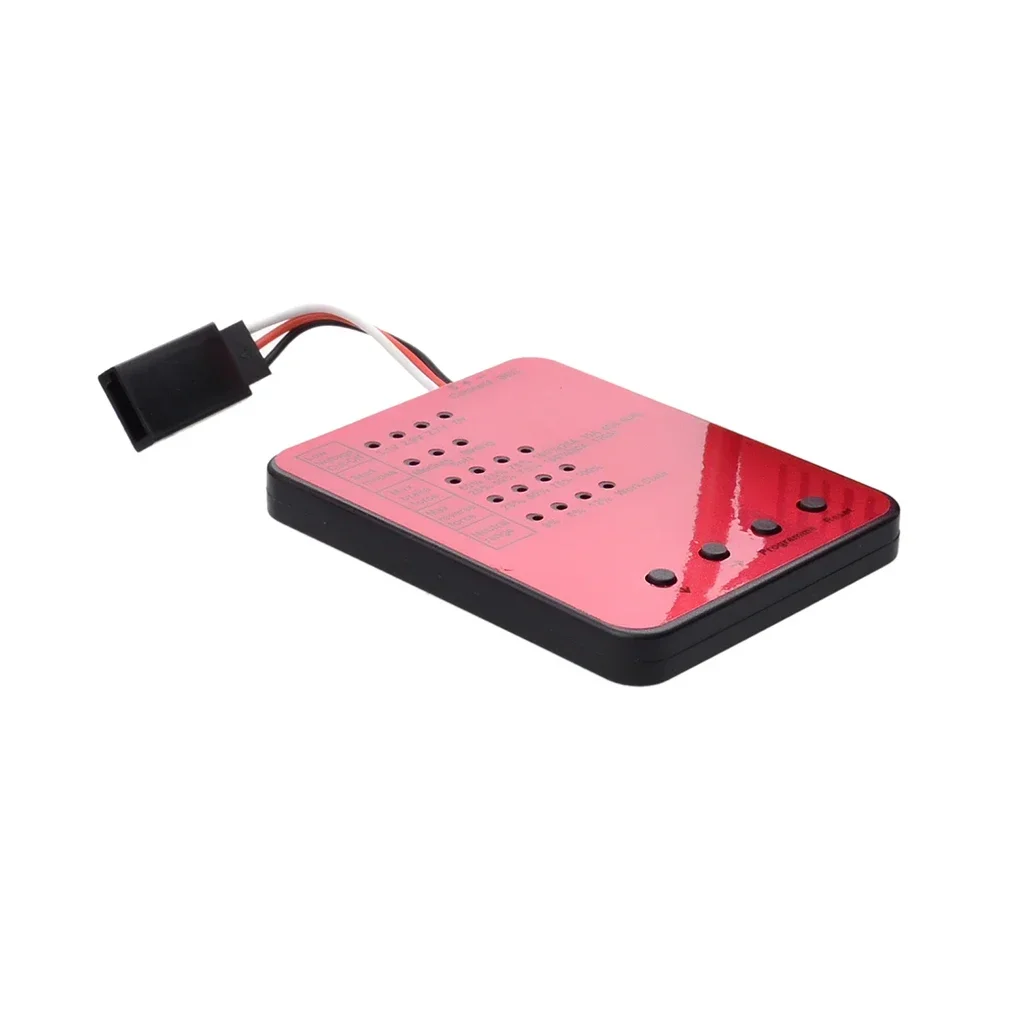

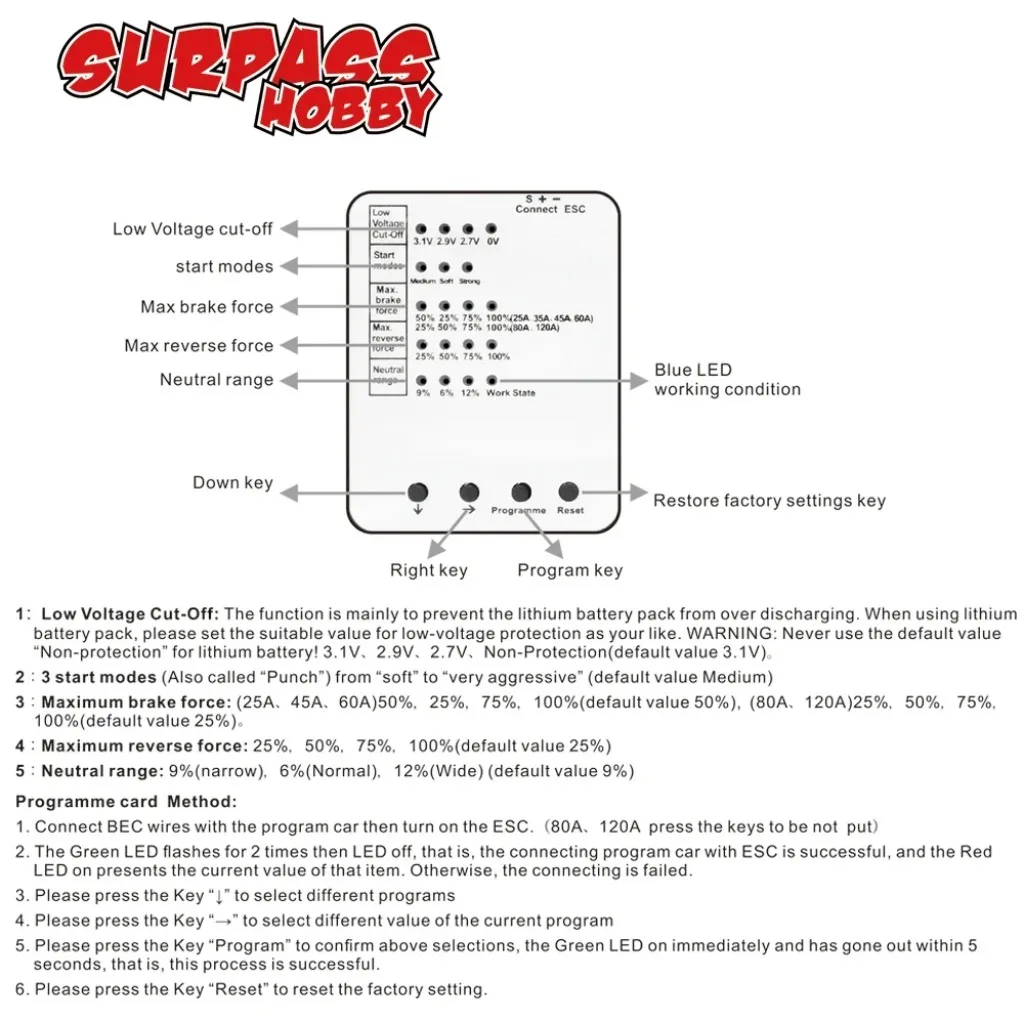

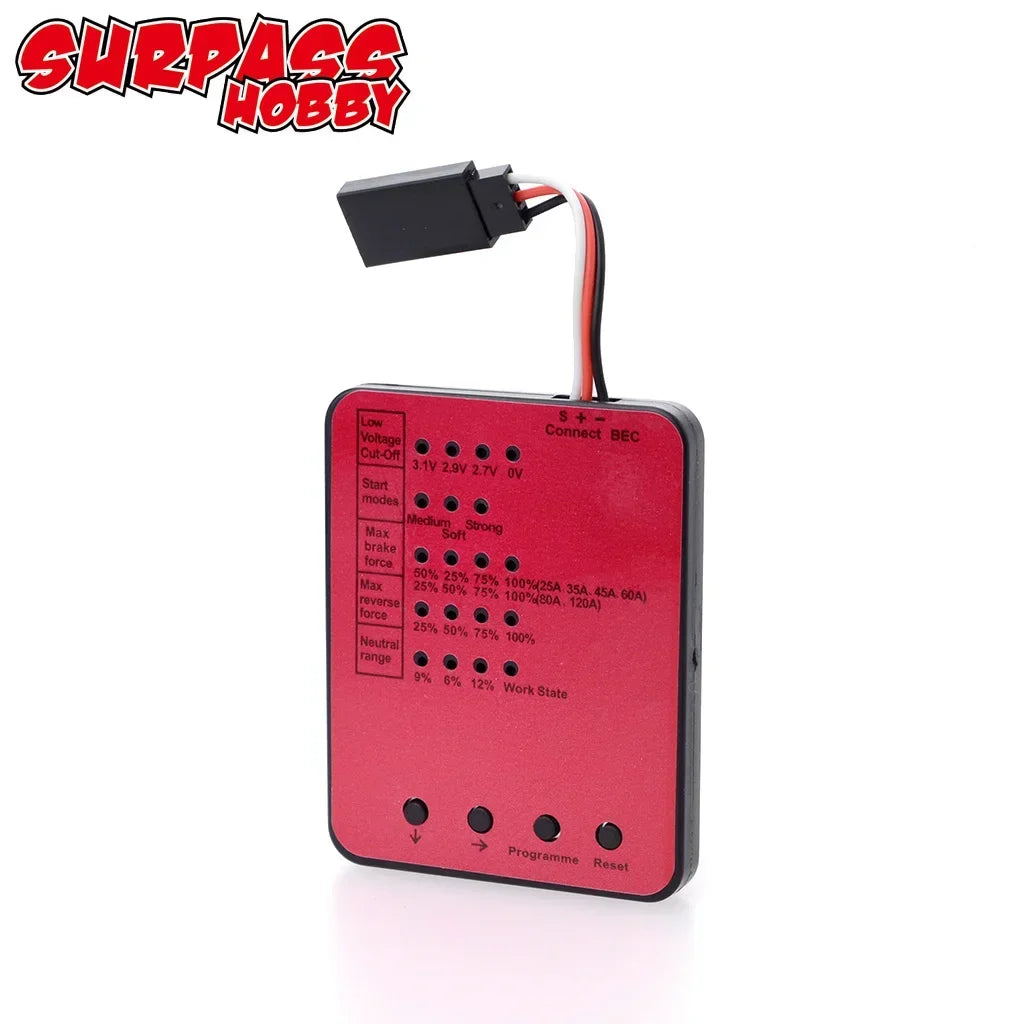

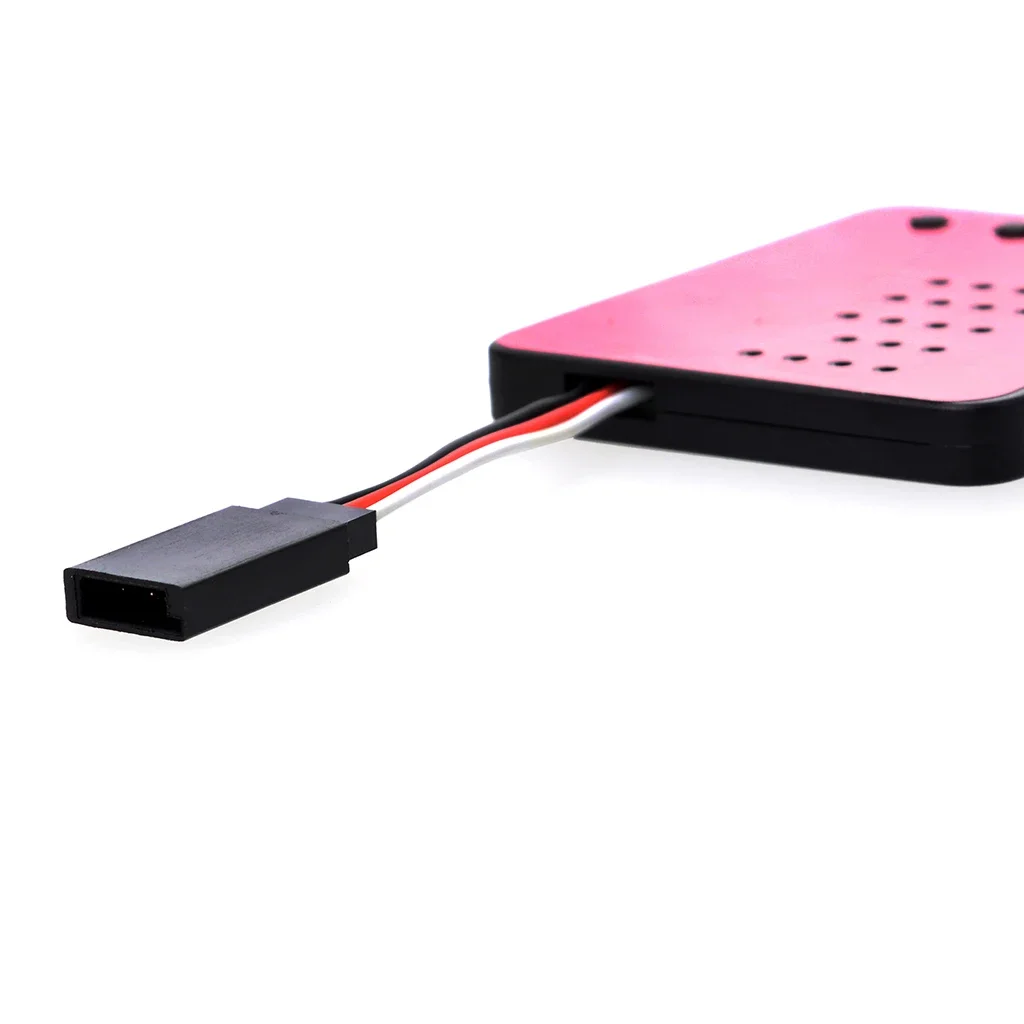

Item name: Programing Card
Low voltadge cut off voltadge: 3.1V/Cell 2.9V/Cell 2.7V/Cell No cut-off
Start mode:Medium soft strong
Max brake force: 25%,50%,75%,100%,
Max reverse force: 25%,50%,75%,100%,
Neutral range: 6%,9%,12%,work state
Item dimensions: 61 x 47 x 6mm (deviation due to manual measurement)
Item weight: 20g

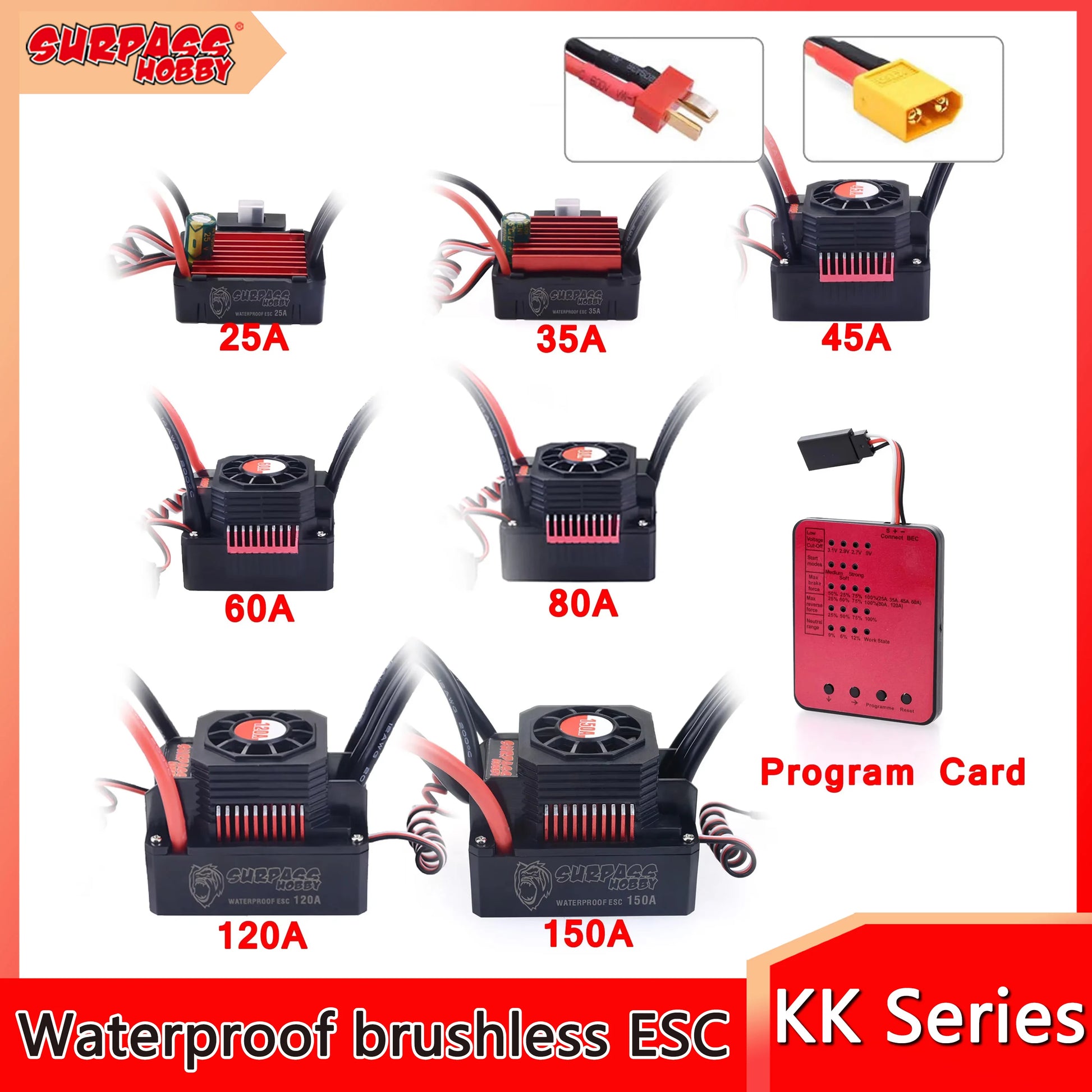

Suitfor: KK series 25/35/45/60A/80A/120A/150A ESC

Note:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!

Service:
1.If you encounter product problems, please contact us in time, and cooperate to provide product pictures or videos.
2.If you are satisfied with our service, we hope you can make us feel it.
