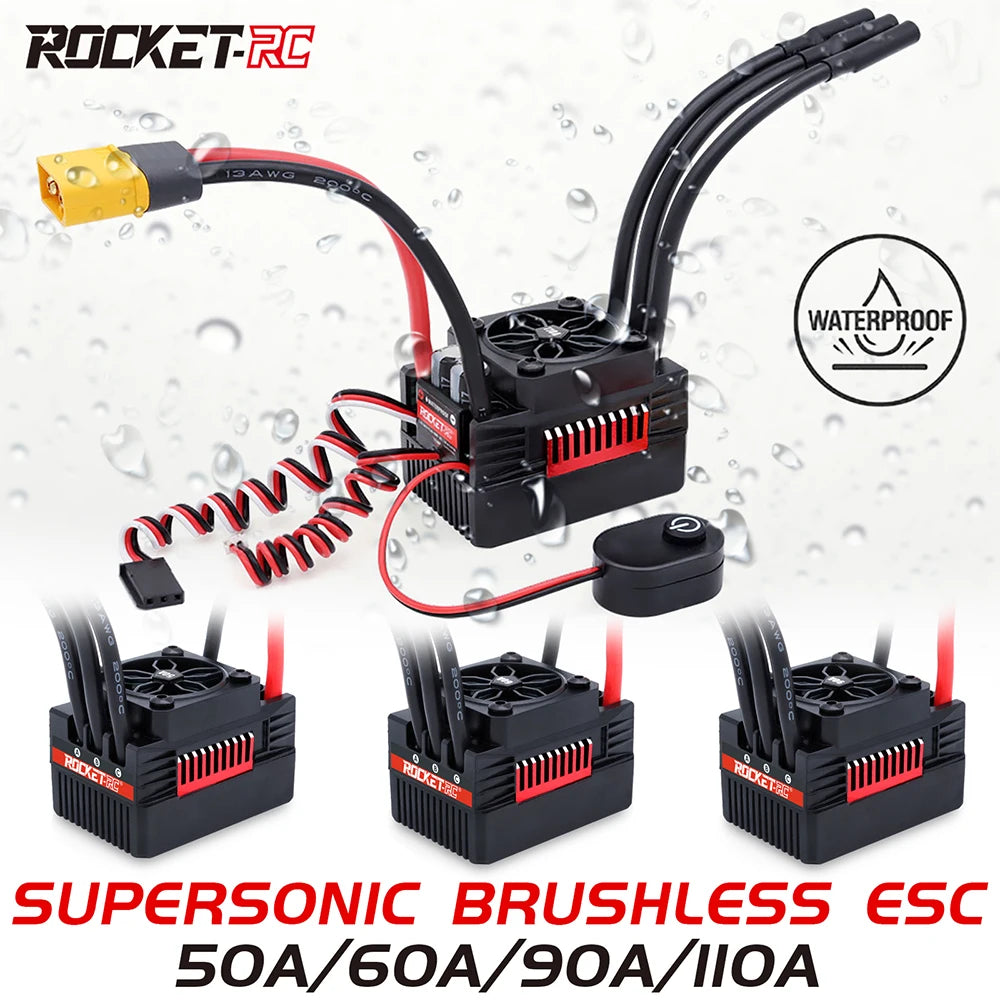

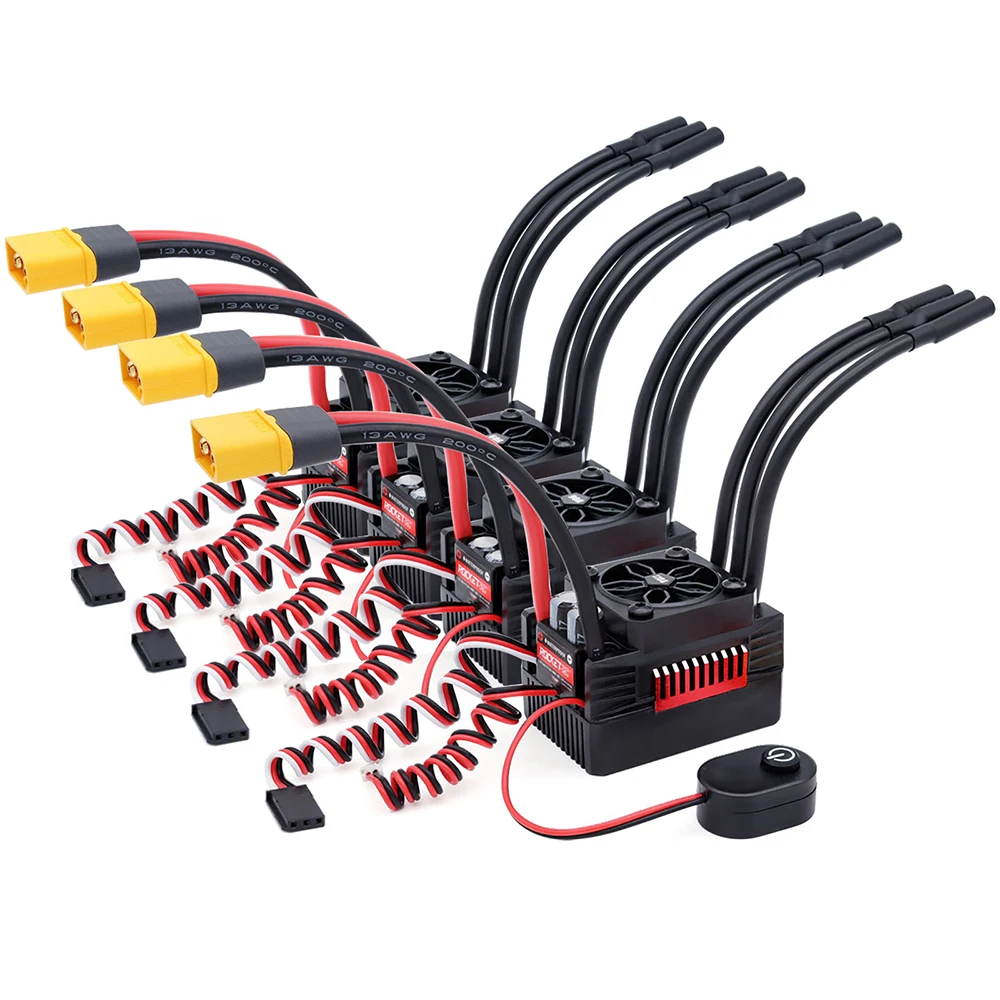

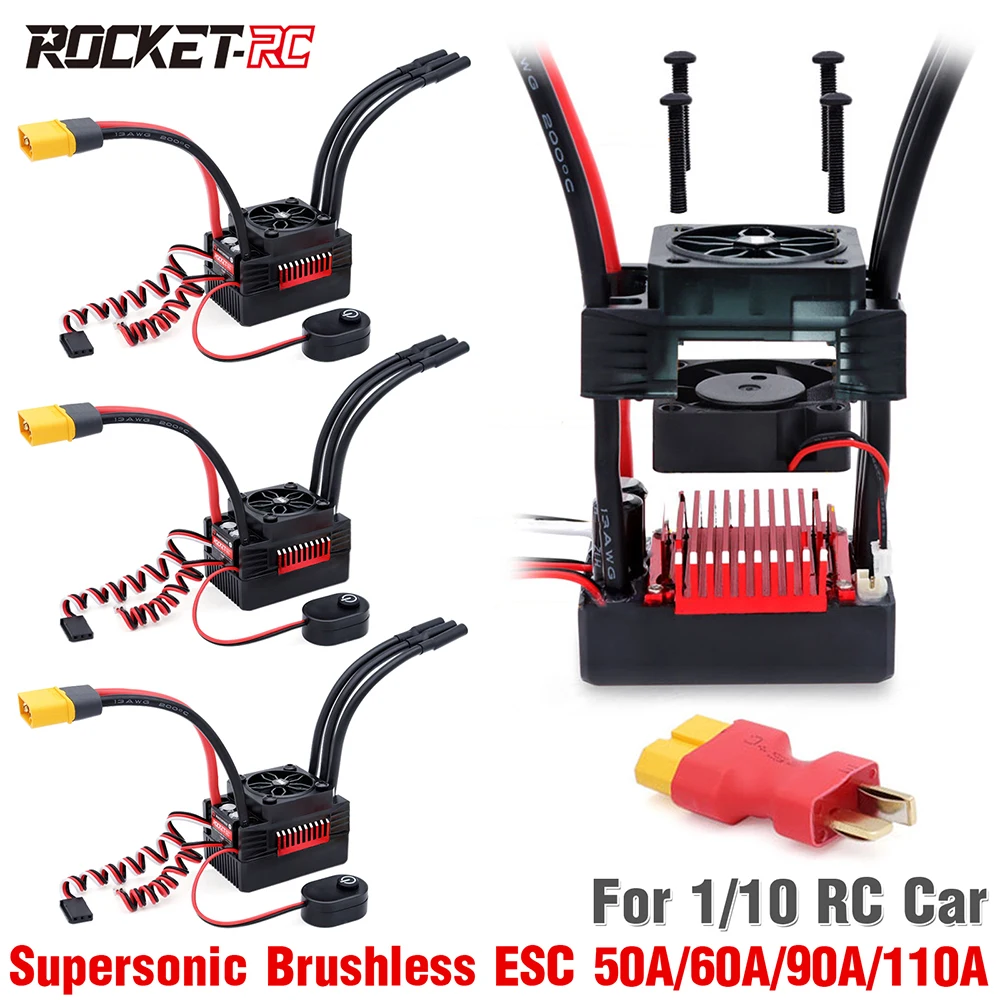

Rocket V2 Supersonic 50A 60A 90A 110A ESC Waterproof Brushless Speed Controller with 7.4V/8.4V 6A BEC for 3650 Motor 1:10 RC Car

Rocket V2 Supersonic 50A 60A 90A 110A ESC Waterproof Brushless Speed Controller with 7.4V/8.4V 6A BEC for 3650 Motor 1:10 RC Car

$35.77 USD
$62.41 USD $35.77 USD
Sale Sold out

SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Origin: Mainland China

Quantity: 1 pcs

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Use: Vehicles & Remote Control Toys

Rocket V2 Supersonic 50A 60A 90A 110A ESC Waterproof Brushless Speed Controller with 7.4V/8.4V 6A BEC for 3650 Motor 1:10 RC Car Parts

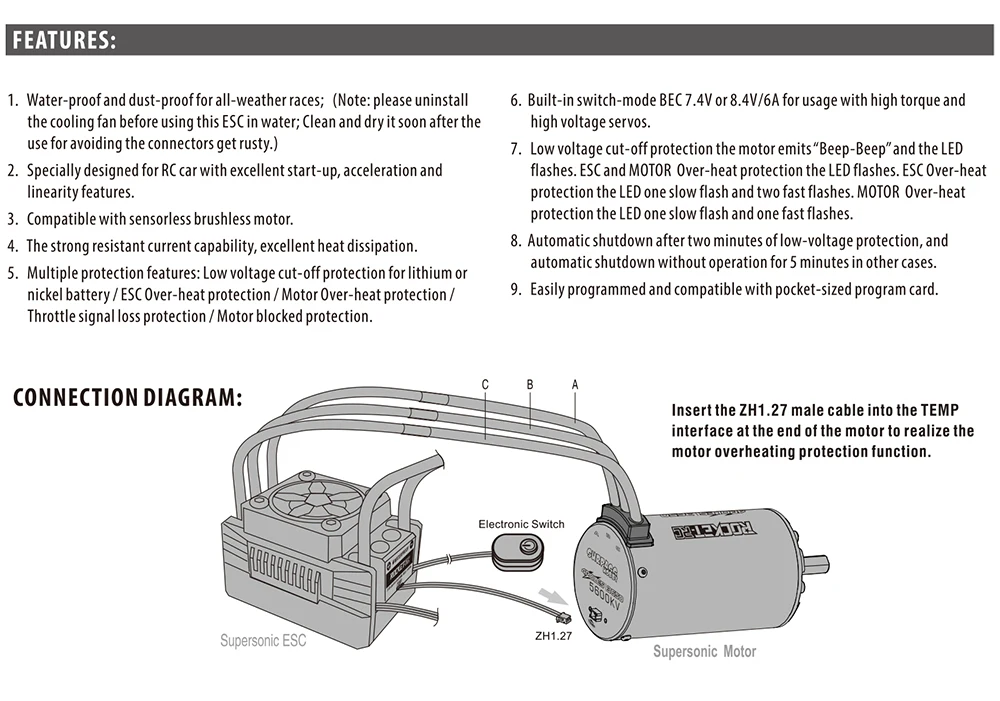

Features:

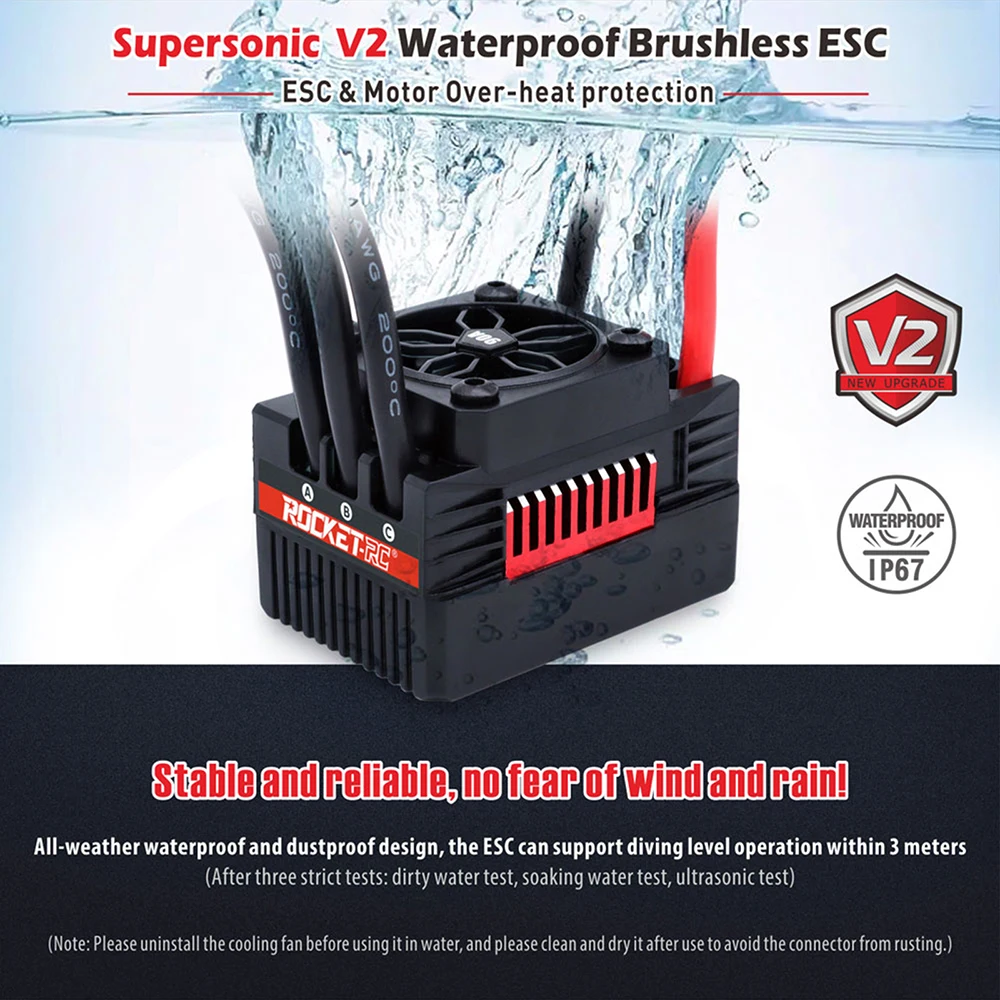

1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fanbefore using this ESC in water; Clean and dry it soon after the use for avoiding the
connectors get rusty.)
2.Specially designed for RC car with excellent start-up,acceleration and linearity features.
3.Compatible with sensorless brushless motor.
4.The strong resistant current capability, excellent heat dissipation.

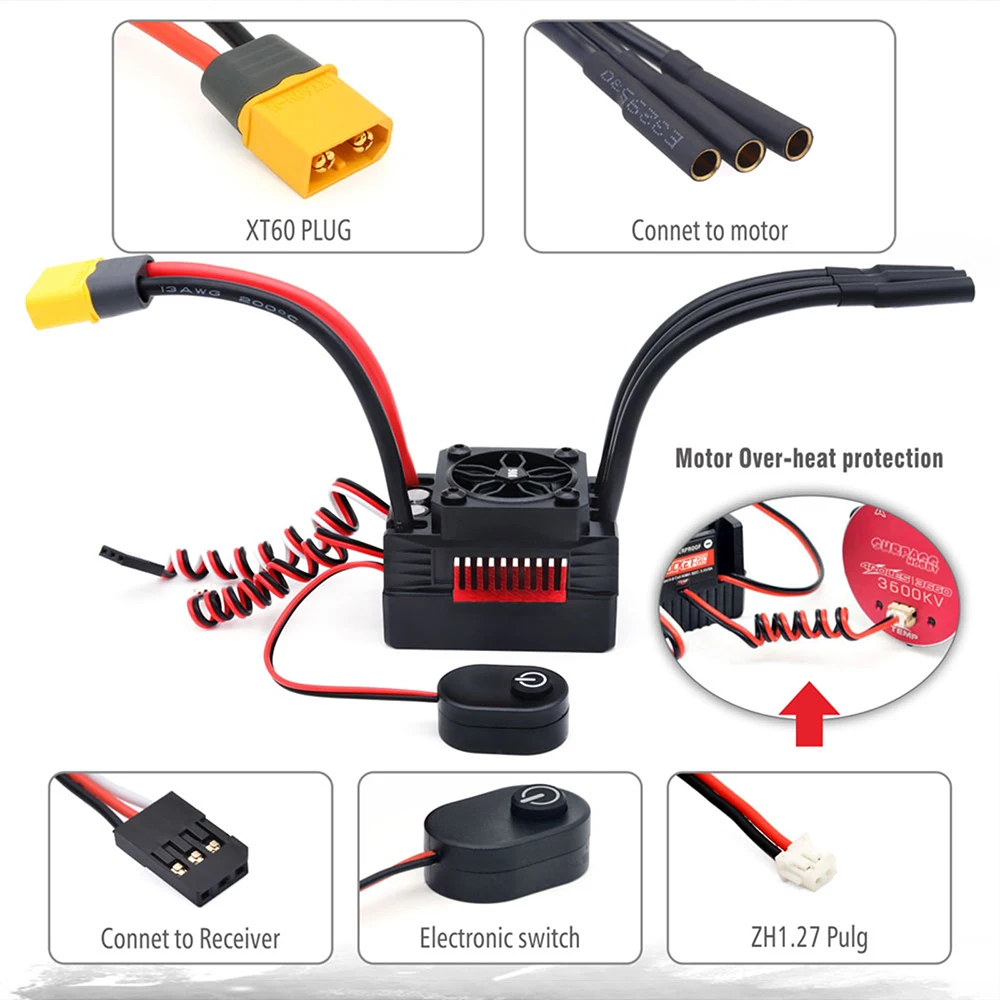

5.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/ESC Over-heat protection / Motor Over-heat protection/ Throttle signal loss protection/Motor blocked protection/

6.Built-in switch-mode BEC 7.4V/8.4V 6A for usage with high torque and high voltage servos.

7.Easily programmed and compatible with pocket-sized program card.


Descriptions:

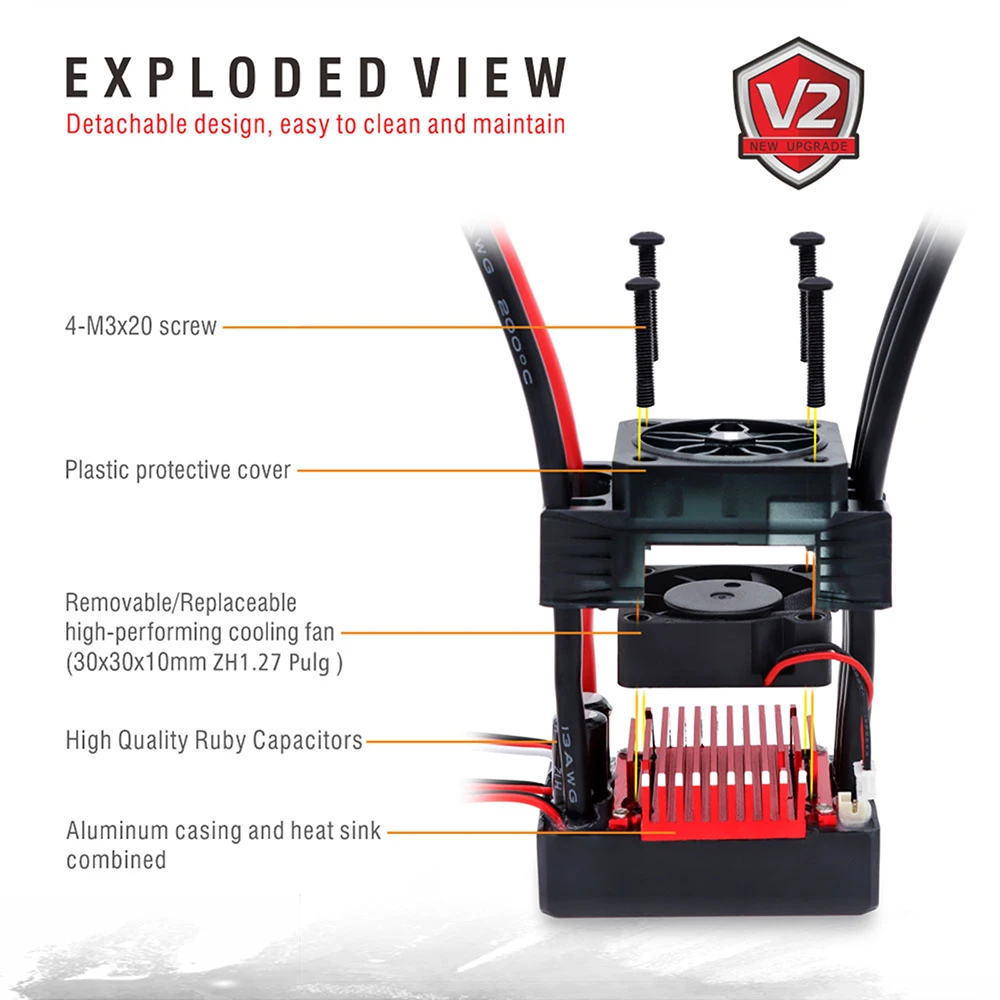

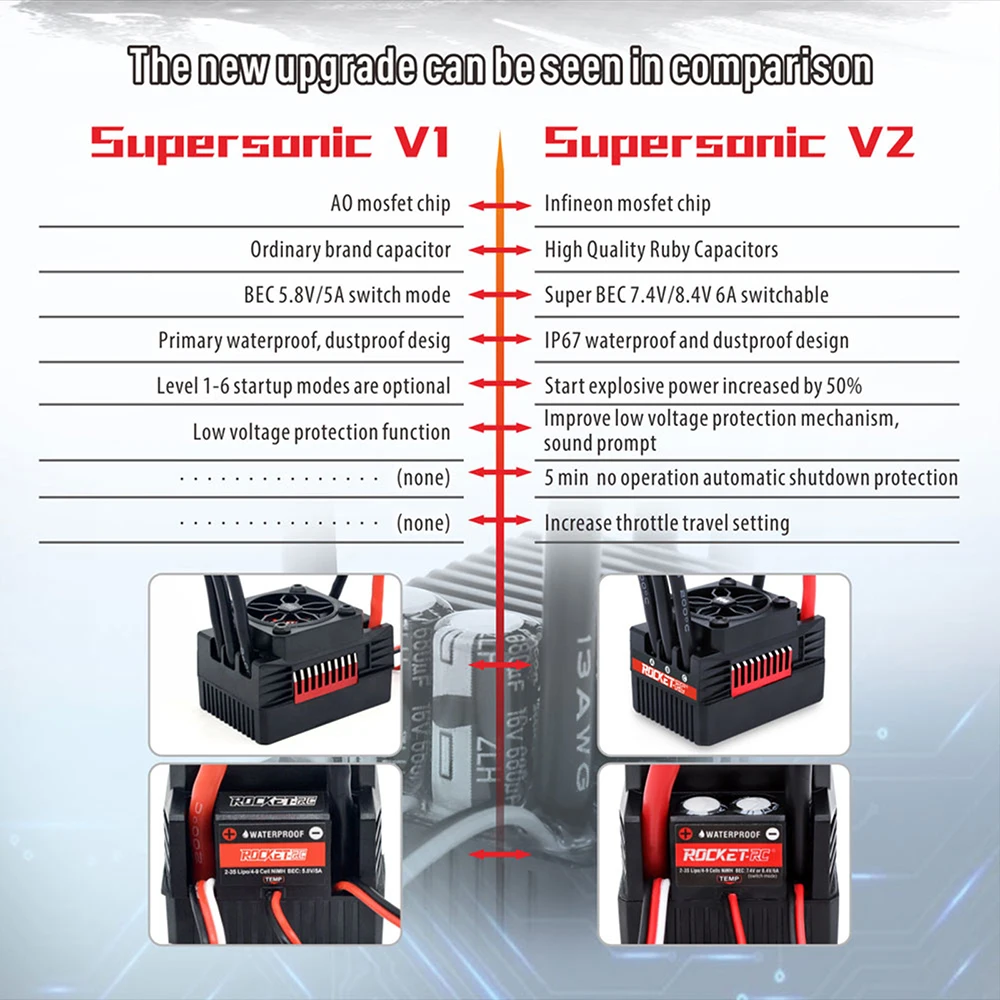

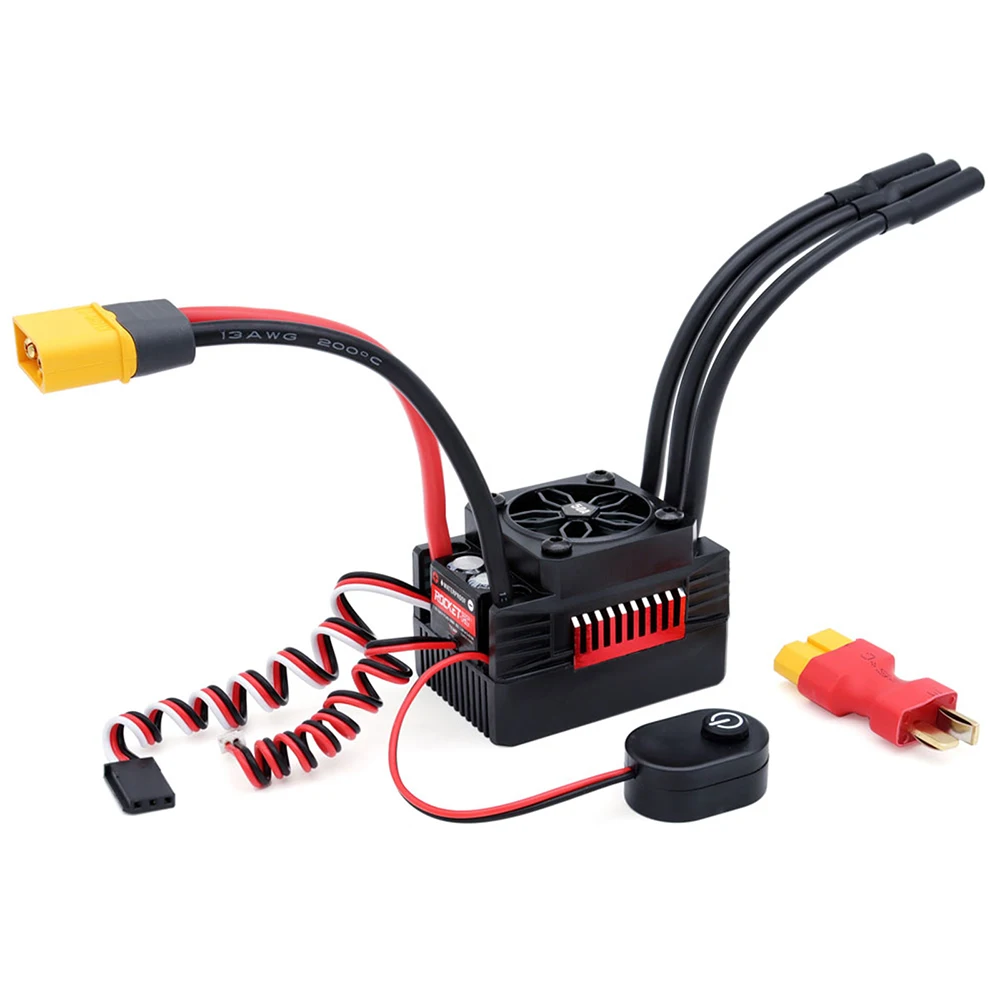

The Rocket V2 Supersonic Aluminum casing and heat-sink combined,and with cooling fan, Super good heat dissipation effect!

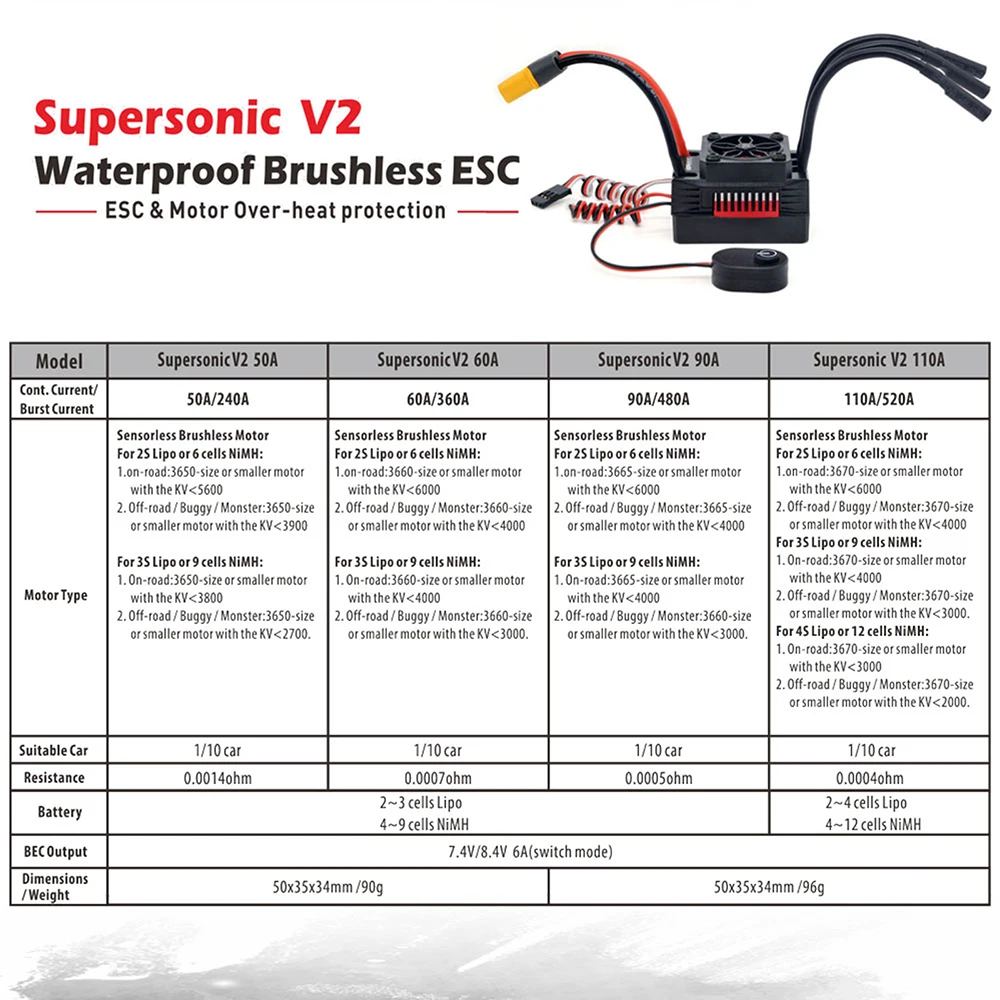

Specifications:
Brand:Rocket

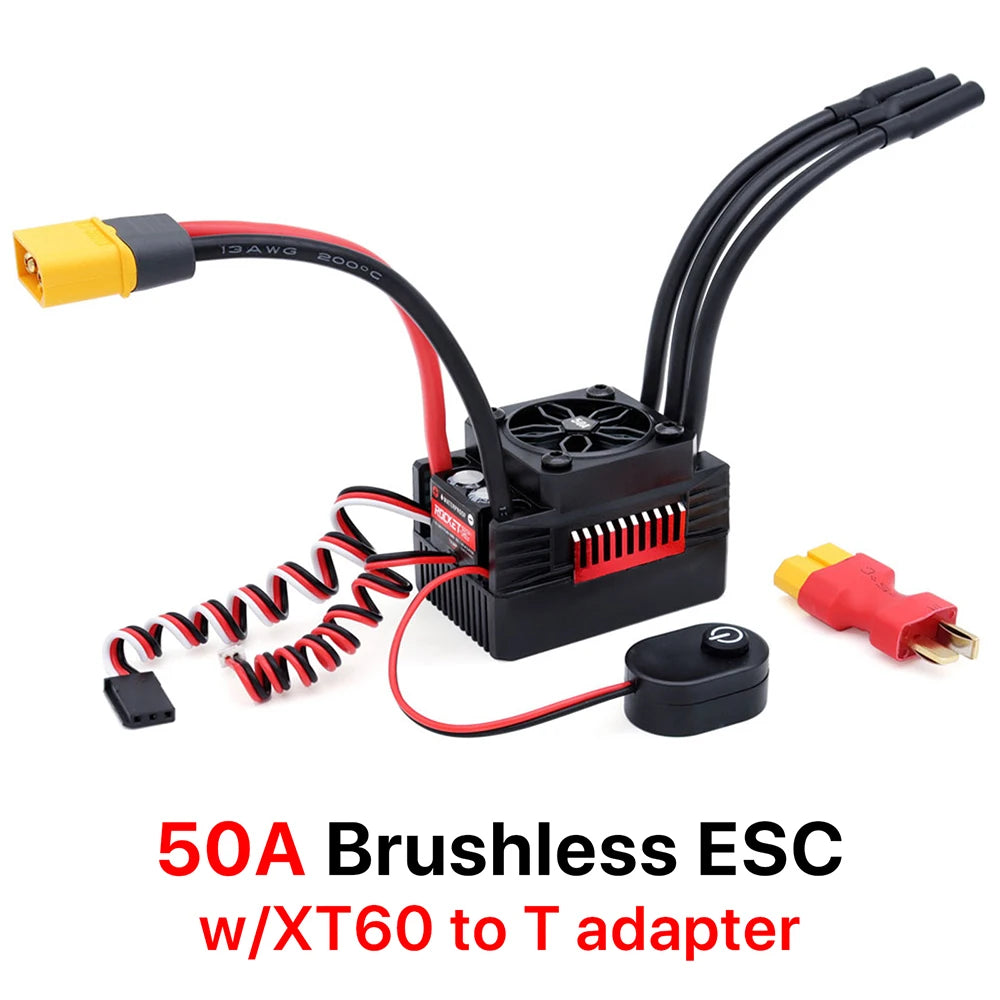

Supersonic 50A ESC

Cont.Current:50A
Burst Current:240A
Motor Type: for Sensorless Brushless Motor
For 2S Lipo or 6 cells NIMH :
1 . on-road : 3650-size or smaller motor with the KV < 5600
2 . Off-road / Buggy / Monster : 3650-size or smaller motor with the KV < 3900
For 3S Lipo or 9 cells NIMH :
1 . On-road : 3650-size or smaller motor with the KV < 3800
2 . Off-road / Buggy / Monster : 3650 -size or smaller motor with the KV < 2700.
Resistance: 0.0014ohm

Battery: 2S Lipo/4-9Cells NiMH


Supersonic 60A ESC
Cont.Current:60A
Burst Current:360A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NIMH :
1 . on-road : 3660-size or smaller motor with the KV < 6000
2 . Off-road / Buggy / Monster : 3660-size or smaller motor with the KV < 4000
For 3S Lipo or 9 cells NIMH :
1 . On-road : 3660-size or smaller motor with the KV < 4000
2 . Off-road / Buggy / Monster : 3660 -size or smaller motor with the KV < 3000.
Suitable for:1/10 Car
Resistance: 0.0007ohm
Battery: 2S Lipo/4-9Cells NiMH


Supersonic 90A ESC
Cont.Current:90A
Burst Current:480A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NIMH :
1 . on-road : 3670-size or smaller motor with the KV < 6000
2 . Off-road / Buggy / Monster : 3670-size or smaller motor with the KV < 4000
For 3S Lipo or 9 cells NIMH :
1 . On-road : 3670-size or smaller motor with the KV < 4000
2 . Off-road / Buggy / Monster : 3670 -size or smaller motor with the KV < 3000.
Suitable for:1/10 Car
Resistance: 0.0005ohm
Battery: 2-3S Lipo/4-9Cells NiMH


BEC Output: 7.4V/8.4V 6A (Switch mode)
Dimensions:50x35x32mm

Weight:81g


Supersonic 110A ESC

Cont.Current: 110A

Burst Current: 520A

Motor Type: for Sensorless Brushless Motor

For 2S Lipo or 6 cells NIMH:

1 . on-road: 3670-size or smaller motor with the KV < 6000

2 . Off-road / Buggy / Monster: 3650-size or smaller motor with the KV < 4000

For 3S Lipo or 9 cells NIMH:

1 . On-road: 3670-size or smaller motor with the KV < 4000

2 . Off-road / Buggy / Monster: 3650 -size or smaller motor with the KV < 3000.

For 4S Lipo or 12 cells NIMH:

1 . On-road: 3670-size or smaller motor with the KV < 3000

2 . Off-road / Buggy / Monster: 3650 -size or smaller motor with the KV < 2000.

Resistance: 0.0014ohm


Suitable Car: 1/10 RC car

Battery: 2-4S Lipo/4-12Cells NiMH

BEC Output: 7.4V/8.4V 6A(switch mode）

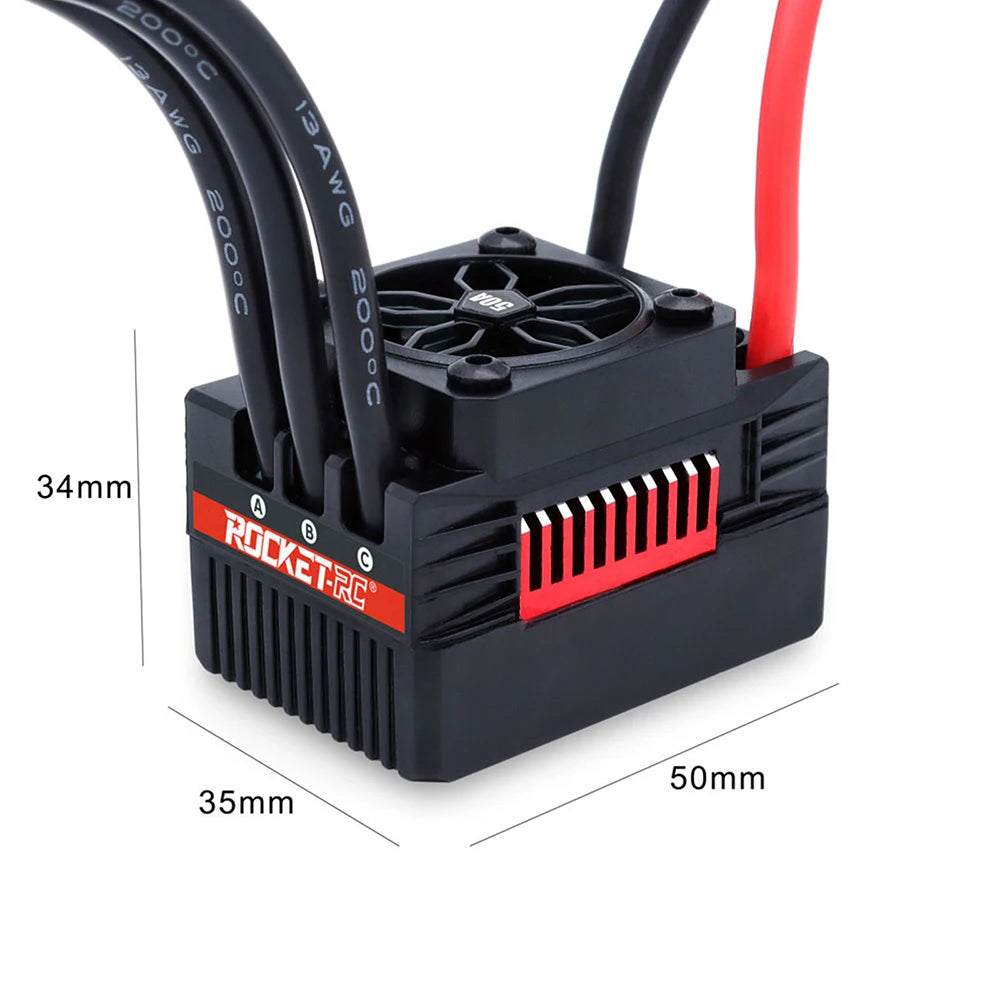

Size: 50x35x34mm

Weight: 81g















Package Included:
1 x Supersonic 50A/60A/90A/110 ESC (depends on your choice)
1 x English Manual

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
